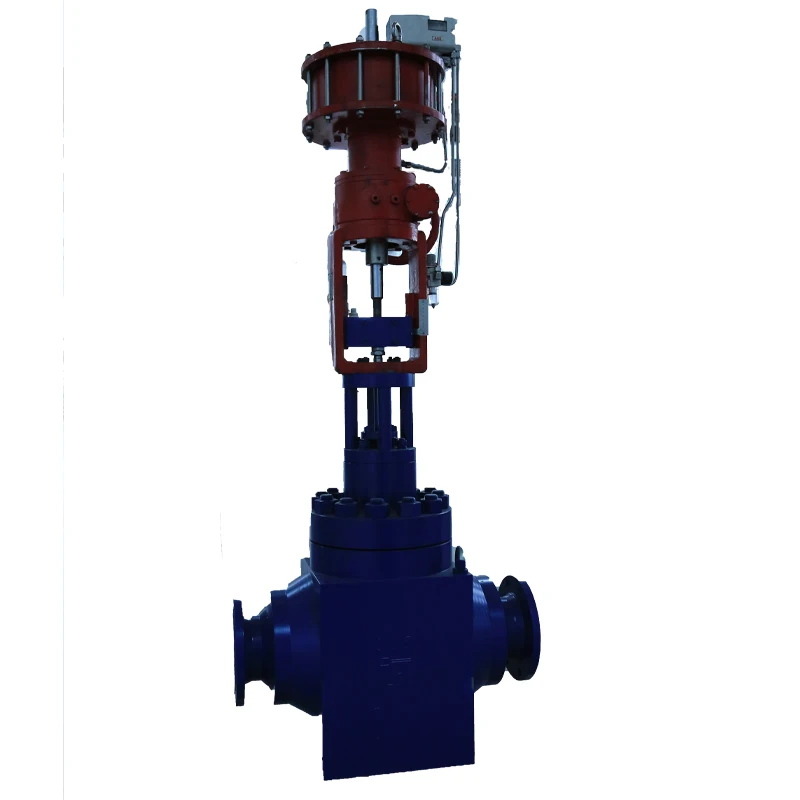

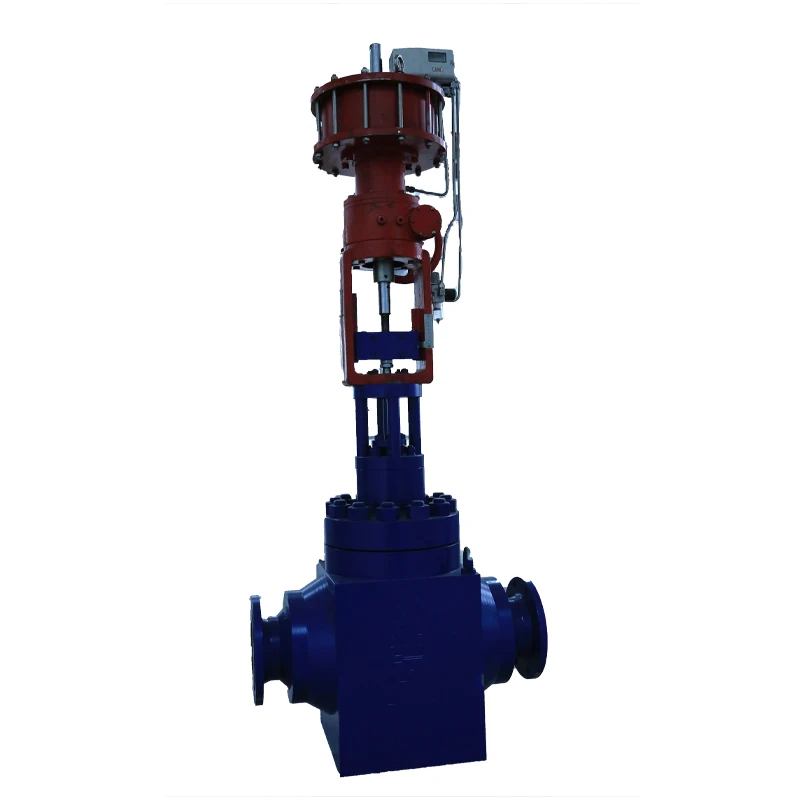

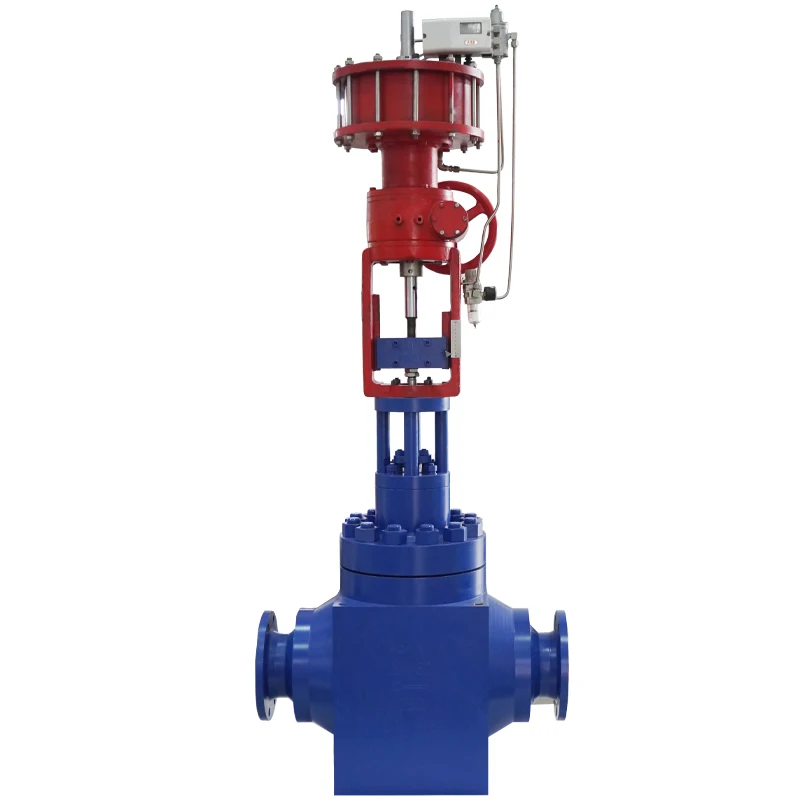

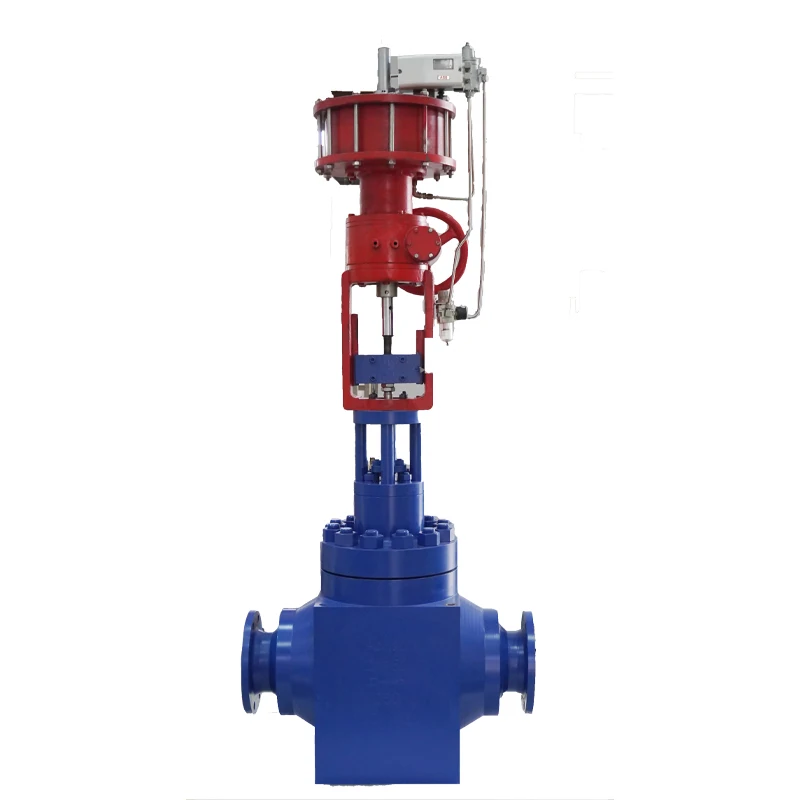

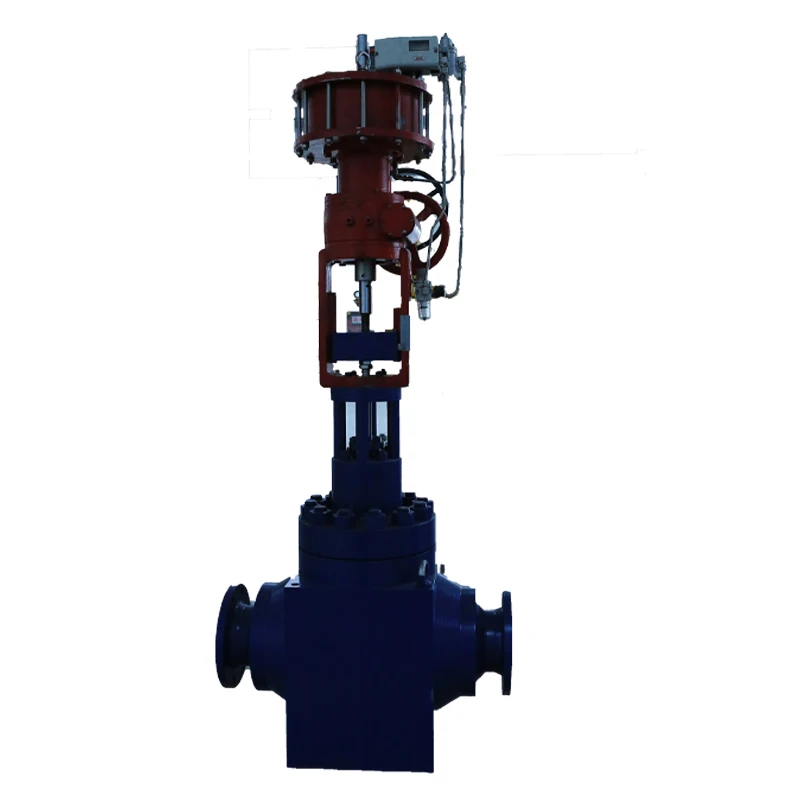

Large Flow Stable Operation Valve Control Fast Response Time Single-Seat Pneumatic Control Valve for Petrochemical Industry

Large Flow Stable Operation Valve Control Fast Response Time Single-Seat Pneumatic Control Valve for Petrochemical Industry - Advanced Flow Control Solution for Critical Applications

Introduction to Advanced Pneumatic Control Technology
In today's demanding petrochemical operations, precise flow control and reliable valve performance are paramount for maintaining optimal production efficiency. The Large Flow Stable Operation Single-Seat Pneumatic Control Valve represents a significant advancement in flow control technology, specifically engineered to meet the rigorous demands of modern petrochemical processing facilities. This innovative control valve combines robust construction with sophisticated pneumatic actuation to deliver exceptional performance in challenging industrial environments.

Superior Design and Engineering Excellence
Our Single-Seat Pneumatic Control Valve embodies decades of engineering expertise in fluid control systems. The valve's architecture incorporates advanced flow modeling and precision manufacturing techniques to ensure consistent performance under varying process conditions. By utilizing state-of-the-art materials and engineering principles, this control valve maintains stability even during high-flow operations, making it an ideal choice for critical petrochemical applications where reliability cannot be compromised.

Advanced Flow Control Characteristics
The unique design of our Large Flow Stable Operation Valve incorporates sophisticated flow passage geometry that optimizes fluid dynamics. This results in superior control characteristics across a wide range of operating conditions, while minimizing turbulence and reducing wear on critical components. The carefully engineered flow paths ensure precise control even during partial load operations, contributing to enhanced process stability and reduced maintenance requirements.

Features and Performance Benefits
The Single-Seat Pneumatic Control Valve showcases multiple innovative features that set it apart in the petrochemical industry. The responsive pneumatic actuation system provides precise control with minimal delay, ensuring rapid adjustments to changing process conditions. This quick response capability is particularly valuable in applications where timing and accuracy are critical for maintaining product quality and process efficiency.

Enhanced Stability and Reliability
The valve's robust construction and balanced design contribute to exceptional stability during operation. The single-seat configuration reduces the potential for leakage while maintaining precise control over flow rates. Advanced sealing technology ensures long-term reliability and minimal maintenance requirements, while the pneumatic control system provides consistent performance even under challenging operating conditions.

Industry Applications and Process Integration
This advanced control valve excels in various petrochemical applications, from basic chemical processing to complex refining operations. Its versatile design makes it suitable for controlling the flow of various media, including aggressive chemicals and high-temperature fluids. The valve's ability to maintain stable operation under varying process conditions makes it an excellent choice for critical control points in production lines.

Petrochemical Processing Excellence
In petrochemical facilities, where precise flow control directly impacts product quality and plant safety, our Single-Seat Pneumatic Control Valve demonstrates exceptional reliability. The valve's design accommodates the specific requirements of different processes, ensuring optimal performance across various applications within the petrochemical industry.

Quality Assurance and Compliance Standards
Every Large Flow Stable Operation Valve undergoes comprehensive testing and quality control procedures. Our manufacturing processes adhere to international standards and industry-specific requirements, ensuring consistent quality and reliability. Contact our technical team for detailed information about applicable certifications and compliance documentation.

Customization Options and Technical Support
Understanding that each application has unique requirements, we offer extensive customization options for our pneumatic control valves. Our engineering team works closely with clients to optimize valve specifications based on specific process parameters and operational requirements. Reach out to discuss your particular application needs and explore customization possibilities.

Installation and Maintenance Support
We provide comprehensive support throughout the valve's lifecycle, from initial installation guidance to ongoing maintenance recommendations. Our technical experts can assist with integration planning and offer advice on optimal operating parameters for maximum efficiency and longevity.

Global Service and Partnership Commitment
As a leading provider of flow control solutions, we maintain a strong global presence with dedicated support networks. Our commitment extends beyond product delivery to ensuring long-term satisfaction through responsive service and technical assistance. Partner with us for reliable, high-performance flow control solutions backed by expert support.

Contact and Consultation
To explore how our Large Flow Stable Operation Single-Seat Pneumatic Control Valve can enhance your petrochemical operations, connect with our specialized technical team. We're ready to discuss your specific requirements and provide detailed information about performance capabilities, customization options, and implementation strategies. Let us help you optimize your flow control systems with our advanced valve technology.

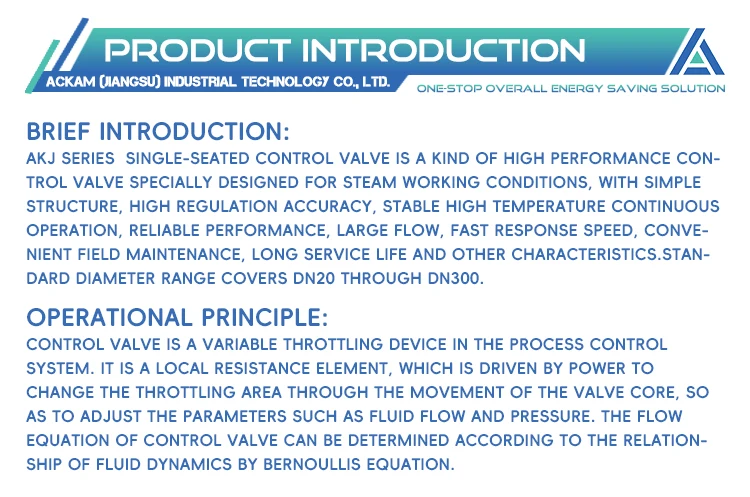

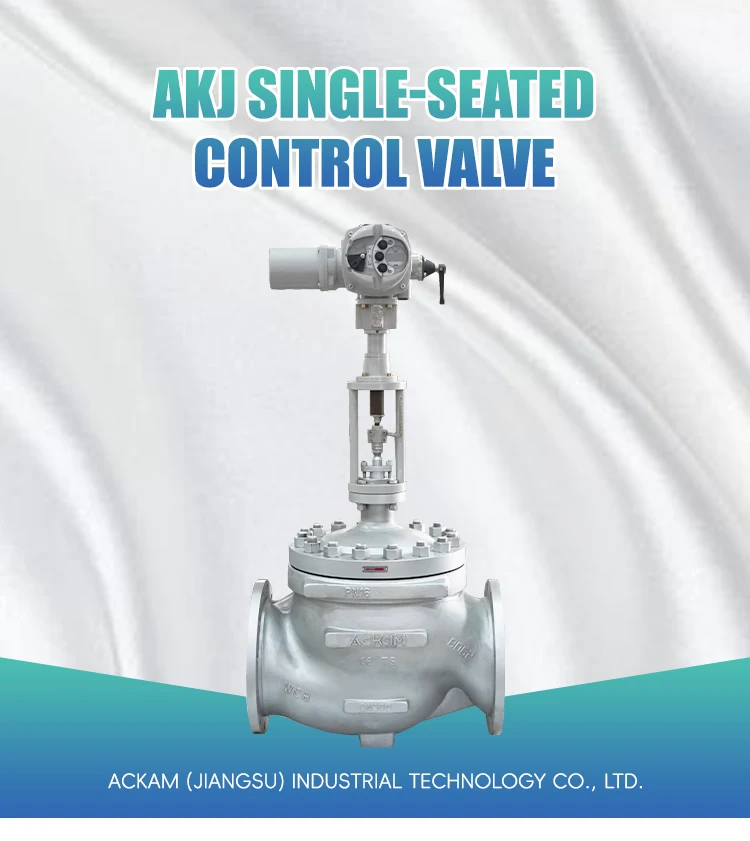

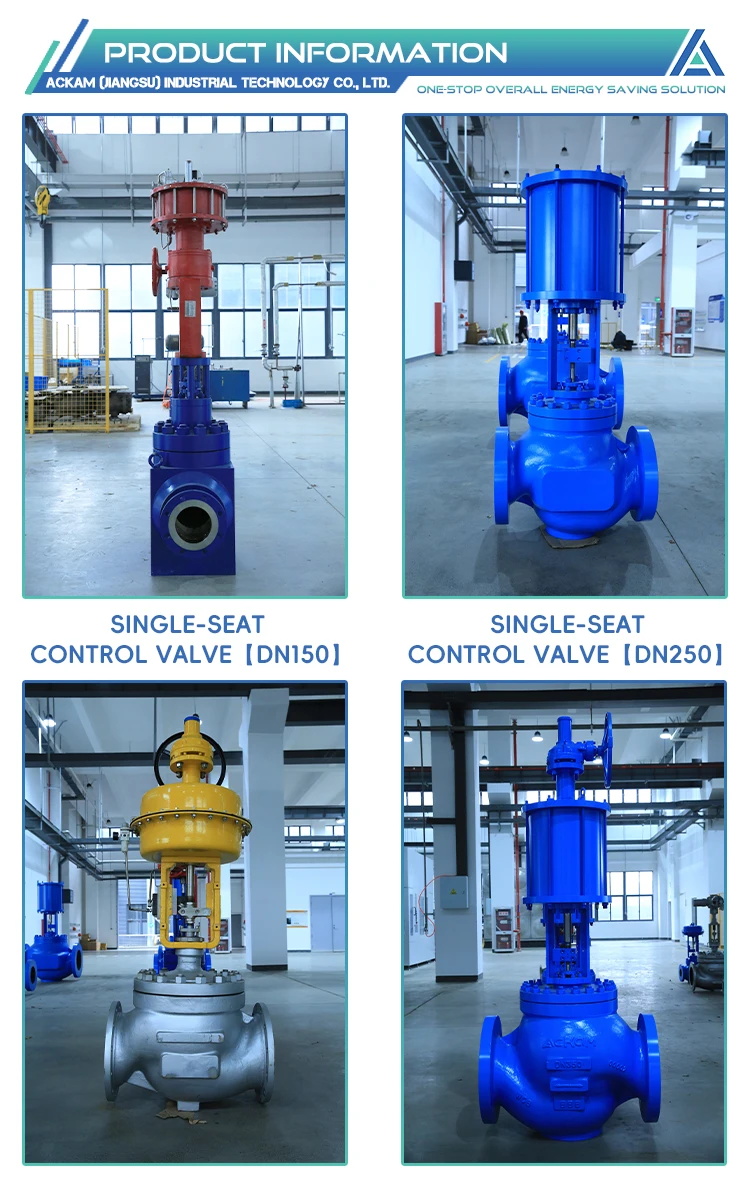

BRIEF INTRODUCTION: AKJ SERIES SINGLE-SEATED CONTROL VALVE IS A KIND OF HIGH PERFORMANCE CON-TROL VALVE SPECIALLY DESIGNED FOR STEAM WORKING CONDITIONS, WITH SIMPLE STRUCTURE, HIGH REGULATION ACCURACY, STABLE HIGH TEMPERATURE CONTINUOUS OPERATION,RELIABLE PERFORMANCE, LARGE FLOW, FAST RESPONSE SPEED, CONVE-NIENT FIELD MAINTENANCE, LONG SERVICE LIFE AND OTHER CHARACTERISTICS.STAN-DARD DIAMETER RANGE COVERS DN20 THROUGH DN300. OPERATIONAL PRINCIPLE: CONTROL VALVE IS A VARIABLE THROTTLING DEVICE IN THE PROCESS CONTROL SYSTEM. IT IS A LOCAL RESISTANCE ELEMENT, WHICH IS DRIVEN BY POWER TO CHANGE THE THROTTLING AREA THROUGH THE MOVEMENT OF THE VALVE CORE, SO AS TO ADJUST THE PARAMETERS SUCH AS FLUID FLOW AND PRESSURE. THE FLOW EQUATION OF CONTROL VALVE CAN BE DETERMINED ACCORDING TO THE RELATION- SHIP OF FLUID DYNAMICS BY BERNOULLIS EQUATION.

DN20-DN150 ANSI150/PN16/PN25/PN40/ANSI300 (with pneumatic actuator)
valve	DN			20	25	40	50	80	100	150
		L	ANSI150	184	184	222	254	298	352	451
				PN16	194	197	235	254	298	352	451
				PN25	194	197	235	267	318	368	473
				PN40	194	197	235	267	318	368	473
				ANSI300	194	197	235	267	318	368	473
		H1			56	56	74	77	108	139	175
		H2	＜299℃	80	80	136	174	188	214	260
				≥299℃	80	80	201	239	278	304	355
Execution Agency	φA	DM2	272											-
				DM3	-							400
		H3 (without handwheel)	DM2	408											-
				DM3	-							640
		H3 (with hand wheel)	DM2	590											-
				DM3	-							960
Valve + actuator Weight is approximately (Kg) (without handwheel)			DM2	35	36	42	47	75	106	-
				DM3	-							129	153	202
Valve + actuator Weight is approximately (Kg) (with handwheel)			DM2	42	43	49	54	82	113	-
				DM3	-							141	165	214
Note: The weight is the weight of ANSI300 series valve body + actuator

DN20-DN150 ANSI150/PN16/PN25/PN40/ANSI300 (with electric actuator)
valve	DN			20	25	40	50	80	100	150
		L	ANSI150	184	184	222	254	298	352	451
				PN16	194	197	235	254	298	352	451
				PN25	194	197	235	267	318	368	473
				PN40	194	197	235	267	318	368	473
				ANSI300	194	197	235	267	318	368	473
		H1			56	56	74	77	108	139	175
		H2	＜299℃	80	80	136	174	188	214	260
				≥299℃	80	80	201	239	278	304	355
Execution Agency	φA	E200L-A50	177											-
				E200L-B50	177											-
				E200L-C50	177											-
				E200L-D50	177											-
				E200L-E65	-							180
				E200L-F100	-							250
		H3	E200L-A50	504											-
				E200L-B50	504											-
				E200L-C50	544											-
				E200L-D50	544											-
				E200L-E65	-							613
				E200L-F100	-							770
Valve + actuator weight (kg)			E200L-A50	16.5	17	25	27	60	83	-
				E200L-B50	18.5	19	27	29	64	87	-
				E200L-C50	24.5	25	33	35	72	95	-
				E200L-D50	28.5	29	37	39	76	99	-
				E200L-E65	-	-	-	-	81	104	168
				E200L-F100	-	-	-	-	86	109	173
Note: The weight is the weight of ANSI300 series valve body + actuator
