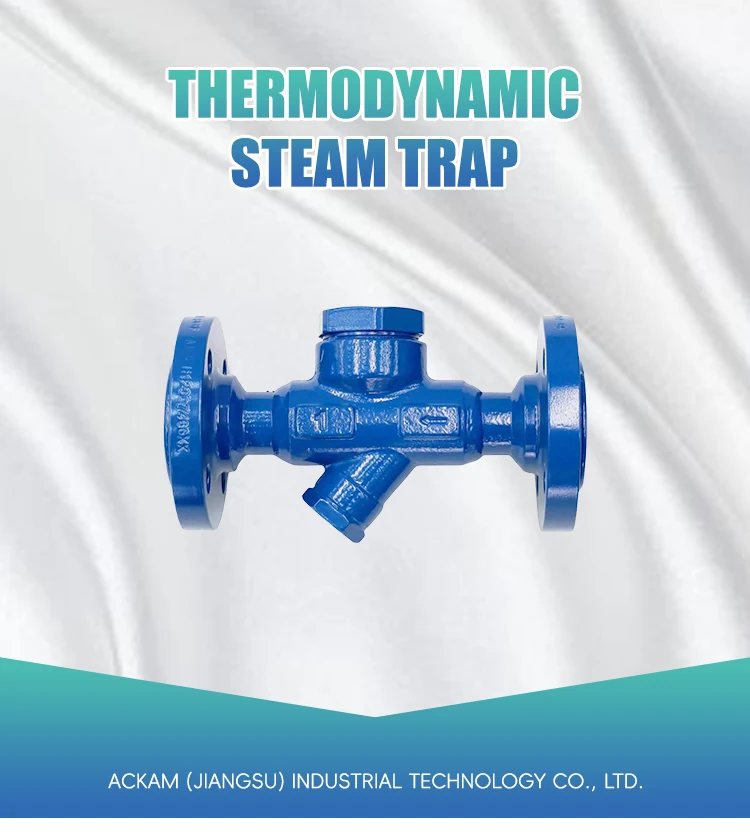

Long Service Life Steam Trap Valve Self-Cleaning Performance Durable Thermodynamic Steam Trap

Long Service Life Steam Trap Valve Self-Cleaning Performance Durable Thermodynamic Steam Trap - Advanced Steam System Solution

Introduction
The Long Service Life Steam Trap Valve represents a significant advancement in steam system management technology. This thermodynamic steam trap combines innovative self-cleaning capabilities with exceptional durability to deliver superior performance in demanding industrial applications. Engineered to meet the evolving needs of modern steam systems, this robust solution helps facilities maintain optimal operational efficiency while reducing maintenance requirements and system downtime.

Product Overview
Our thermodynamic steam trap employs cutting-edge design principles to effectively manage condensate removal while preventing live steam loss. The self-cleaning performance feature sets this steam trap apart from conventional options, ensuring consistent operation even in challenging environmental conditions. The valve's sophisticated internal geometry facilitates smooth condensate discharge while maintaining the integrity of the steam system.

Advanced Thermodynamic Operation
The trap operates on proven thermodynamic principles, responding quickly to changes in system conditions. Its disc-type mechanism provides reliable operation across varying pressure ranges, making it suitable for numerous industrial applications. The self-cleaning design actively prevents the accumulation of dirt and scale, significantly extending the operational lifespan of the trap.

Features & Benefits
The durable thermodynamic steam trap incorporates several innovative features that contribute to its exceptional performance and longevity. The robust construction materials ensure resistance to wear, corrosion, and thermal stress, while the specialized surface treatments enhance durability under extreme operating conditions. The self-cleaning mechanism continuously maintains optimal performance by preventing debris accumulation and ensuring consistent operation.

Enhanced Operational Efficiency
The steam trap's advanced design minimizes energy losses while maximizing condensate removal efficiency. Its rapid response to temperature and pressure changes helps maintain system stability and reduces the risk of water hammer. The integrated strainer protection extends component life while ensuring reliable operation in various industrial environments.

Maintenance-Friendly Design
Our long service life steam trap valve features a user-friendly design that simplifies maintenance procedures when needed. The compact construction allows for easy installation in tight spaces, while the serviceable components can be accessed without specialized tools. This thoughtful design approach significantly reduces maintenance time and associated costs.

Applications & Use Cases
This versatile thermodynamic steam trap excels in numerous industrial settings, from process manufacturing to energy generation facilities. Its robust construction makes it particularly suitable for high-pressure steam systems and challenging environmental conditions. The trap's reliable performance has been proven in applications ranging from steam main drainage to tracing line protection.

Industry-Specific Solutions
Different industries benefit from the steam trap's adaptable design and consistent performance. Chemical processing facilities value its corrosion resistance, while food and beverage manufacturers appreciate its reliable operation in sanitary environments. Power generation plants rely on its durability for critical steam system management.

Quality Control & Compliance
Every long service life steam trap undergoes rigorous testing and quality assurance procedures throughout the manufacturing process. Our quality management system ensures consistent product performance and reliability. Regular audits and inspections maintain compliance with relevant industry standards and regulations.

Customization & Branding Options
Understanding that different applications require specific solutions, we offer customization options to meet unique operational requirements. Our engineering team can adapt various design elements to suit particular installation configurations or operating conditions. Reach out to discuss your specific requirements and explore available customization options.

Packaging & Logistics Support
We ensure proper protection during transportation through carefully designed packaging solutions that maintain product integrity. Our logistics team coordinates efficient delivery arrangements while providing necessary documentation and support. Contact our specialists to discuss specific packaging requirements and shipping arrangements.

Why Choose Us
Our commitment to innovation and quality makes us a trusted partner in industrial steam system solutions. Years of experience in thermodynamic steam trap design and manufacturing enable us to provide reliable, efficient products backed by comprehensive technical support. Our dedicated team of experts ensures you receive the right solution for your specific application.

Inquiry & Contact Guidance
Take the next step in optimizing your steam system efficiency with our durable thermodynamic steam trap. Our technical specialists are ready to provide detailed information about specifications, customization options, and implementation solutions. Schedule a consultation to discuss how our long service life steam trap valve can enhance your facility's performance and reliability.

Contact our steam system experts today to explore tailored solutions that match your operational requirements and industry standards. Let us help you achieve optimal steam system efficiency with our advanced thermodynamic steam trap technology.

DESIGN FEATURES AND ADVANTAGES: THE ATD542 SERIES THERMODYNAMIC STEAM TRAP FEATURES A CARBON STEEL VALVE BODY AND STAINLESS STEEL 3CR13 MATERIAL FOR THE DISC AND SEAT, WHICH UNDER-GO SPECIAL HEAT TREATMENT FOR WEAR RESISTANCE AND HIGH-TEMPERATURE EN-DURANCE. IT AUTOMATICALLY DISCHARGES CONDENSATE, AIR, AND OTHER NON-CON-DENSABLE GASES WHILE PREVENTING STEAM LEAKAGE. SUITABLE FOR SMALL-SCALE DRAINAGE IN STEAM PIPELINE NETWORKS AND EQUIPMENT.

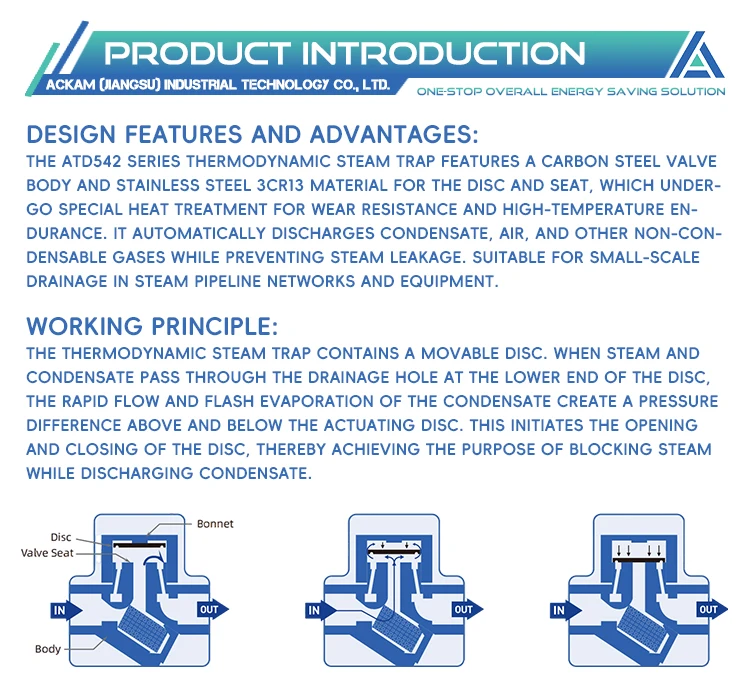

WORKING PRINCIPLE: THE THERMODYNAMIC STEAM TRAP CONTAINS A MOVABLE DISC. WHEN STEAM AND CONDENSATE PASS THROUGH THE DRAINAGE HOLE AT THE LOWER END OF THE DISC,THE RAPID FLOW AND FLASH EVAPORATION OF THE CONDENSATE CREATE A PRESSURE DIFFERENCE ABOVE AND BELOW THE ACTUATING DISC.THIS INITIATES THE OPENING AND CLOSING OF THE DISC, THEREBY ACHIEVING THE PURPOSE OF BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

DURING STARTUP, THE INLET PRESSURE ACTS ON THE BOTTOM SIDE OF THE DISC, LIFT-ING IT TO IMMEDIATELY DISCHARGE AIR AND COLDER CONDENSATE.

WHEN HOT CONDENSATE (SLIGHTLY BELOW STEAM TEMPERATURE) FLOWS THROUGH THE STEAM TRAP, THE PRESSURE DROP GENERATES FLASH STEAM. THE HIGH-SPEED FLASH .STEAM CREATES A LOW-PRESSURE ZONE BENEATH THE DISC, PRESSING IT AGAINST BOTH THE INNER AND OUTER SEAT RINGS.SIMUL TANEOUSLY, THE ACCUMU-LATED FLASH STEAM ABOVE THE DISC ALSO FORCES IT AGAINST THE INNER AND OUTER SEAT RINGS.

AS THE TOP COVER DISSIPATES HEAT, THE FLASH STEAM ABOVE THE DISC CONDENS-ES,CAUSING PRESSURE TO DROP. THE DISC THEN LIFTS AGAIN TO DISCHARGE CONDENSATE. THIS WORKING CYCLE REPEATS CONTINUOUSLY

Model	Caliber	A	B	C	PMO	Weight
ATD542/ATD542H	1/2”	80	47	63	42	1.08
		3/4”	90	48	64	42	1.28
		1”	97	57	65	42	1.84
ATD542F/ATD542HF	DN15	150	47	63	42	2.08
		DN20	150	58	64	42	2.74
		DN25	160	57	65	42	3.76
