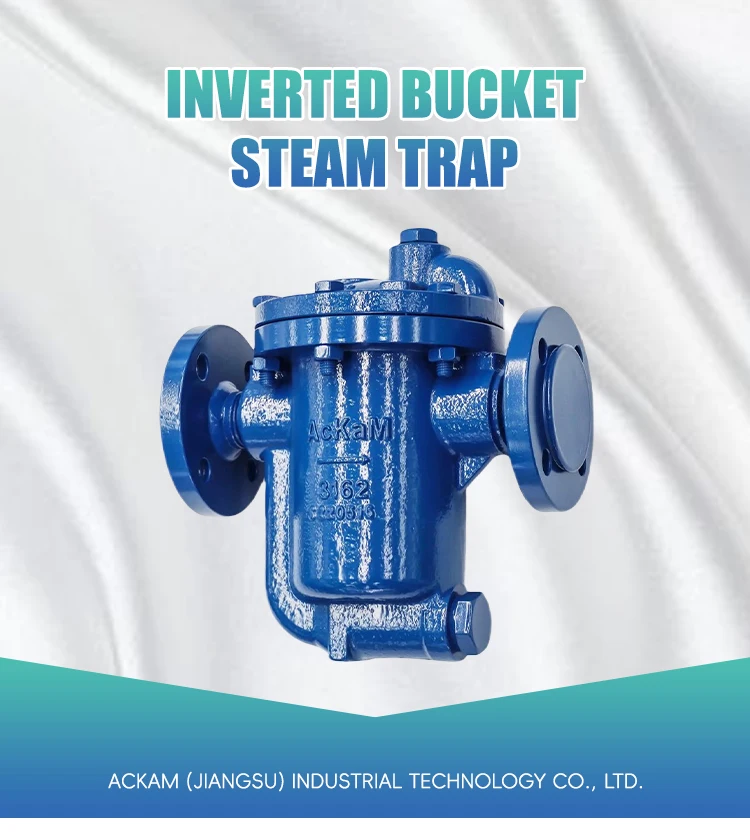

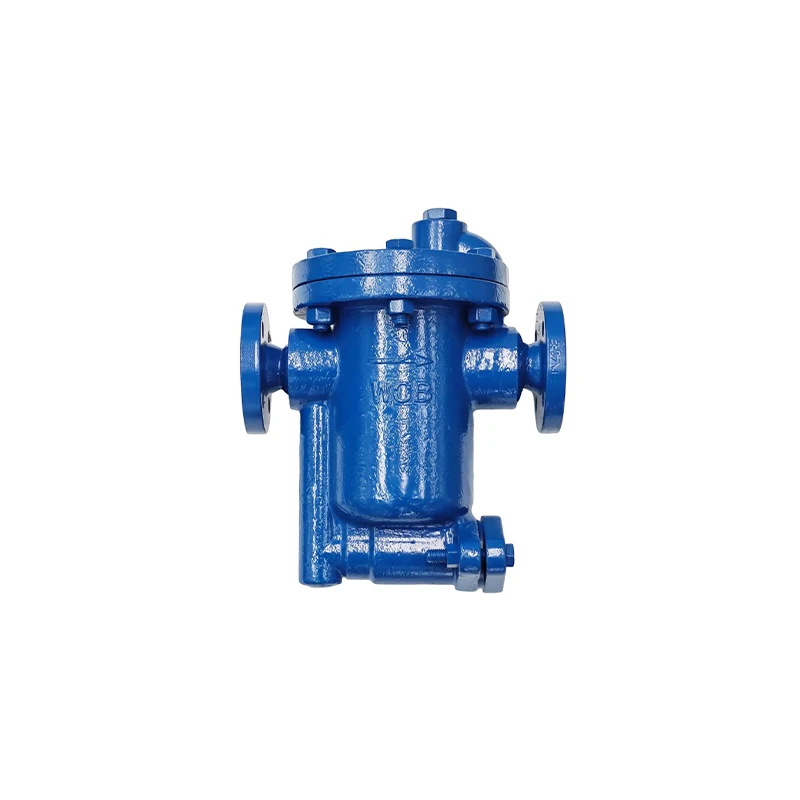

Efficient and Energy-Saving Steam Trap Valve Anti-Fouling Inverted Bucket Steam Trap for Petrochemical Industry

Efficient and Energy-Saving Steam Trap Valve Anti-Fouling Inverted Bucket Steam Trap for Petrochemical Industry - Advanced Steam Management Solution

Introduction
In today's petrochemical industry, efficient steam management is crucial for operational excellence and energy conservation. The Efficient and Energy-Saving Steam Trap Valve with Anti-Fouling Inverted Bucket design represents a significant advancement in steam system optimization. This innovative solution addresses common challenges faced by petrochemical facilities while delivering superior performance and reliability in demanding industrial environments.

Advanced Steam Management Technology
Our inverted bucket steam trap incorporates cutting-edge engineering principles to ensure optimal steam system performance. The unique anti-fouling design prevents common issues that plague conventional steam traps, resulting in extended service life and reduced maintenance requirements. The robust construction ensures reliable operation even under challenging conditions typical in petrochemical processing facilities.

Revolutionary Anti-Fouling Design
The innovative anti-fouling mechanism incorporated into our steam trap valve represents a breakthrough in steam system maintenance. By effectively preventing sediment accumulation and resisting common contaminants, this system maintains peak efficiency throughout its operational lifecycle. The self-cleaning design significantly reduces the need for frequent maintenance interventions, allowing facilities to maintain continuous operations with minimal disruption.

Features & Benefits
The energy-saving steam trap valve combines advanced engineering with practical functionality to deliver exceptional value. Its precision-engineered inverted bucket mechanism ensures accurate condensate discharge while preventing steam loss. The robust construction materials offer superior resistance to corrosion and wear, extending operational lifespan in aggressive chemical environments.

Enhanced Operational Efficiency
Our steam trap's innovative design maximizes energy efficiency through precise steam conservation and optimal condensate handling. The specialized valve mechanism responds rapidly to changing conditions, maintaining system stability while minimizing energy waste. This results in significantly reduced operating costs and improved process efficiency across petrochemical operations.

Superior Reliability Performance
The anti-fouling inverted bucket design ensures consistent performance even in challenging conditions. Advanced metallurgy and precision engineering combine to create a steam trap that delivers reliable service while requiring minimal maintenance intervention. This translates to reduced downtime and lower total cost of ownership for facility operators.

Applications & Use Cases
The Efficient and Energy-Saving Steam Trap Valve excels in diverse petrochemical applications, from basic processing operations to complex chemical manufacturing processes. Its versatile design makes it ideal for steam line drainage, process equipment protection, and condensate management across various industrial settings.

Petrochemical Process Integration
Our steam trap valve seamlessly integrates into existing petrochemical infrastructure, providing immediate benefits in terms of improved steam system efficiency and reduced energy consumption. The system's adaptability makes it suitable for both new installations and retrofit applications across different process areas.

Quality Control & Compliance
Each steam trap undergoes rigorous quality assurance procedures to ensure compliance with international industry standards. Our manufacturing process adheres to strict quality control protocols, guaranteeing consistent performance and reliability. Contact our technical team for detailed certification information and compliance documentation.

Customization & Support Services
We understand that different petrochemical operations have unique requirements. Our engineering team works closely with clients to provide customized solutions that match specific application needs. From material selection to performance parameters, we offer flexible customization options to ensure optimal system integration.

Installation & Maintenance Guidance
Professional installation support and comprehensive maintenance guidelines ensure maximum performance from your steam trap investment. Our technical experts provide detailed documentation and support to facilitate smooth implementation and ongoing operation. Reach out to our support team for installation specifications and maintenance recommendations.

Industry-Leading Warranty Protection
Our confidence in the quality and durability of our steam trap valve is reflected in our comprehensive warranty coverage. The exact terms and conditions can be discussed with our sales representatives to ensure you receive appropriate protection for your investment.

Sustainable Operations Support
The energy-efficient design of our steam trap contributes to reduced carbon footprint and improved environmental performance. This aligns with modern sustainability initiatives while delivering tangible operational benefits through reduced energy consumption and improved resource utilization.

Partner With Industry Experts
Our team brings extensive experience in steam system optimization for petrochemical applications. We offer comprehensive technical support throughout the product lifecycle, from initial specification to ongoing maintenance support. Let our expertise guide you toward optimal steam system performance.

Take the Next Step
Experience the benefits of advanced steam trap technology in your petrochemical operations. Our technical specialists are ready to discuss your specific requirements and recommend tailored solutions. Reach out today to explore how our energy-saving steam trap valve can enhance your facility's performance and efficiency.

WORKING PRINCIPLE: THE TRAP CONTAINS AN INVERTED BUCKET (OPENING FACING DOWNWARD) THAT SERVES AS A LIQUID LEVEL SENSOR, OPERATING THE VALVE DISC THROUGH A LEVER MECHANISM.DURING SYSTEM STARTUP, AIR AND LOW-TEMPERATURE CONDENSATE ENTER THE TRAP, CAUSING THE BUCKET TO DESCEND BY ITS OWN WEIGHT AND OPEN THE VALVE FOR RAPID DISCHARGE.WHEN STEAM ENTERS THE BUCKET, BUOYANCY FORCES LIFT THE BUCKET TO CLOSE THE VALVE. THE BUCKET INCORPORATES A VENT HOLE- AS PARTIAL STEAM ESCAPES AND THE REMAINDER CONDENSES, THE BUCKET LOSES BUOYANCY AND REACTIVATES THE DRAINAGE CYCLE THROUGH ITS DOWNWARD MOVEMENT, ACHIEVING INTERMITTENT OPERATION.

Material
Serial Number	Part	Material
1	Valve Cover	QT400
2	Bonnet Screw/Nut	High-strength Carbon Steel
3	Valve Body	QT400
4	Floating Barrel	304
5	Hook Assembly Screw	304
6	Hook Component	304
7	Valve Seat	440B Heat Treatment
8	Valve Core	440B Heat Treatment
9	Connecting Rod Assembly	304
10	Filter	304
11	Filter Plug	Carbon Steel
12	Check Valve Assembly	304

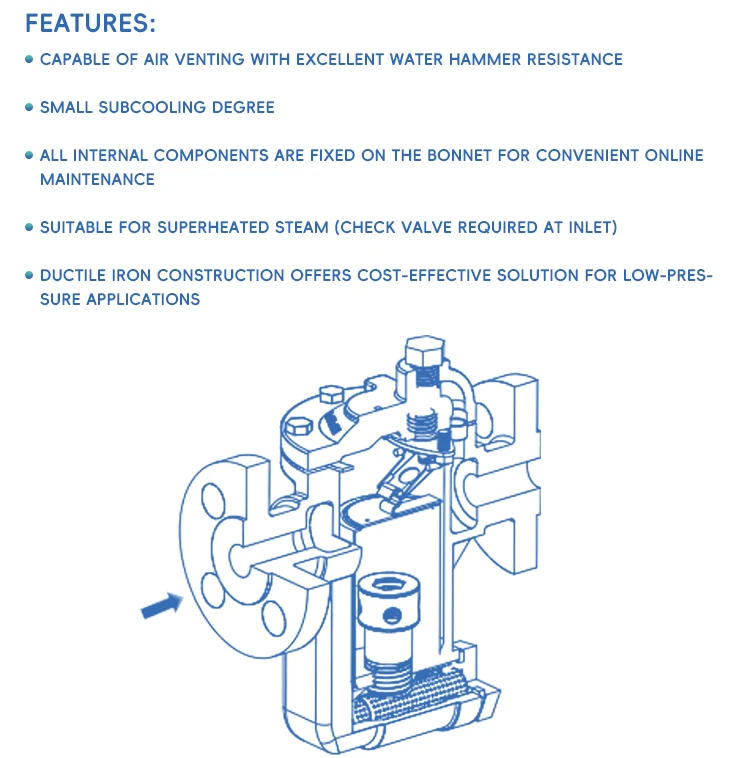

FEATURES:

CAPABLE OF AIR VENTING WITH EXCELLENT WATER HAMMER RESISTANCE

SMALL SUBCOOLING DEGREE

ALL INTERNAL COMPONENTS ARE FIXED ON THE BONNET FOR CONVENIENT ONLINE MAINTENANCE

SUITABLE FOR SUPERHEATED STEAM (CHECK VALVE REQUIRED AT INLET)

DUCTILE IRON CONSTRUCTION OFFERS COST-EFFECTIVE SOLUTION FOR LOW-PRES-SURE APPLICATIONS
