Easy Maintenance Steam Safety Valve Durable Wear-Resistant Thermodynamic Steam Trap

Easy Maintenance Steam Safety Valve Durable Wear-Resistant Thermodynamic Steam Trap - Advanced Industrial Steam Management Solution

Introduction
In today's demanding industrial environments, efficient steam management is crucial for operational excellence. The Easy Maintenance Steam Safety Valve with its wear-resistant thermodynamic steam trap design represents a significant advancement in steam system technology. This innovative solution combines robust construction with user-friendly maintenance features, making it an ideal choice for facilities seeking reliable steam management solutions.

Premium Design and Engineering Excellence
Our thermodynamic steam trap incorporates advanced engineering principles to deliver exceptional performance in challenging industrial settings. The wear-resistant construction ensures prolonged service life while maintaining consistent operation under various pressure conditions. Each component is precisely engineered to work in harmony, creating a system that effectively manages steam discharge while preventing valuable steam loss.

Superior Construction Materials
The steam safety valve features carefully selected materials that excel in high-temperature and high-pressure environments. The wear-resistant properties of these materials contribute to the extended operational lifespan of the steam trap, reducing the frequency of replacements and maintaining system efficiency over time. Our engineering team has optimized the material selection process to ensure maximum durability without compromising performance.

Features and Benefits
The Easy Maintenance Steam Safety Valve integrates several innovative features that set it apart in the industrial steam management sector. The thermodynamic design principle ensures efficient condensate discharge while preventing live steam loss, contributing to significant energy savings. The wear-resistant components work together to maintain consistent performance even under challenging operating conditions, reducing maintenance requirements and extending service intervals.

Advanced Maintenance Design
Maintenance accessibility was a key consideration in the development of this steam trap. The design allows for quick inspection and servicing without requiring complete system shutdown in many cases. This thoughtful engineering approach minimizes downtime and reduces maintenance costs while ensuring optimal system performance. The simplified maintenance procedure allows technical teams to complete necessary service work efficiently and effectively.

Industrial Applications and Use Cases
This thermodynamic steam trap finds extensive application across various industrial sectors. Process manufacturing facilities benefit from its reliable performance in managing steam systems for production equipment. Chemical processing plants appreciate the wear-resistant properties that maintain integrity in corrosive environments. Power generation facilities rely on its consistent operation for steam cycle management.

Versatile Implementation Options
The adaptable design of our steam safety valve makes it suitable for both new installations and system upgrades. Its compatibility with standard industry connections allows for seamless integration into existing steam networks. Plant engineers can easily incorporate this solution into their steam management strategies without requiring extensive system modifications.

Quality Assurance and Regulatory Compliance
Our commitment to quality is evident in every aspect of the Easy Maintenance Steam Safety Valve. Each unit undergoes comprehensive testing procedures to verify performance and reliability. The manufacturing process adheres to international quality standards, ensuring consistency and dependability in every product delivered to our customers.

Customization Capabilities
Understanding that different industries have unique requirements, we offer customization options to meet specific operational needs. Our engineering team works closely with clients to understand their steam system requirements and can adjust various parameters to optimize performance for particular applications. Contact our technical specialists to discuss your specific needs and explore customization possibilities.

Professional Support and Service
Our dedication to customer success extends beyond product delivery. We provide comprehensive technical support, including installation guidance, maintenance recommendations, and operational optimization advice. Our experienced team stands ready to assist with system integration and ongoing operational support to ensure maximum value from your investment.

Documentation and Training
Comprehensive documentation accompanies each steam trap, including detailed installation instructions and maintenance guidelines. We can arrange technical training sessions for maintenance teams to ensure proper handling and servicing of the equipment. Our support team remains available for ongoing consultation and troubleshooting assistance.

Industry Partnership Approach
We view ourselves as long-term partners in our clients' operational success. By choosing our Easy Maintenance Steam Safety Valve, you gain access to our extensive experience in industrial steam management solutions. Our team's expertise helps ensure optimal system performance and reliable operation throughout the product's service life.

Contact and Consultation
To explore how our wear-resistant thermodynamic steam trap can enhance your steam system efficiency, we invite you to engage with our technical specialists. Our team will assess your specific requirements and provide detailed information about performance capabilities, integration options, and customization possibilities. Let us help you optimize your steam management systems with our advanced solution.

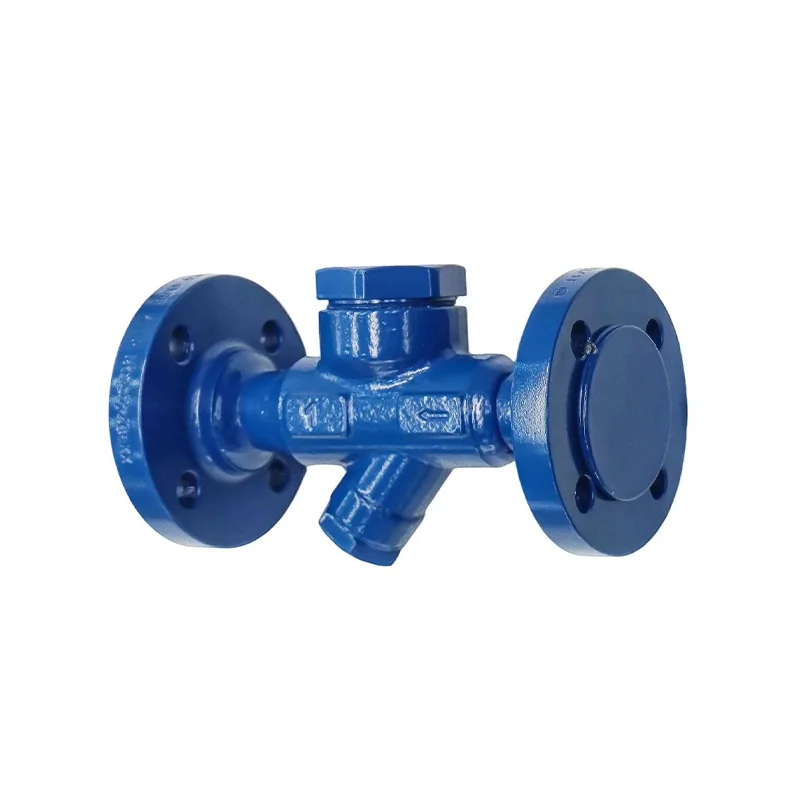

DESIGN FEATURES AND ADVANTAGES: THE ATD542 SERIES THERMODYNAMIC STEAM TRAP FEATURES A CARBON STEEL VALVE BODY AND STAINLESS STEEL 3CR13 MATERIAL FOR THE DISC AND SEAT, WHICH UNDER-GO SPECIAL HEAT TREATMENT FOR WEAR RESISTANCE AND HIGH-TEMPERATURE EN-DURANCE. IT AUTOMATICALLY DISCHARGES CONDENSATE, AIR, AND OTHER NON-CON-DENSABLE GASES WHILE PREVENTING STEAM LEAKAGE. SUITABLE FOR SMALL-SCALE DRAINAGE IN STEAM PIPELINE NETWORKS AND EQUIPMENT.

WORKING PRINCIPLE: THE THERMODYNAMIC STEAM TRAP CONTAINS A MOVABLE DISC. WHEN STEAM AND CONDENSATE PASS THROUGH THE DRAINAGE HOLE AT THE LOWER END OF THE DISC,THE RAPID FLOW AND FLASH EVAPORATION OF THE CONDENSATE CREATE A PRESSURE DIFFERENCE ABOVE AND BELOW THE ACTUATING DISC.THIS INITIATES THE OPENING AND CLOSING OF THE DISC, THEREBY ACHIEVING THE PURPOSE OF BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

DURING STARTUP, THE INLET PRESSURE ACTS ON THE BOTTOM SIDE OF THE DISC, LIFT-ING IT TO IMMEDIATELY DISCHARGE AIR AND COLDER CONDENSATE.

WHEN HOT CONDENSATE (SLIGHTLY BELOW STEAM TEMPERATURE) FLOWS THROUGH THE STEAM TRAP, THE PRESSURE DROP GENERATES FLASH STEAM. THE HIGH-SPEED FLASH .STEAM CREATES A LOW-PRESSURE ZONE BENEATH THE DISC, PRESSING IT AGAINST BOTH THE INNER AND OUTER SEAT RINGS.SIMUL TANEOUSLY, THE ACCUMU-LATED FLASH STEAM ABOVE THE DISC ALSO FORCES IT AGAINST THE INNER AND OUTER SEAT RINGS.

AS THE TOP COVER DISSIPATES HEAT, THE FLASH STEAM ABOVE THE DISC CONDENS-ES,CAUSING PRESSURE TO DROP. THE DISC THEN LIFTS AGAIN TO DISCHARGE CONDENSATE. THIS WORKING CYCLE REPEATS CONTINUOUSLY

Model	Caliber	A	B	C	PMO	Weight
ATD542/ATD542H	1/2”	80	47	63	42	1.08
		3/4”	90	48	64	42	1.28
		1”	97	57	65	42	1.84
ATD542F/ATD542HF	DN15	150	47	63	42	2.08
		DN20	150	58	64	42	2.74
		DN25	160	57	65	42	3.76
