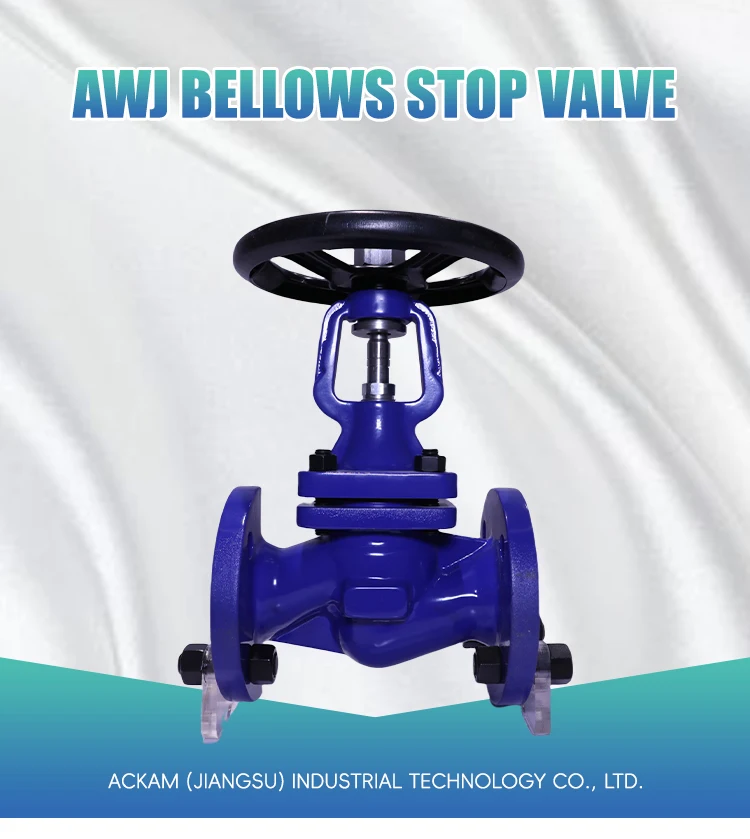

Long Service Life Safe Globe Stop Valve Wear Resistant Bellows Seat Globe Valve

Long Service Life Safe Globe Stop Valve Wear Resistant Bellows Seat Globe Valve - Advanced Industrial Flow Control Solution

Introduction
The Long Service Life Safe Globe Stop Valve represents a significant advancement in industrial flow control technology, combining robust construction with innovative bellows seat design. This premium globe valve solution delivers exceptional performance and reliability across demanding industrial applications. Through meticulous engineering and superior material selection, this valve addresses the critical needs of process engineers and facility managers seeking dependable flow control solutions.

Professional Globe Valve Engineering Excellence

Advanced Design Philosophy
Our wear-resistant bellows seat globe valve embodies decades of valve engineering expertise. The innovative design incorporates advanced sealing technology and precision-engineered components that work in harmony to ensure consistent performance under various operating conditions. Each valve undergoes rigorous testing to validate its long-term reliability and safety characteristics.

Superior Construction Materials

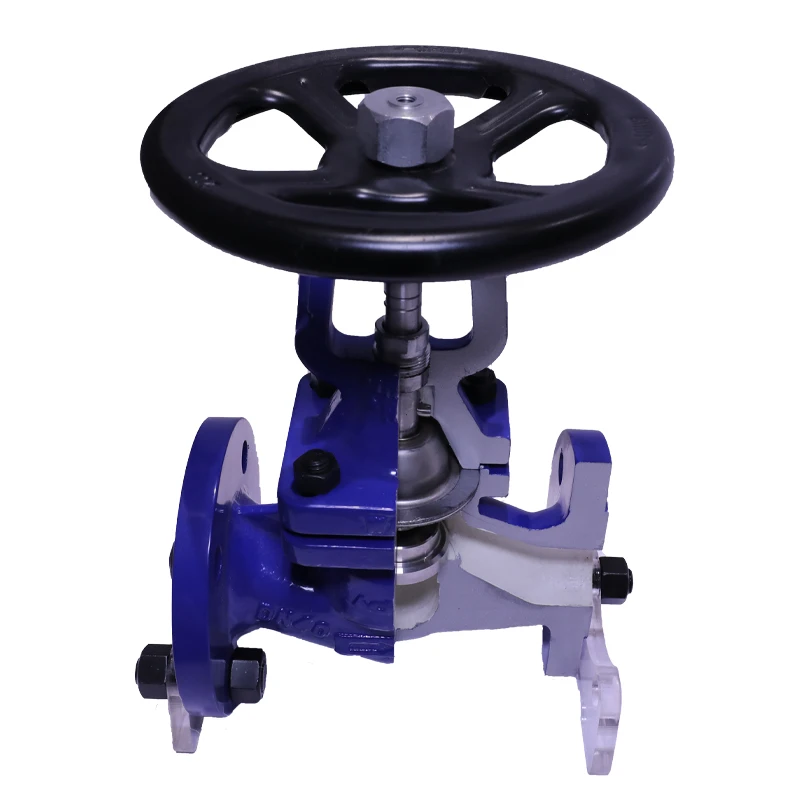

The valve's construction features carefully selected materials that maximize durability and corrosion resistance. The bellows seat design represents a significant advancement in valve technology, providing superior sealing capabilities while minimizing maintenance requirements. This thoughtful material selection ensures the valve maintains its performance integrity even in challenging industrial environments.

Features & Benefits

Enhanced Operational Safety
The integrated safety features of our globe stop valve make it an ideal choice for critical applications where reliability is paramount. The bellows seat design provides an additional layer of protection against leakage while maintaining precise flow control capabilities. This enhanced safety profile makes the valve particularly suitable for applications handling sensitive or hazardous materials.

Extended Service Life Performance
The wear-resistant design significantly extends the operational lifespan of the valve, reducing the frequency of maintenance interventions and replacement needs. The robust construction and premium materials ensure consistent performance even under frequent cycling and varying pressure conditions. This longevity translates directly into reduced total cost of ownership and improved operational efficiency for facility managers.

Industrial Applications & Use Cases

Process Industry Solutions
Our globe stop valve excels in process industry applications where precise flow control and reliability are essential. From chemical processing to power generation facilities, the valve's versatile design makes it suitable for a wide range of industrial processes. The robust construction ensures reliable operation in both standard and specialized applications.

Critical Infrastructure Systems
The valve's superior safety features and long-term reliability make it an excellent choice for critical infrastructure installations. Whether in water treatment facilities, power plants, or industrial manufacturing operations, the valve's proven performance characteristics provide peace of mind to system operators and maintenance teams.

Quality Assurance & Compliance

Comprehensive Testing Protocols
Each globe valve undergoes extensive testing throughout the manufacturing process to ensure consistent quality and performance. Our quality control system incorporates advanced testing methodologies and inspection procedures to verify compliance with industry standards and customer specifications. Contact our technical team for detailed information about our testing protocols and certification documentation.

International Standards Compliance
Our manufacturing processes and quality management systems align with relevant international standards and industry requirements. This commitment to quality ensures our valves meet or exceed the expectations of global customers and regulatory authorities.

Customization Options

Application-Specific Solutions
Understanding that different applications may require specific features or modifications, we offer customization options to meet unique operational requirements. Our engineering team can work with you to develop tailored solutions that address your specific application challenges.

Technical Support & Configuration
Our technical support team provides comprehensive assistance in valve selection and configuration. From initial specification review to installation guidance, we ensure customers receive the optimal valve solution for their specific needs.

Packaging & Logistics

Secure Transportation Solutions
Each valve is carefully packaged to ensure protection during transportation and storage. Our logistics team can arrange suitable shipping solutions to meet your delivery requirements and ensure safe arrival at your facility.

Why Partner With Us

Industry Expertise
Our extensive experience in industrial valve manufacturing and strong focus on research and development enable us to provide cutting-edge solutions that address evolving industry needs. We maintain close relationships with industry partners and end-users to ensure our products continue to meet market demands.

Ongoing Support Commitment
We provide comprehensive after-sales support and technical assistance throughout the valve's service life. Our dedicated support team is ready to assist with maintenance guidance, troubleshooting, and optimization recommendations.

Connect With Our Valve Specialists
Discover how our Long Service Life Safe Globe Stop Valve can enhance your facility's operational efficiency and safety. Our valve specialists are ready to discuss your specific requirements and provide detailed technical information. Reach out today to explore customized solutions that align with your industrial flow control needs.

STANDARD: THE PRODUCT COMPLIES WITH CHINA SPECIAL EQUIPMENT SAFETY TECHNICAL SPECI-FICATIONS (TSG) AND CAN PROVIDE TS MARK.

CONTROL METHOD: MANUAL CONTROL. IF YOU NEED OTHER CONTROL METHODS, PLEASE CONSULT AND CUSTOMIZE IN DETAIL.

DIAMETER AND PIPE CONNECTION: DIAMERTER: DN15,20,25,32,40,50,65,80,100,125,150,200,250,300,350,400.FLANGE:PN16/25/40,ANSI150/300 OTHER OPTIONS R-PTFE SOFT VALVE DISC FOR WATER SYSTEM APPLICATIONS.

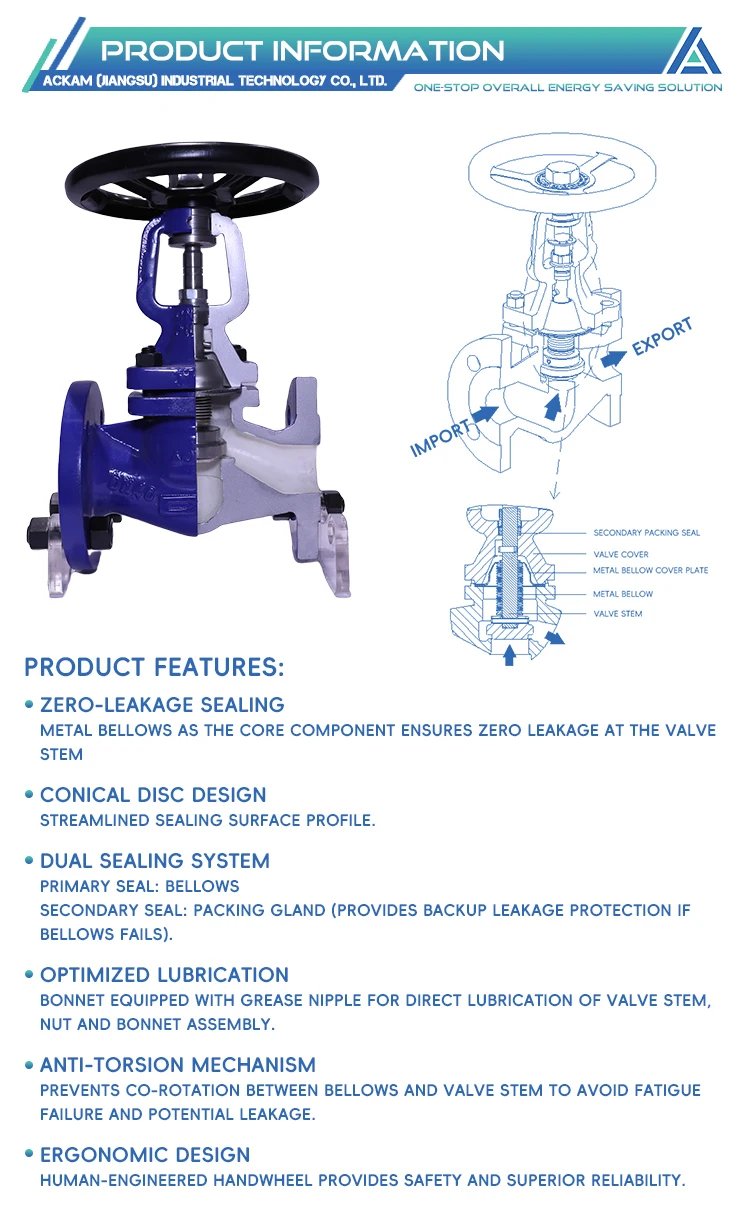

OPERATIONAL PRINCIPLE: CLOCKWISE HANDWHEEL ROTATION: THE DISC MOVES DOWNWARD TO CLOSE THE VALVE COUNTERCLOCKWISE HANDWHEEL ROTATION: THE DISC MOVES UPWARD UNTIL THE LIMIT PIN REACHES ITS STOP POSITION, FULLY OPENING THE VALVE (HANDWHEEL RO-TATION SHOULD CEASE AT THIS POINT)

Caliber	A					B			C
		PN 16/25/40	ANSI 150	ANSI 300	GermanStandard/ American Standard	National Standard	GermanStandard/ American Standard	National Standard
DN15	130	108	152	197	197	120	150
DN20	150	117	178	197	197	120	150
DN25	160	127	203	213	213	120	200
DN32	180	140	215	240	240	120	200
DN40	200	165	229	245	322	200	200
DN50	230	203	267	245	326	200	200
DN65	290	216	292	280	350	200	200
DN80	310	241	317	323	423	220	200
DN100	350	292	356	395	495	280	320
DN125	400	356	400	416	500	320	320
DN150	480	406	445	450	525	350	350
DN200	600	495	559	612	650	500	500
DN250	730	622	622	765	800	500	500
DN300	850	698	698	1005	900	600	600
DN350	980	787	787	1095	1040	650	650
DN400	1100	914	914	1173	1150	700	700

Caliber	Weight
		PN16/25/40			ANSI 150/300
		GermanStandard	National Standard
DN15	4	5	6
DN20	5	6	7
DN25	6	6.5	9
DN32	8	11	8
DN40	11	14.5	11
DN50	14	21	15
DN65	19	28	19
DN80	26	39	29
DN100	44	50	49
DN125	64	80	64
DN150	173	200	94
DN200	180	190	193
DN250	316	320	316
DN300	480	490	480
DN350	690	700	690
DN400	950	950	950
