Introduction
The Low Maintenance Cost Reliable Globe Valves with High Precision Bellows Seat technology represent a significant advancement in industrial flow control solutions. These meticulously engineered valves combine durability, precision, and cost-effectiveness to meet the demanding requirements of modern industrial processes. As industries evolve and efficiency standards rise, our bellows seat globe valves continue to set new benchmarks in performance and reliability.

Advanced Design Features and Engineering Excellence

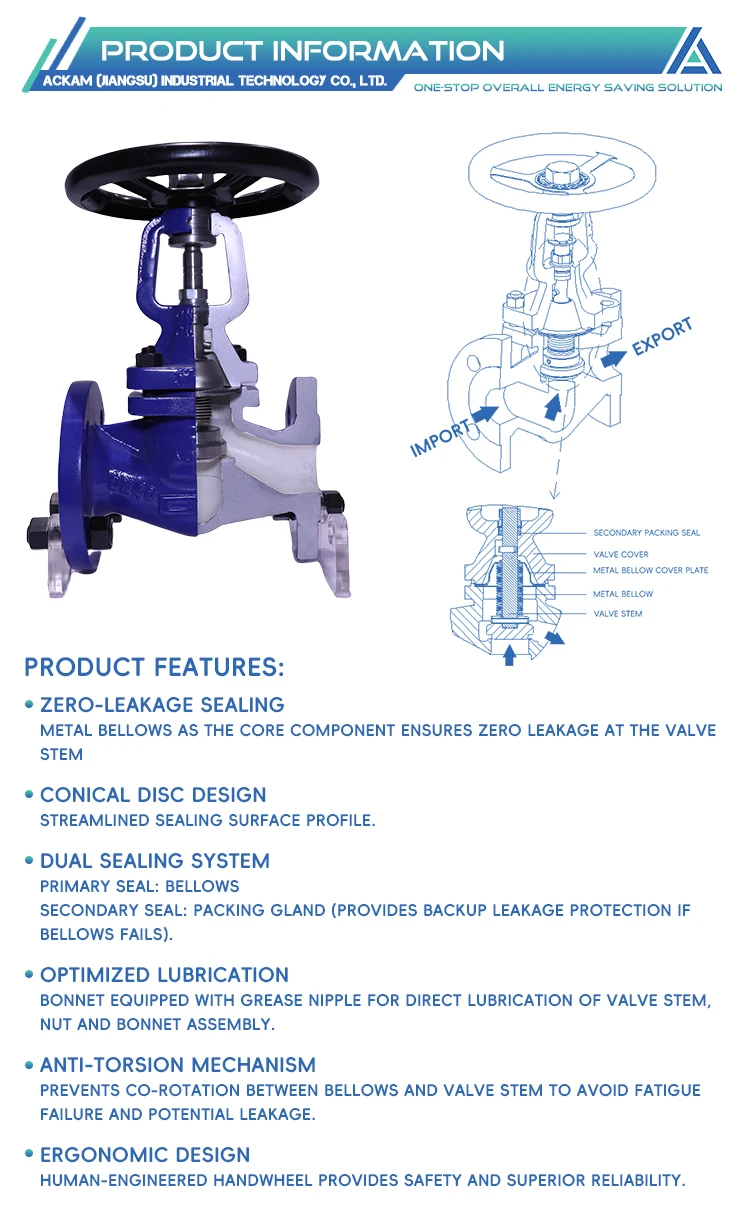

Our high-precision bellows seat globe valve incorporates innovative design elements that ensure exceptional flow control capabilities. The advanced bellows seal technology effectively prevents external leakage while maintaining precise flow regulation. The robust construction features premium materials selected for their superior wear resistance and longevity, resulting in reduced maintenance requirements and extended service life.

Superior Sealing Technology
The precision-engineered bellows seat mechanism delivers outstanding sealing performance under various operating conditions. This sophisticated sealing system maintains its integrity even under challenging pressure and temperature variations, ensuring consistent and reliable operation throughout the valve's service life.

Optimized Flow Characteristics
The internal geometry of our reliable globe valves has been carefully optimized to minimize pressure drop and ensure smooth flow characteristics. This thoughtful design approach results in improved process efficiency and reduced energy consumption, making these valves an economical choice for demanding industrial applications.

Features and Benefits
The integration of advanced materials and precision engineering in our bellows seat globe valve delivers multiple advantages for industrial users. The self-adjusting seal design significantly reduces maintenance requirements, leading to lower operational costs and increased uptime. The robust construction ensures exceptional durability, while the precision-machined components guarantee accurate flow control and reliable performance.

The innovative bellows seal design effectively eliminates the need for frequent packing adjustments, resulting in reduced maintenance overhead and improved operational efficiency. Our valve's superior shut-off capabilities ensure minimal leakage, contributing to enhanced process safety and environmental compliance.

Industrial Applications and Use Cases
These high-precision globe valves excel in various industrial settings where reliable flow control is crucial. They perform exceptionally well in chemical processing facilities, power generation plants, and petrochemical installations. The valves' robust design makes them particularly suitable for applications involving high-temperature fluids, corrosive media, and challenging process conditions.

Process Industry Solutions
In process industries, our reliable globe valves demonstrate outstanding performance in temperature control systems, pressure regulation, and fluid handling applications. Their precise control characteristics make them ideal for processes requiring accurate flow modulation and reliable shut-off capability.

Power Generation Applications
The power generation sector benefits from the exceptional reliability and precision of our bellows seat globe valves. Their robust construction and superior sealing technology make them particularly suitable for steam systems, feedwater control, and other critical power plant applications.

Quality Assurance and Compliance
Each high-precision bellows seat globe valve undergoes rigorous quality control procedures throughout the manufacturing process. Our comprehensive testing protocols ensure compliance with international standards and industry specifications. We maintain strict quality management systems and documentation procedures to guarantee consistent product excellence.

Customization Options
Understanding that different applications require specific solutions, we offer extensive customization possibilities for our reliable globe valves. Our engineering team can adapt various design parameters to meet unique process requirements and installation specifications. Contact our technical specialists to discuss your specific application needs and customization options.

Comprehensive Support Services
We provide complete technical support throughout the product lifecycle, from initial selection to installation guidance and maintenance recommendations. Our experienced team offers expert advice on valve selection, sizing, and application-specific considerations to ensure optimal performance in your specific operating environment.

Industry Leadership and Innovation
Our commitment to continuous improvement and innovation has established us as a leading provider of high-precision flow control solutions. We consistently invest in research and development to enhance our valve technology and meet evolving industry requirements.

Contact and Inquiry Information
To explore how our low maintenance cost reliable globe valves can benefit your operations, reach out to our technical team. We'll provide detailed information about specifications, customization options, and application-specific solutions tailored to your requirements.

Our dedicated specialists are ready to assist you in selecting the optimal valve configuration for your specific application. Let us help you enhance your process efficiency with our advanced bellows seat globe valve technology.

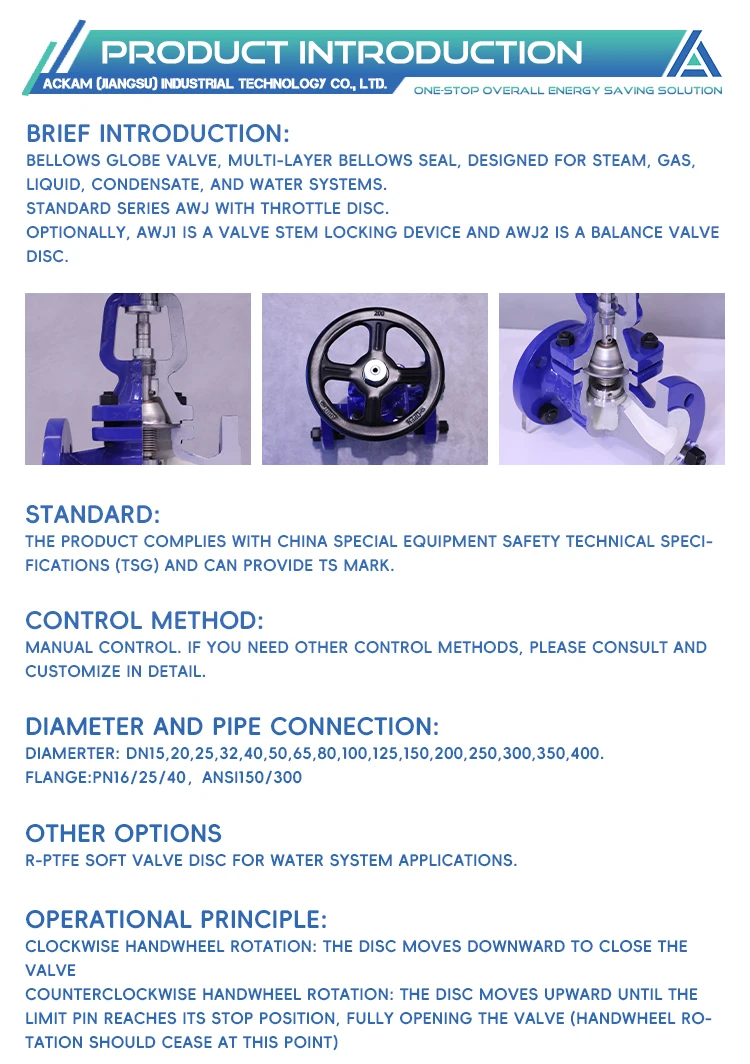

STANDARD: THE PRODUCT COMPLIES WITH CHINA SPECIAL EQUIPMENT SAFETY TECHNICAL SPECI-FICATIONS (TSG) AND CAN PROVIDE TS MARK.

CONTROL METHOD: MANUAL CONTROL. IF YOU NEED OTHER CONTROL METHODS, PLEASE CONSULT AND CUSTOMIZE IN DETAIL.

DIAMETER AND PIPE CONNECTION: DIAMERTER: DN15,20,25,32,40,50,65,80,100,125,150,200,250,300,350,400.FLANGE:PN16/25/40,ANSI150/300 OTHER OPTIONS R-PTFE SOFT VALVE DISC FOR WATER SYSTEM APPLICATIONS.

OPERATIONAL PRINCIPLE: CLOCKWISE HANDWHEEL ROTATION: THE DISC MOVES DOWNWARD TO CLOSE THE VALVE COUNTERCLOCKWISE HANDWHEEL ROTATION: THE DISC MOVES UPWARD UNTIL THE LIMIT PIN REACHES ITS STOP POSITION, FULLY OPENING THE VALVE (HANDWHEEL RO-TATION SHOULD CEASE AT THIS POINT)

Caliber	A					B			C
		PN 16/25/40	ANSI 150	ANSI 300	GermanStandard/ American Standard	National Standard	GermanStandard/ American Standard	National Standard
DN15	130	108	152	197	197	120	150
DN20	150	117	178	197	197	120	150
DN25	160	127	203	213	213	120	200
DN32	180	140	215	240	240	120	200
DN40	200	165	229	245	322	200	200
DN50	230	203	267	245	326	200	200
DN65	290	216	292	280	350	200	200
DN80	310	241	317	323	423	220	200
DN100	350	292	356	395	495	280	320
DN125	400	356	400	416	500	320	320
DN150	480	406	445	450	525	350	350
DN200	600	495	559	612	650	500	500
DN250	730	622	622	765	800	500	500
DN300	850	698	698	1005	900	600	600
DN350	980	787	787	1095	1040	650	650
DN400	1100	914	914	1173	1150	700	700

Caliber	Weight
		PN16/25/40			ANSI 150/300
		GermanStandard	National Standard
DN15	4	5	6
DN20	5	6	7
DN25	6	6.5	9
DN32	8	11	8
DN40	11	14.5	11
DN50	14	21	15
DN65	19	28	19
DN80	26	39	29
DN100	44	50	49
DN125	64	80	64
DN150	173	200	94
DN200	180	190	193
DN250	316	320	316
DN300	480	490	480
DN350	690	700	690
DN400	950	950	950
