Large Flow Reliable Performance Control Valves Easy Maintenance Single Seated Control Valve for Oil and Gas

Large Flow Reliable Performance Control Valves Easy Maintenance Single Seated Control Valve for Oil and Gas - Advanced Flow Control Solutions for Industrial Applications

Introduction
In the demanding world of oil and gas operations, reliable flow control systems are paramount to maintaining efficient and safe processes. The Large Flow Reliable Performance Single Seated Control Valve represents a significant advancement in flow control technology, offering exceptional performance and durability for critical industrial applications. This innovative control valve solution combines precision engineering with user-friendly maintenance features to deliver optimal flow management in challenging environments.

Advanced Design and Engineering Excellence
Our single seated control valve showcases sophisticated engineering that prioritizes both performance and practicality. The robust construction incorporates premium materials specifically chosen for their resistance to corrosion and wear in oil and gas environments. The single-seat design ensures precise flow control while minimizing the potential for leakage, making it an ideal choice for operations where accuracy and reliability are non-negotiable.

Innovative Flow Management Technology
The valve's advanced flow management system incorporates state-of-the-art trim designs that optimize flow characteristics across various operating conditions. This sophisticated approach to flow control results in superior stability and responsiveness, enabling operators to maintain precise control over their processes. The innovative design also helps reduce noise and vibration, contributing to extended equipment life and improved workplace safety.

Features and Benefits
The single seated control valve's design prioritizes operational excellence through multiple innovative features. The easy-maintenance construction allows for quick access to internal components, significantly reducing downtime during routine maintenance or repairs. Advanced sealing technology ensures exceptional tightness even under challenging conditions, while the optimized flow path design minimizes pressure drops and enhances overall system efficiency.

Enhanced Operational Efficiency
Our control valve's intelligent design incorporates features that maximize operational efficiency while minimizing maintenance requirements. The self-adjusting seal system maintains optimal performance over time, while the reinforced stem design ensures smooth operation even under high-pressure conditions. These features work together to deliver consistent, reliable performance while reducing the total cost of ownership.

Applications and Industry Solutions
This versatile control valve excels in various oil and gas applications, from upstream production to downstream processing. Its robust design makes it particularly suitable for high-pressure applications, while its precise control capabilities make it ideal for critical flow control scenarios. The valve's adaptability allows it to handle multiple fluid types and operating conditions, making it a versatile solution for diverse industrial requirements.

Performance in Demanding Environments
Whether deployed in offshore platforms, refineries, or processing facilities, our single seated control valve maintains exceptional performance in challenging environments. The valve's design accommodates wide ranging process conditions while maintaining accurate control and reliable operation, making it an essential component in modern oil and gas operations.

Quality Assurance and Compliance
Every control valve undergoes rigorous testing and quality control procedures to ensure compliance with international standards and specifications. Our manufacturing processes adhere to strict quality management systems, ensuring consistency and reliability in every unit produced. Documentation and certification packages are available to meet specific industry requirements and regulatory standards.

Customization Options
Understanding that each application has unique requirements, we offer extensive customization possibilities for our control valves. From material selection to special trim designs, our engineering team can develop tailored solutions to meet specific operational needs. Custom configurations can be developed to accommodate special installation requirements or process conditions.

Installation and Support Services
Our comprehensive support services ensure smooth implementation and optimal performance of your control valve solution. Expert technical support is available throughout the installation process and beyond, while our documentation packages provide detailed guidance for maintenance and operation. Training programs can be arranged to ensure proper operation and maintenance procedures.

Partnership Approach
We believe in building long-term partnerships with our clients, offering ongoing support and expertise throughout the lifecycle of our products. Our technical team remains available for consultation on application-specific requirements and optimization opportunities. Regular communication channels ensure prompt response to any operational queries or support needs.

Taking the Next Step
Discover how our Large Flow Reliable Performance Single Seated Control Valve can enhance your oil and gas operations. Our technical experts are ready to discuss your specific requirements and provide detailed information about customization options and performance capabilities. Schedule a consultation to explore how our advanced flow control solutions can benefit your operations and improve your process efficiency.

Reach out to our dedicated team to begin the conversation about optimizing your flow control systems with our industry-leading valve solutions. Let us help you achieve superior performance and reliability in your critical processes through our innovative control valve technology.

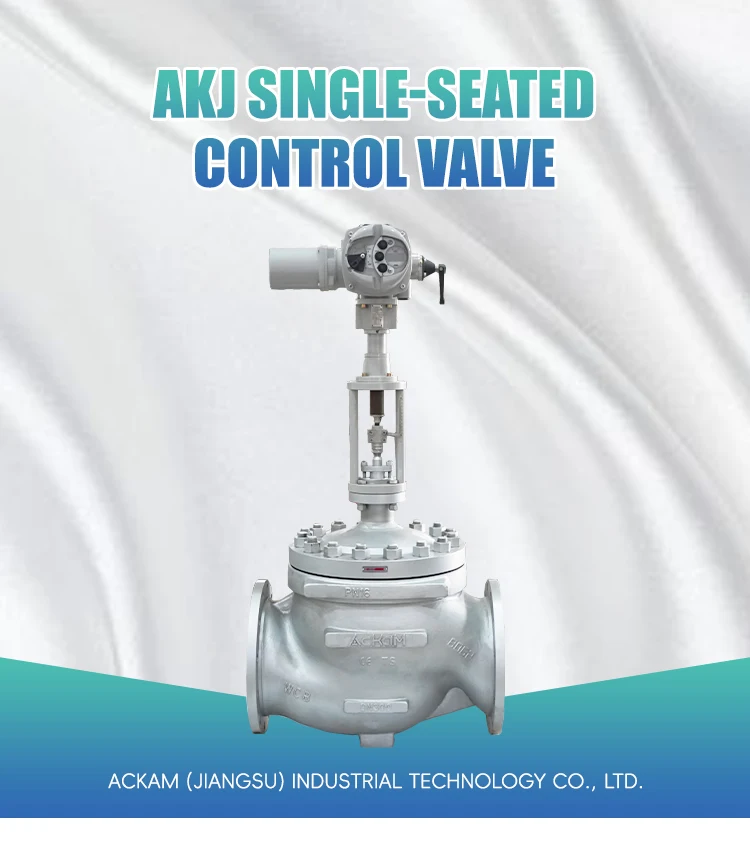

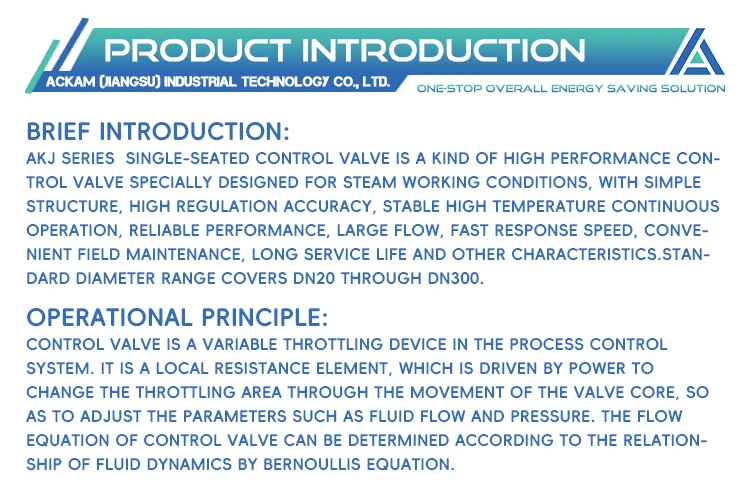

BRIEF INTRODUCTION: AKJ SERIES SINGLE-SEATED CONTROL VALVE IS A KIND OF HIGH PERFORMANCE CON-TROL VALVE SPECIALLY DESIGNED FOR STEAM WORKING CONDITIONS, WITH SIMPLE STRUCTURE, HIGH REGULATION ACCURACY, STABLE HIGH TEMPERATURE CONTINUOUS OPERATION,RELIABLE PERFORMANCE, LARGE FLOW, FAST RESPONSE SPEED, CONVE-NIENT FIELD MAINTENANCE, LONG SERVICE LIFE AND OTHER CHARACTERISTICS.STAN-DARD DIAMETER RANGE COVERS DN20 THROUGH DN300. OPERATIONAL PRINCIPLE: CONTROL VALVE IS A VARIABLE THROTTLING DEVICE IN THE PROCESS CONTROL SYSTEM. IT IS A LOCAL RESISTANCE ELEMENT, WHICH IS DRIVEN BY POWER TO CHANGE THE THROTTLING AREA THROUGH THE MOVEMENT OF THE VALVE CORE, SO AS TO ADJUST THE PARAMETERS SUCH AS FLUID FLOW AND PRESSURE. THE FLOW EQUATION OF CONTROL VALVE CAN BE DETERMINED ACCORDING TO THE RELATION- SHIP OF FLUID DYNAMICS BY BERNOULLIS EQUATION.

DN20-DN150 ANSI150/PN16/PN25/PN40/ANSI300 (with pneumatic actuator)
valve	DN			20	25	40	50	80	100	150
		L	ANSI150	184	184	222	254	298	352	451
				PN16	194	197	235	254	298	352	451
				PN25	194	197	235	267	318	368	473
				PN40	194	197	235	267	318	368	473
				ANSI300	194	197	235	267	318	368	473
		H1			56	56	74	77	108	139	175
		H2	＜299℃	80	80	136	174	188	214	260
				≥299℃	80	80	201	239	278	304	355
Execution Agency	φA	DM2	272											-
				DM3	-							400
		H3 (without handwheel)	DM2	408											-
				DM3	-							640
		H3 (with hand wheel)	DM2	590											-
				DM3	-							960
Valve + actuator Weight is approximately (Kg) (without handwheel)			DM2	35	36	42	47	75	106	-
				DM3	-							129	153	202
Valve + actuator Weight is approximately (Kg) (with handwheel)			DM2	42	43	49	54	82	113	-
				DM3	-							141	165	214
Note: The weight is the weight of ANSI300 series valve body + actuator

DN20-DN150 ANSI150/PN16/PN25/PN40/ANSI300 (with electric actuator)
valve	DN			20	25	40	50	80	100	150
		L	ANSI150	184	184	222	254	298	352	451
				PN16	194	197	235	254	298	352	451
				PN25	194	197	235	267	318	368	473
				PN40	194	197	235	267	318	368	473
				ANSI300	194	197	235	267	318	368	473
		H1			56	56	74	77	108	139	175
		H2	＜299℃	80	80	136	174	188	214	260
				≥299℃	80	80	201	239	278	304	355
Execution Agency	φA	E200L-A50	177											-
				E200L-B50	177											-
				E200L-C50	177											-
				E200L-D50	177											-
				E200L-E65	-							180
				E200L-F100	-							250
		H3	E200L-A50	504											-
				E200L-B50	504											-
				E200L-C50	544											-
				E200L-D50	544											-
				E200L-E65	-							613
				E200L-F100	-							770
Valve + actuator weight (kg)			E200L-A50	16.5	17	25	27	60	83	-
				E200L-B50	18.5	19	27	29	64	87	-
				E200L-C50	24.5	25	33	35	72	95	-
				E200L-D50	28.5	29	37	39	76	99	-
				E200L-E65	-	-	-	-	81	104	168
				E200L-F100	-	-	-	-	86	109	173
Note: The weight is the weight of ANSI300 series valve body + actuator
