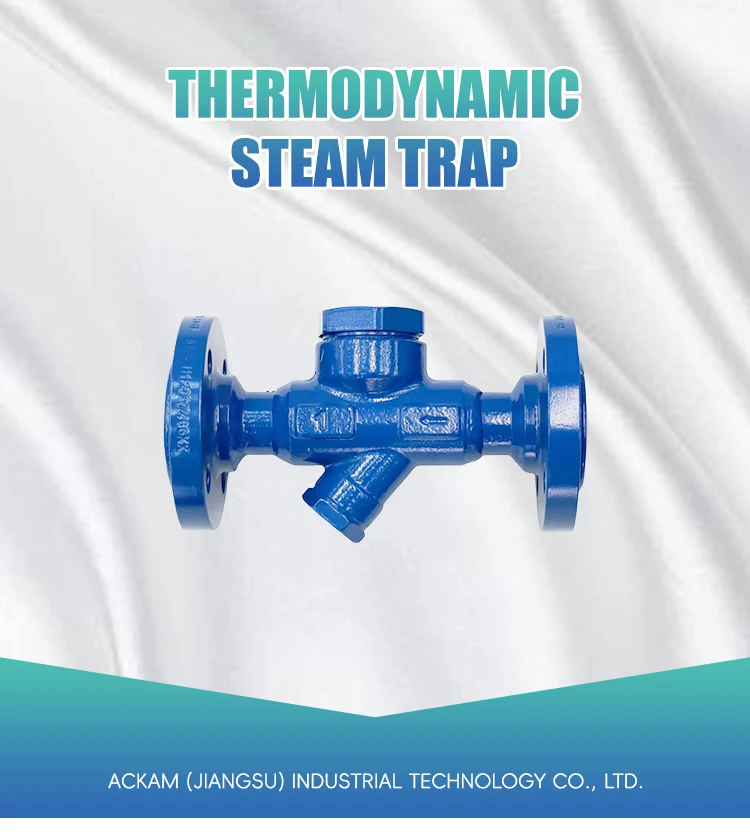

Reliable Steam Trap Self-Cleaning Performance Stain Resistance Thermodynamic Disc Trap

Reliable Steam Trap Self-Cleaning Performance Stain Resistance Thermodynamic Disc Trap - Advanced Industrial Steam System Solution

Introduction
The Reliable Steam Trap Self-Cleaning Performance Stain Resistance Thermodynamic Disc Trap represents a significant advancement in steam system efficiency and maintenance. This innovative thermodynamic disc trap combines superior self-cleaning capabilities with exceptional stain resistance, addressing the critical needs of modern industrial steam applications. As industries evolve, the demand for reliable, low-maintenance steam traps continues to grow, making this solution particularly valuable for operations seeking sustained performance and reduced maintenance requirements.

Product Overview
Our thermodynamic disc trap embodies the latest developments in steam system technology, incorporating advanced self-cleaning mechanisms that ensure consistent operation in demanding industrial environments. The innovative design focuses on maintaining optimal steam system efficiency while minimizing the common challenges associated with traditional steam traps. By utilizing cutting-edge materials and engineering principles, this reliable steam trap delivers superior condensate handling capabilities while resisting the buildup of deposits that typically impair performance.

Features & Benefits
The self-cleaning performance of our reliable steam trap stems from its meticulously engineered disc mechanism, which automatically removes debris and contaminants during normal operation. This revolutionary feature significantly reduces maintenance requirements and extends the operational lifespan of the steam trap. The stain-resistant surface treatment provides an additional layer of protection against corrosion and chemical attack, ensuring sustained performance even in aggressive environments.

The thermodynamic disc design incorporates advanced flow patterns that optimize condensate discharge while preventing live steam loss. This efficient operation translates directly into energy savings and improved process stability. The robust construction materials ensure exceptional durability, while the streamlined internal geometry minimizes wear and maintains consistent performance over extended periods.

Applications & Use Cases
This reliable steam trap finds extensive application across diverse industrial sectors, particularly in process manufacturing, chemical production, and power generation facilities. The self-cleaning capability makes it especially suitable for applications where traditional steam traps struggle with contaminated condensate or particulate matter. In food processing plants, the stain-resistant properties ensure compliance with hygiene standards while maintaining efficient operation.

The thermodynamic disc trap excels in both main steam lines and secondary processing equipment, offering versatile installation options and consistent performance across varying load conditions. Its reliable operation proves particularly valuable in critical applications where unexpected steam trap failures could result in significant production disruptions.

Quality Control & Compliance
Every thermodynamic disc trap undergoes rigorous testing and quality assurance procedures throughout the manufacturing process. Our comprehensive quality management system ensures consistent product performance and reliability. International standards compliance and certification provide peace of mind for global customers seeking proven steam system solutions.

Customization & Branding Options
Understanding that different industries and applications have unique requirements, we offer various customization options for our reliable steam trap. Our engineering team works closely with clients to optimize the trap configuration for specific operating conditions and installation requirements. Connect with our specialists to explore customization possibilities that align with your operational needs.

Packaging & Logistics Support
We implement careful packaging protocols to ensure our reliable steam traps arrive in perfect condition, regardless of the shipping destination. Our logistics team coordinates efficient delivery solutions while maintaining product integrity throughout the transportation process. Reach out to discuss specific packaging requirements and shipping arrangements for your order.

Why Choose Us
Our decades of experience in steam system technology, combined with continuous innovation in self-cleaning and stain-resistant solutions, position us as a trusted partner for industrial steam trap requirements. We maintain close relationships with clients worldwide, providing comprehensive technical support and ensuring optimal performance of our products in diverse applications.

Installation & Support Services
Professional installation guidance and ongoing technical support ensure maximum benefit from our reliable steam trap solutions. Our experienced technical team provides detailed installation instructions and can assist with system integration questions. Regular maintenance recommendations and troubleshooting support help maintain optimal performance throughout the product's lifecycle.

Contact & Inquiry Information
Experience the advantages of our Reliable Steam Trap Self-Cleaning Performance Stain Resistance Thermodynamic Disc Trap in your operations. Our technical specialists are ready to discuss your specific application requirements and provide detailed product information. Schedule a consultation to explore how our advanced steam trap solutions can enhance your system's efficiency and reliability. Connect with us today to begin optimizing your steam system performance with our innovative thermodynamic disc trap technology.

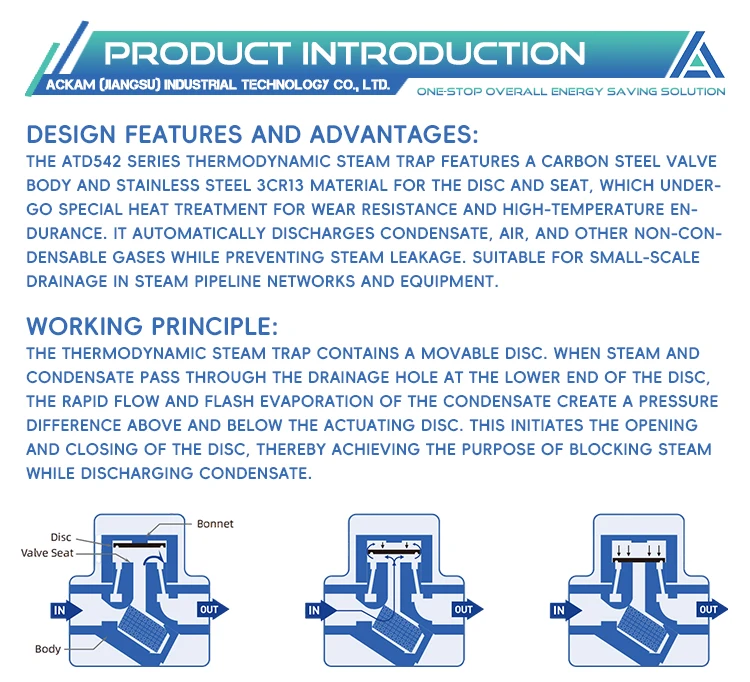

DESIGN FEATURES AND ADVANTAGES: THE ATD542 SERIES THERMODYNAMIC STEAM TRAP FEATURES A CARBON STEEL VALVE BODY AND STAINLESS STEEL 3CR13 MATERIAL FOR THE DISC AND SEAT, WHICH UNDER-GO SPECIAL HEAT TREATMENT FOR WEAR RESISTANCE AND HIGH-TEMPERATURE EN-DURANCE. IT AUTOMATICALLY DISCHARGES CONDENSATE, AIR, AND OTHER NON-CON-DENSABLE GASES WHILE PREVENTING STEAM LEAKAGE. SUITABLE FOR SMALL-SCALE DRAINAGE IN STEAM PIPELINE NETWORKS AND EQUIPMENT.

WORKING PRINCIPLE: THE THERMODYNAMIC STEAM TRAP CONTAINS A MOVABLE DISC. WHEN STEAM AND CONDENSATE PASS THROUGH THE DRAINAGE HOLE AT THE LOWER END OF THE DISC,THE RAPID FLOW AND FLASH EVAPORATION OF THE CONDENSATE CREATE A PRESSURE DIFFERENCE ABOVE AND BELOW THE ACTUATING DISC.THIS INITIATES THE OPENING AND CLOSING OF THE DISC, THEREBY ACHIEVING THE PURPOSE OF BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

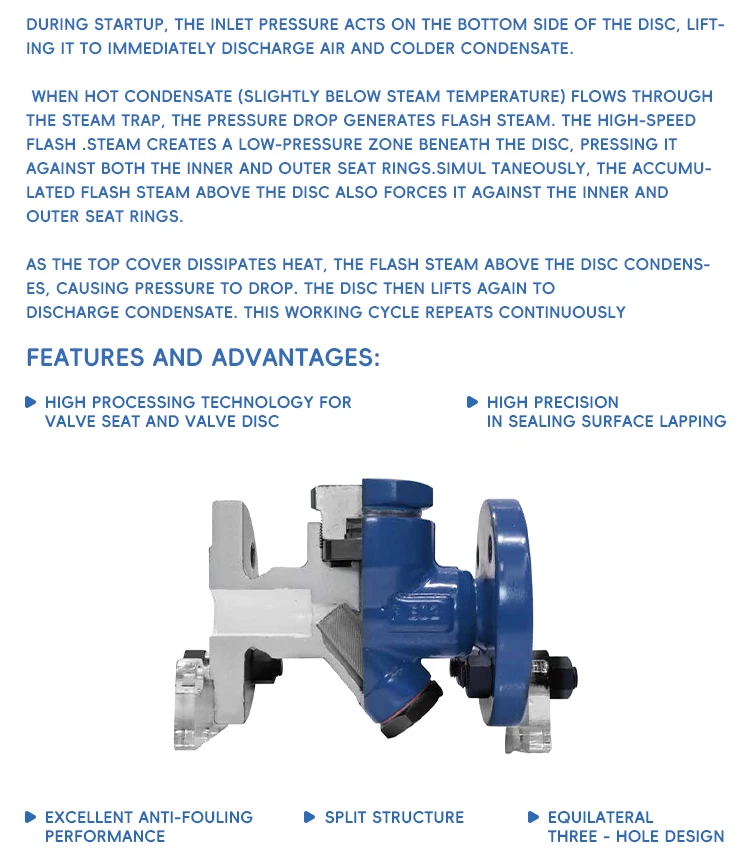

DURING STARTUP, THE INLET PRESSURE ACTS ON THE BOTTOM SIDE OF THE DISC, LIFT-ING IT TO IMMEDIATELY DISCHARGE AIR AND COLDER CONDENSATE.

WHEN HOT CONDENSATE (SLIGHTLY BELOW STEAM TEMPERATURE) FLOWS THROUGH THE STEAM TRAP, THE PRESSURE DROP GENERATES FLASH STEAM. THE HIGH-SPEED FLASH .STEAM CREATES A LOW-PRESSURE ZONE BENEATH THE DISC, PRESSING IT AGAINST BOTH THE INNER AND OUTER SEAT RINGS.SIMUL TANEOUSLY, THE ACCUMU-LATED FLASH STEAM ABOVE THE DISC ALSO FORCES IT AGAINST THE INNER AND OUTER SEAT RINGS.

AS THE TOP COVER DISSIPATES HEAT, THE FLASH STEAM ABOVE THE DISC CONDENS-ES,CAUSING PRESSURE TO DROP. THE DISC THEN LIFTS AGAIN TO DISCHARGE CONDENSATE. THIS WORKING CYCLE REPEATS CONTINUOUSLY

Model	Caliber	A	B	C	PMO	Weight
ATD542/ATD542H	1/2”	80	47	63	42	1.08
		3/4”	90	48	64	42	1.28
		1”	97	57	65	42	1.84
ATD542F/ATD542HF	DN15	150	47	63	42	2.08
		DN20	150	58	64	42	2.74
		DN25	160	57	65	42	3.76
