Operation Valve Control Long Service Life Single Seated Control Valve for Petrochemical Industry

Operation Valve Control Long Service Life Single Seated Control Valve for Petrochemical Industry - Advanced Flow Control Solutions for Critical Applications

Introduction
In the demanding environment of petrochemical processing, reliable valve control systems play a crucial role in ensuring operational efficiency and safety. The Operation Valve Control Long Service Life Single Seated Control Valve represents a significant advancement in flow control technology, specifically engineered for the rigorous requirements of petrochemical applications. This premium control valve combines innovative design principles with robust construction to deliver exceptional performance and longevity in challenging industrial environments.

Advanced Design and Engineering Excellence
Our single seated control valve embodies decades of engineering expertise in flow control solutions. The sophisticated design incorporates advanced materials and precision manufacturing techniques to ensure optimal flow characteristics and precise control capabilities. Every component is carefully engineered to work in harmony, resulting in a control valve that maintains consistent performance even under demanding process conditions common in petrochemical operations.

Superior Construction and Durability
The Operation Valve Control Long Service Life Single Seated Control valve features premium-grade materials selected specifically for their resistance to corrosion, wear, and chemical exposure. The robust construction ensures reliable operation in high-pressure and high-temperature environments, while the single-seated design provides exceptional control accuracy and minimal leakage characteristics.

Features and Benefits for Enhanced Performance
The innovative design of our single seated control valve delivers significant advantages in petrochemical applications. The precision-engineered seat and plug assembly ensures tight shutoff capabilities, reducing maintenance requirements and extending operational life. Advanced stem sealing technology provides superior fugitive emissions control, meeting stringent environmental regulations while maintaining process integrity.

The valve's responsive control characteristics enable precise flow modulation, essential for maintaining optimal process parameters in petrochemical operations. The balanced trim design reduces actuator force requirements, leading to improved efficiency and reduced operating costs. These features combine to create a control valve that excels in demanding applications while providing reliable, long-term performance.

Smart Control Integration Capabilities
Modern petrochemical facilities require intelligent control solutions, and our single seated control valve is designed to seamlessly integrate with advanced control systems. The valve supports various digital communication protocols and can be equipped with smart positioners for enhanced diagnostic capabilities and precise control feedback.

Applications Across Petrochemical Processes
The Operation Valve Control Long Service Life Single Seated Control Valve proves invaluable across numerous petrochemical applications. From process flow control in refining operations to precise chemical dosing in production systems, this versatile valve delivers consistent, reliable performance. It excels in applications requiring precise flow control, pressure regulation, and temperature management.

Industry-Specific Solutions
Our engineering team understands the unique challenges faced in different petrochemical processes. The single seated control valve can be optimized for specific applications, whether handling aggressive chemicals, high-temperature steam, or corrosive media. Contact our specialists to discuss your specific application requirements and receive expert guidance on the optimal valve configuration.

Quality Assurance and Compliance
Every Operation Valve Control Long Service Life Single Seated Control Valve undergoes rigorous quality control procedures throughout the manufacturing process. Our production facilities maintain strict adherence to international quality standards, ensuring consistent product excellence. The valves are tested under simulated operating conditions to verify performance specifications and reliability.

Customization Options
Understanding that each petrochemical operation has unique requirements, we offer extensive customization options for our single seated control valves. From material selection to trim design and control interface specifications, our engineering team can develop tailored solutions to meet your specific process needs.

Global Support and Service Network
Our commitment to customer success extends beyond product delivery. With a global network of technical support specialists and service centers, we ensure prompt assistance and maintenance support throughout the valve's operational life. Our team provides comprehensive documentation, installation guidance, and ongoing technical support to maximize your investment.

Why Choose Our Control Valve Solution
The Operation Valve Control Long Service Life Single Seated Control Valve represents the culmination of extensive research, development, and field experience in petrochemical applications. Our focus on quality, reliability, and customer support has established us as a trusted partner in the industry. The combination of advanced engineering, robust construction, and comprehensive support services ensures optimal performance and value for your operation.

Contact and Consultation
Experience the difference that premium flow control solutions can make in your petrochemical processes. Our technical specialists are ready to discuss your specific requirements and demonstrate how our single seated control valve can enhance your operations. Reach out to schedule a consultation and discover the ideal valve solution for your application needs.

BRIEF INTRODUCTION: AKJ SERIES SINGLE-SEATED CONTROL VALVE IS A KIND OF HIGH PERFORMANCE CON-TROL VALVE SPECIALLY DESIGNED FOR STEAM WORKING CONDITIONS, WITH SIMPLE STRUCTURE, HIGH REGULATION ACCURACY, STABLE HIGH TEMPERATURE CONTINUOUS OPERATION,RELIABLE PERFORMANCE, LARGE FLOW, FAST RESPONSE SPEED, CONVE-NIENT FIELD MAINTENANCE, LONG SERVICE LIFE AND OTHER CHARACTERISTICS.STAN-DARD DIAMETER RANGE COVERS DN20 THROUGH DN300. OPERATIONAL PRINCIPLE: CONTROL VALVE IS A VARIABLE THROTTLING DEVICE IN THE PROCESS CONTROL SYSTEM. IT IS A LOCAL RESISTANCE ELEMENT, WHICH IS DRIVEN BY POWER TO CHANGE THE THROTTLING AREA THROUGH THE MOVEMENT OF THE VALVE CORE, SO AS TO ADJUST THE PARAMETERS SUCH AS FLUID FLOW AND PRESSURE. THE FLOW EQUATION OF CONTROL VALVE CAN BE DETERMINED ACCORDING TO THE RELATION- SHIP OF FLUID DYNAMICS BY BERNOULLIS EQUATION.

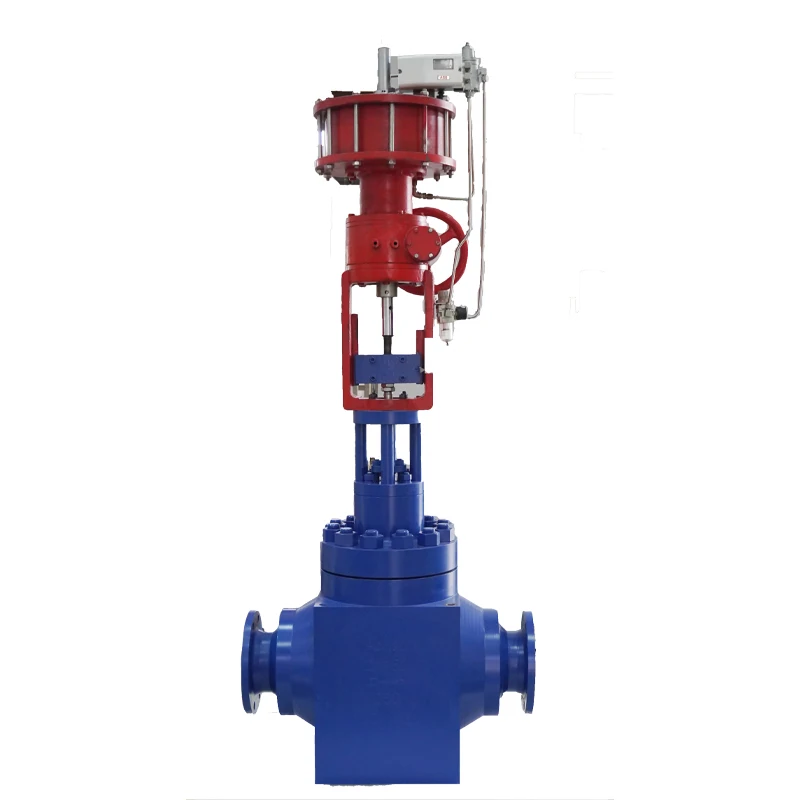

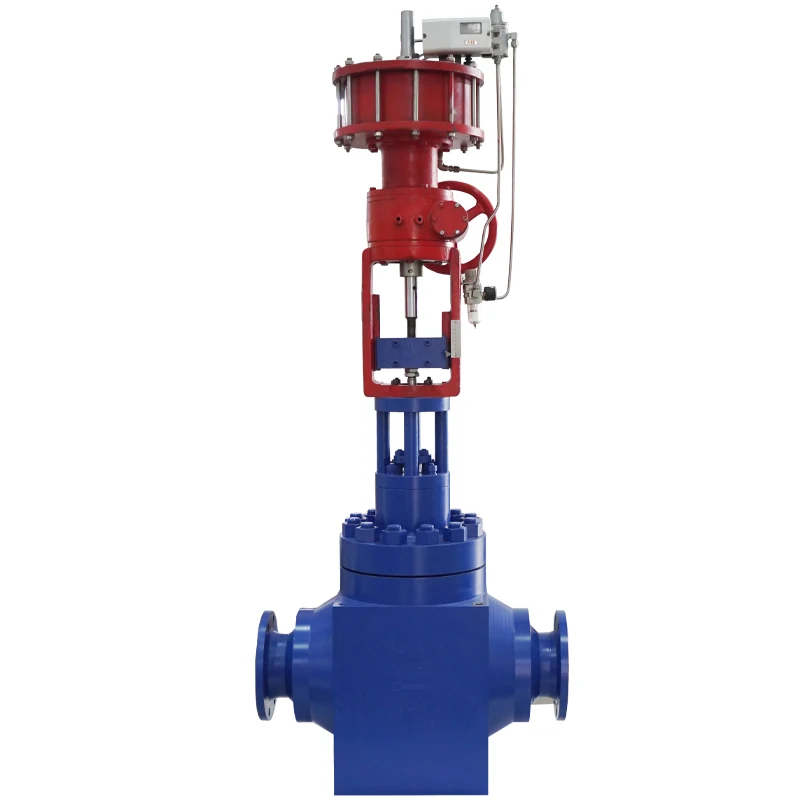

DN20-DN150 ANSI150/PN16/PN25/PN40/ANSI300 (with pneumatic actuator)
valve	DN			20	25	40	50	80	100	150
		L	ANSI150	184	184	222	254	298	352	451
				PN16	194	197	235	254	298	352	451
				PN25	194	197	235	267	318	368	473
				PN40	194	197	235	267	318	368	473
				ANSI300	194	197	235	267	318	368	473
		H1			56	56	74	77	108	139	175
		H2	＜299℃	80	80	136	174	188	214	260
				≥299℃	80	80	201	239	278	304	355
Execution Agency	φA	DM2	272											-
				DM3	-							400
		H3 (without handwheel)	DM2	408											-
				DM3	-							640
		H3 (with hand wheel)	DM2	590											-
				DM3	-							960
Valve + actuator Weight is approximately (Kg) (without handwheel)			DM2	35	36	42	47	75	106	-
				DM3	-							129	153	202
Valve + actuator Weight is approximately (Kg) (with handwheel)			DM2	42	43	49	54	82	113	-
				DM3	-							141	165	214
Note: The weight is the weight of ANSI300 series valve body + actuator

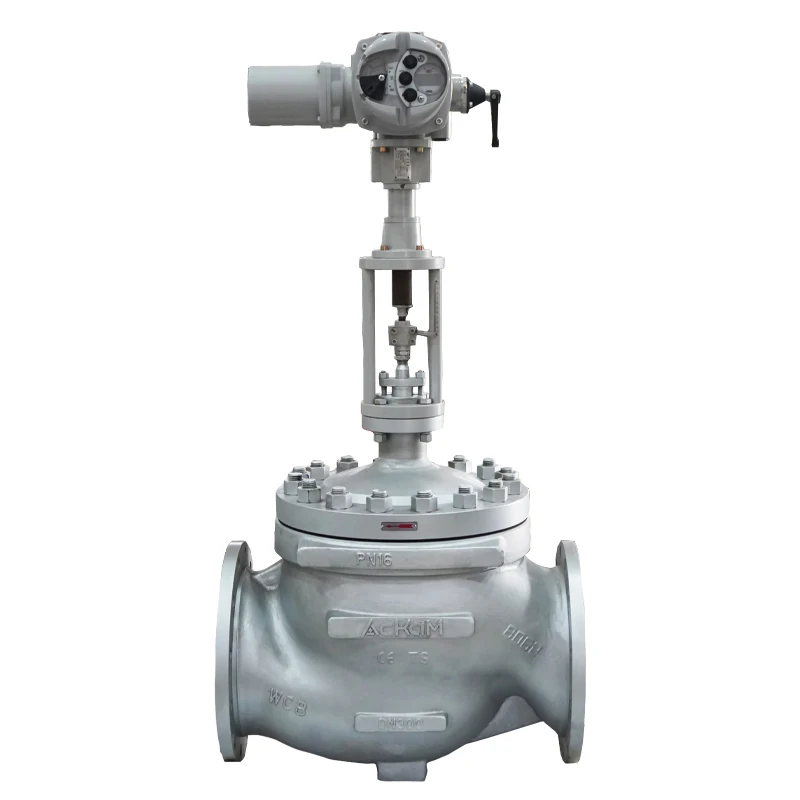

DN20-DN150 ANSI150/PN16/PN25/PN40/ANSI300 (with electric actuator)
valve	DN			20	25	40	50	80	100	150
		L	ANSI150	184	184	222	254	298	352	451
				PN16	194	197	235	254	298	352	451
				PN25	194	197	235	267	318	368	473
				PN40	194	197	235	267	318	368	473
				ANSI300	194	197	235	267	318	368	473
		H1			56	56	74	77	108	139	175
		H2	＜299℃	80	80	136	174	188	214	260
				≥299℃	80	80	201	239	278	304	355
Execution Agency	φA	E200L-A50	177											-
				E200L-B50	177											-
				E200L-C50	177											-
				E200L-D50	177											-
				E200L-E65	-							180
				E200L-F100	-							250
		H3	E200L-A50	504											-
				E200L-B50	504											-
				E200L-C50	544											-
				E200L-D50	544											-
				E200L-E65	-							613
				E200L-F100	-							770
Valve + actuator weight (kg)			E200L-A50	16.5	17	25	27	60	83	-
				E200L-B50	18.5	19	27	29	64	87	-
				E200L-C50	24.5	25	33	35	72	95	-
				E200L-D50	28.5	29	37	39	76	99	-
				E200L-E65	-	-	-	-	81	104	168
				E200L-F100	-	-	-	-	86	109	173
Note: The weight is the weight of ANSI300 series valve body + actuator
