AcKaM Chinese Professional ATD542 Thermodynamic Steam Trap Manual Control General Application

AcKaM Chinese Professional ATD542 Thermodynamic Steam Trap Manual Control General Application - Advanced Steam System Efficiency Solution

Introduction to Professional Steam Management
In today's industrial landscape, efficient steam system management stands as a cornerstone of operational excellence. The AcKaM Chinese Professional ATD542 Thermodynamic Steam Trap represents a significant advancement in steam system control technology, offering a reliable solution for facilities seeking to optimize their steam processes. This professional-grade steam trap combines robust engineering with practical functionality to deliver consistent performance across diverse industrial applications.

Comprehensive Product Overview
The ATD542 Thermodynamic Steam Trap embodies AcKaM's commitment to excellence in steam system components. As a manual control general application device, it efficiently manages condensate discharge while preventing live steam loss. The thermodynamic operating principle ensures reliable performance even under varying pressure conditions, making it an ideal choice for both standard and demanding industrial environments.

Advanced Thermodynamic Operation
The operating mechanism of the ATD542 steam trap utilizes sophisticated thermodynamic principles to differentiate between steam and condensate. This intelligent design enables precise control over steam systems, ensuring optimal energy efficiency and process stability. The manual control feature provides operators with additional flexibility to adjust the trap's performance based on specific system requirements.

Features and Benefits for Industrial Excellence
The ATD542 steam trap incorporates several innovative design elements that enhance its operational capabilities. The robust construction ensures exceptional durability in harsh industrial environments, while the thermodynamic disc mechanism provides consistent and reliable operation. The manual control functionality allows for precise adjustment of condensate discharge, enabling operators to fine-tune system performance according to specific process needs.

Enhanced Operational Efficiency
One of the most significant advantages of the AcKaM ATD542 is its ability to maintain high efficiency across varying operating conditions. The thermodynamic design minimizes steam loss while ensuring proper condensate removal, contributing to overall system efficiency and energy conservation. The manual control feature provides an additional layer of operational flexibility, allowing facilities to optimize their steam systems for specific applications.

Applications and Industrial Use Cases
The versatility of the ATD542 Thermodynamic Steam Trap makes it suitable for a wide range of industrial applications. From process manufacturing to chemical production facilities, this steam trap delivers reliable performance in steam main drainage, tracing lines, and various process equipment. Its robust design and efficient operation make it particularly valuable in industries where consistent steam quality and system reliability are paramount.

Industry-Specific Solutions
Manufacturing facilities across various sectors benefit from the ATD542's adaptable performance characteristics. The steam trap's capability to handle different pressure ranges and process conditions makes it an excellent choice for both traditional and specialized industrial applications. Whether in food processing, textile manufacturing, or chemical production, the ATD542 provides consistent and reliable steam system management.

Quality Control and International Standards
AcKaM maintains rigorous quality control processes throughout the manufacturing of the ATD542 steam trap. Each unit undergoes comprehensive testing to ensure compliance with international industry standards and performance requirements. Our commitment to quality extends from material selection through final assembly and testing, ensuring every steam trap meets the highest standards of reliability and performance.

Customization and Technical Support
Understanding that different industries have unique requirements, we offer customization options for the ATD542 steam trap. Our engineering team works closely with clients to understand their specific needs and provide tailored solutions. Technical support is available throughout the selection, installation, and operation phases to ensure optimal system performance.

Professional Installation and Maintenance Support
To maximize the benefits of the ATD542 steam trap, we provide comprehensive installation guidance and maintenance support. Our technical team can assist with system integration and offer recommendations for optimal placement and configuration. Regular maintenance procedures are straightforward, helping to ensure long-term reliability and performance.

Why Choose AcKaM Steam System Solutions
AcKaM's extensive experience in steam system components makes us a trusted partner for industrial steam management solutions. Our focus on quality, reliability, and customer support sets us apart in the industry. The ATD542 Thermodynamic Steam Trap represents our commitment to providing efficient, durable, and user-friendly steam system components.

Contact and Technical Consultation
Experience the advantages of professional steam system management with the AcKaM ATD542 Thermodynamic Steam Trap. Our technical team is ready to discuss your specific requirements and provide detailed information about specifications, customization options, and system integration. Reach out today to explore how our steam trap solutions can enhance your facility's operational efficiency.

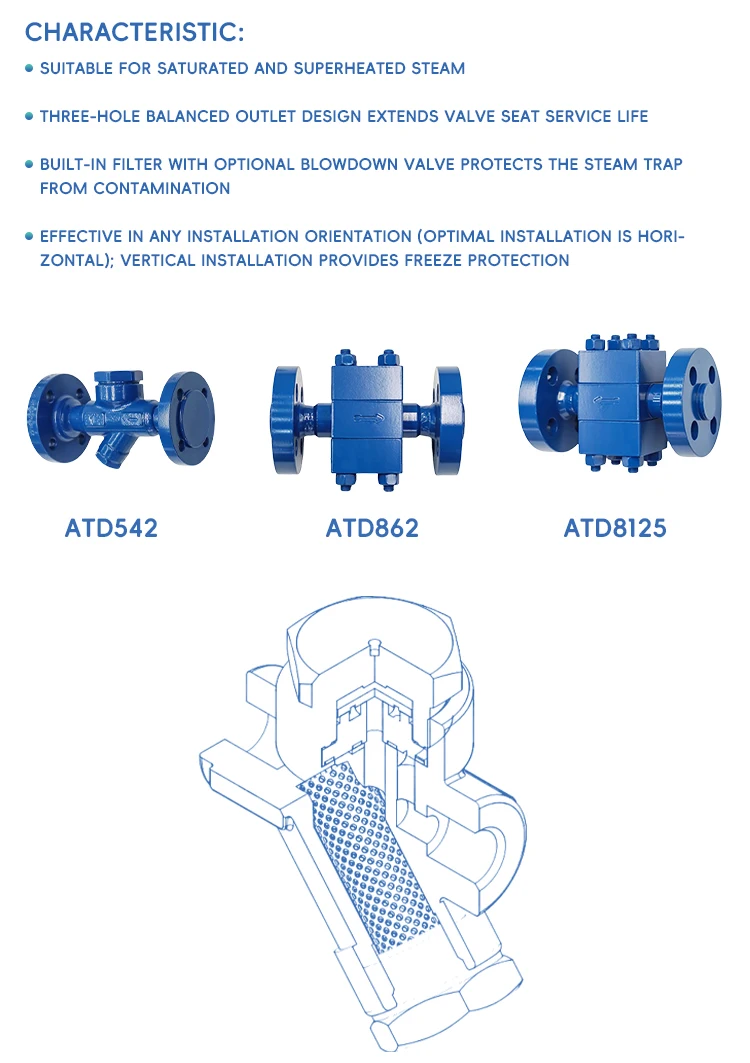

DESIGN FEATURES AND ADVANTAGES: THE ATD542 SERIES THERMODYNAMIC STEAM TRAP FEATURES A CARBON STEEL VALVE BODY AND STAINLESS STEEL 3CR13 MATERIAL FOR THE DISC AND SEAT, WHICH UNDER-GO SPECIAL HEAT TREATMENT FOR WEAR RESISTANCE AND HIGH-TEMPERATURE EN-DURANCE. IT AUTOMATICALLY DISCHARGES CONDENSATE, AIR, AND OTHER NON-CON-DENSABLE GASES WHILE PREVENTING STEAM LEAKAGE. SUITABLE FOR SMALL-SCALE DRAINAGE IN STEAM PIPELINE NETWORKS AND EQUIPMENT.

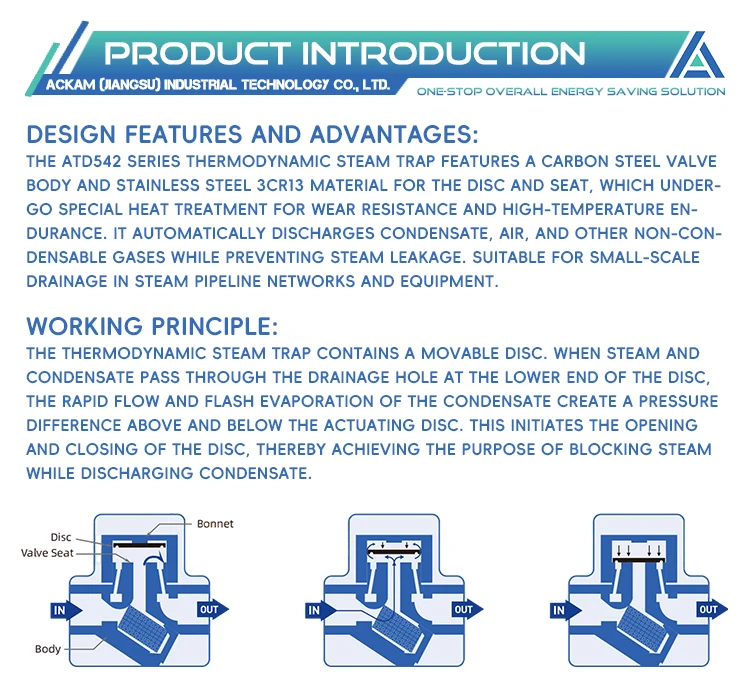

WORKING PRINCIPLE: THE THERMODYNAMIC STEAM TRAP CONTAINS A MOVABLE DISC. WHEN STEAM AND CONDENSATE PASS THROUGH THE DRAINAGE HOLE AT THE LOWER END OF THE DISC,THE RAPID FLOW AND FLASH EVAPORATION OF THE CONDENSATE CREATE A PRESSURE DIFFERENCE ABOVE AND BELOW THE ACTUATING DISC.THIS INITIATES THE OPENING AND CLOSING OF THE DISC, THEREBY ACHIEVING THE PURPOSE OF BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

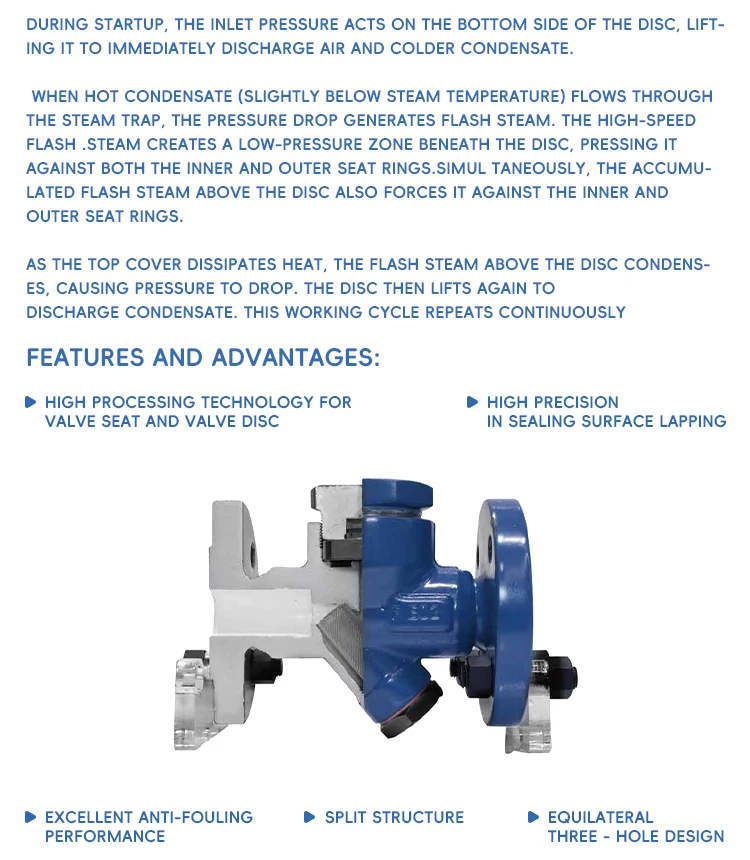

DURING STARTUP, THE INLET PRESSURE ACTS ON THE BOTTOM SIDE OF THE DISC, LIFT-ING IT TO IMMEDIATELY DISCHARGE AIR AND COLDER CONDENSATE.

WHEN HOT CONDENSATE (SLIGHTLY BELOW STEAM TEMPERATURE) FLOWS THROUGH THE STEAM TRAP, THE PRESSURE DROP GENERATES FLASH STEAM. THE HIGH-SPEED FLASH .STEAM CREATES A LOW-PRESSURE ZONE BENEATH THE DISC, PRESSING IT AGAINST BOTH THE INNER AND OUTER SEAT RINGS.SIMUL TANEOUSLY, THE ACCUMU-LATED FLASH STEAM ABOVE THE DISC ALSO FORCES IT AGAINST THE INNER AND OUTER SEAT RINGS.

AS THE TOP COVER DISSIPATES HEAT, THE FLASH STEAM ABOVE THE DISC CONDENS-ES,CAUSING PRESSURE TO DROP. THE DISC THEN LIFTS AGAIN TO DISCHARGE CONDENSATE. THIS WORKING CYCLE REPEATS CONTINUOUSLY

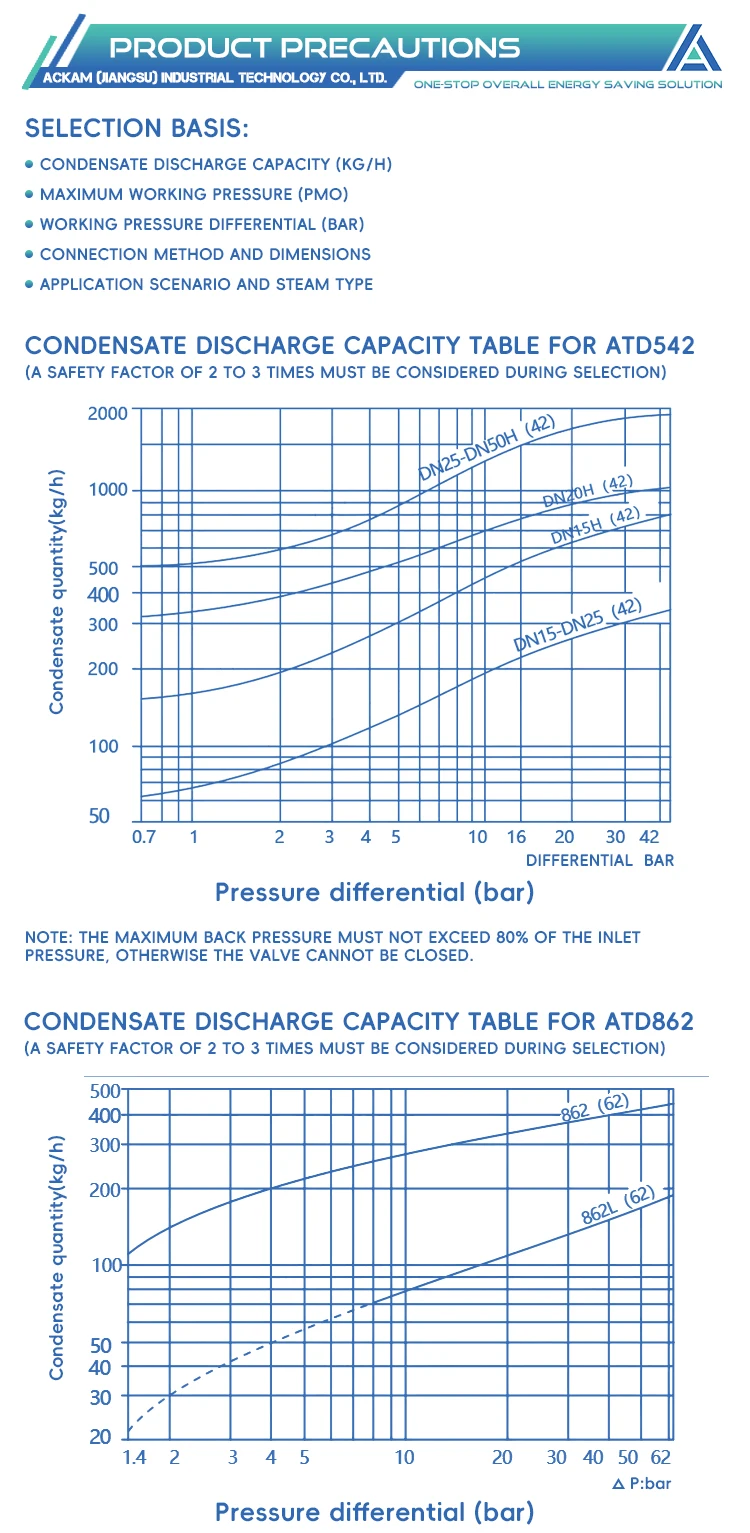

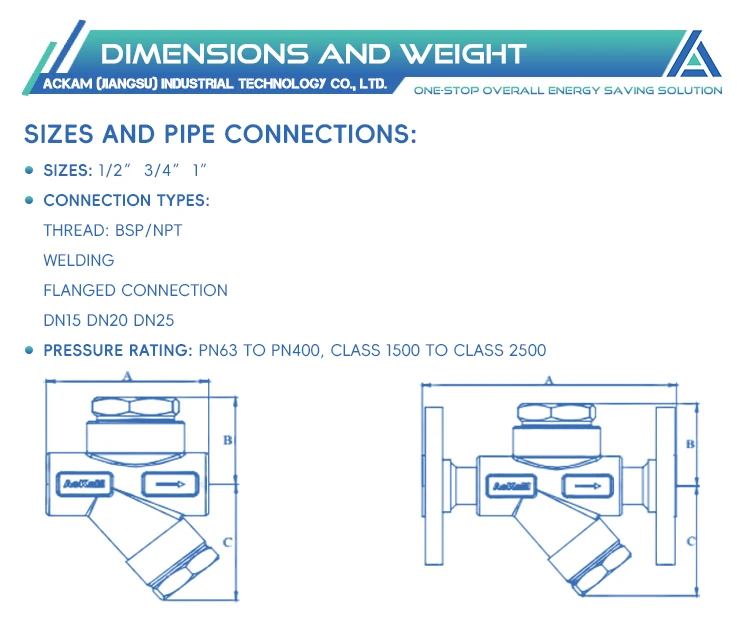

Model	Caliber	A	B	C	PMO	Weight
ATD542/ATD542H	1/2”	80	47	63	42	1.08
		3/4”	90	48	64	42	1.28
		1”	97	57	65	42	1.84
ATD542F/ATD542HF	DN15	150	47	63	42	2.08
		DN20	150	58	64	42	2.74
		DN25	160	57	65	42	3.76
