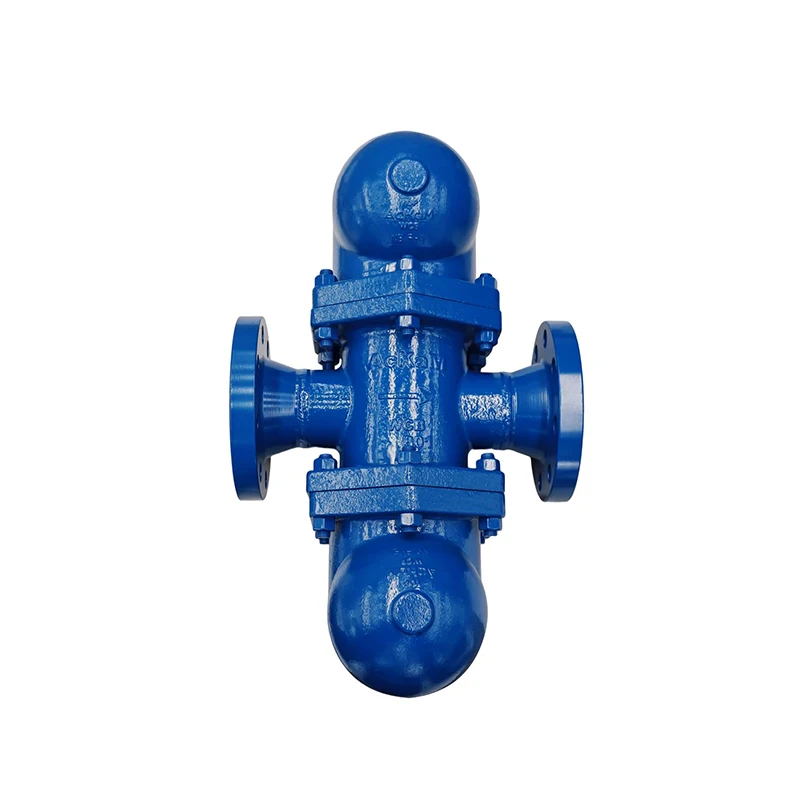

Large Displacement High Strength Steam Safety Valve Compact Structure Lever Ball Float Steam Traps

Large Displacement High Strength Steam Safety Valve Compact Structure Lever Ball Float Steam Traps - Advanced Steam System Protection Solution

Introduction
In modern industrial steam systems, efficient steam trap management is crucial for maintaining operational excellence and energy efficiency. The Large Displacement High Strength Steam Safety Valve with Compact Structure represents a significant advancement in steam system protection technology. This innovative lever ball float steam trap combines robust construction with precision engineering to deliver superior condensate handling and system protection.

Advanced Steam System Protection Technology
Our advanced steam safety valve system integrates cutting-edge design principles with time-tested mechanical functionality. The compact structure optimizes space utilization while maintaining exceptional performance capabilities. This innovative approach to steam trap design ensures reliable operation even under demanding industrial conditions, making it an ideal choice for facilities seeking to enhance their steam system efficiency.

Superior Construction and Design Philosophy
The lever ball float mechanism at the heart of this steam trap demonstrates our commitment to engineering excellence. Each component is carefully designed and manufactured to ensure optimal performance and longevity. The high-strength materials used in construction provide exceptional durability while maintaining precise operational control.

Features and Benefits
The integration of large displacement capability with a compact structure sets this steam trap apart from conventional solutions. The innovative lever ball float mechanism ensures responsive condensate discharge while maintaining steam retention. This balanced performance helps maintain system efficiency and reduces energy waste. The high-strength construction materials provide exceptional durability under various operating conditions, while the compact design facilitates installation in space-constrained environments.

Enhanced Operational Efficiency
Our steam trap's advanced design promotes continuous, efficient operation by combining rapid condensate discharge with reliable steam sealing. The large displacement capacity ensures effective handling of varying condensate loads, while the precision-engineered valve mechanism maintains system integrity. These features work together to optimize steam system performance and reduce maintenance requirements.

Applications and Industry Solutions
This versatile steam trap system finds extensive application across diverse industrial sectors. Process manufacturing facilities benefit from its reliable condensate handling capabilities, while power generation plants appreciate its robust construction and efficient operation. The system's adaptability makes it equally suitable for chemical processing, textile manufacturing, and food production facilities.

Versatile Implementation Options
The steam trap's compact structure allows for flexible installation configurations, making it suitable for both new installations and system upgrades. Its adaptable design accommodates various mounting orientations and connection types, providing solutions for different application requirements.

Quality Assurance and Compliance
Each steam trap undergoes rigorous quality control procedures throughout the manufacturing process. Our commitment to excellence ensures compliance with relevant international standards and industry regulations. Regular testing and inspection protocols verify performance consistency and reliability.

Customization and Integration Solutions
Understanding that different applications may require specific configurations, we offer customization options to meet unique operational requirements. Our engineering team works closely with clients to develop optimal solutions for their steam system needs.

Professional Support and Service
Our technical support team provides comprehensive assistance throughout the selection, installation, and maintenance phases. Expert guidance ensures proper system integration and optimal performance optimization.

Installation and Maintenance Expertise
Professional installation support and maintenance guidance help maximize system efficiency and longevity. Our team offers detailed documentation and technical consultation to facilitate smooth implementation and operation.

Global Distribution and Logistics
Our established logistics network ensures efficient delivery and support services worldwide. Careful packaging and handling procedures protect product integrity during transportation and storage.

Partnership and Long-term Value
Choosing our steam trap solution means partnering with a leader in industrial steam system technology. Our commitment to innovation, quality, and customer support ensures long-term value for your investment.

Contact and Consultation
For detailed technical specifications, customization options, and expert consultation, we invite you to connect with our specialized team. Our engineers are ready to discuss your specific requirements and develop tailored solutions that optimize your steam system performance.

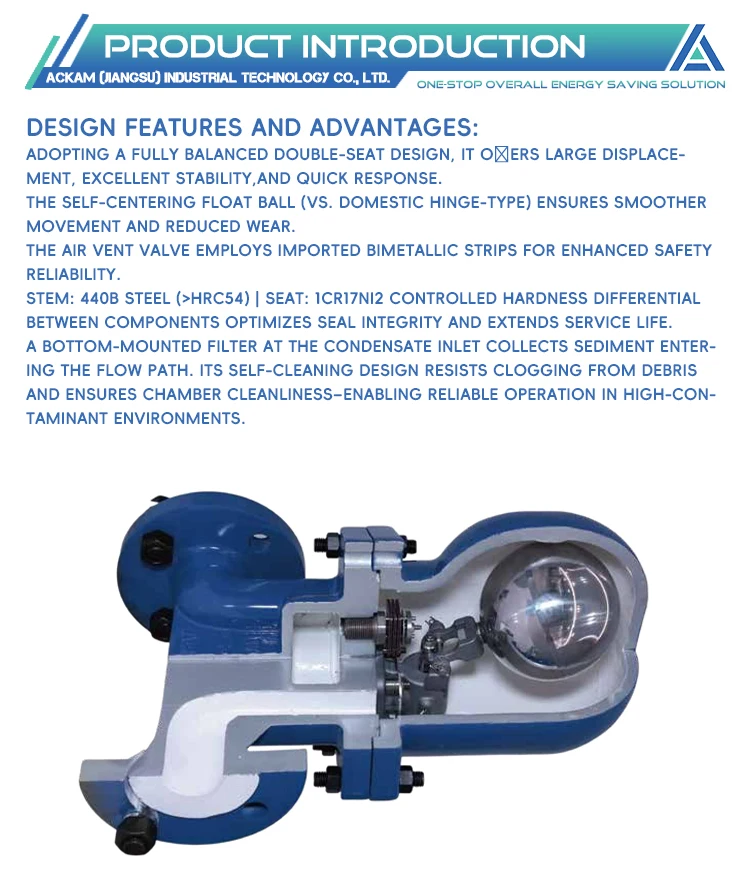

DESIGN FEATURES AND ADVANTAGES: ADOPTING A FULLY BALANCED DOUBLE-SEAT DESIGN, IT O ERS LARGE DISPLACE-MENT, EXCELLENT STABILITY,AND QUICK RESPONSE. THE SELF-CENTERING FLOAT BALL (VS.DOMESTIC HINGE-TYPE) ENSURES SMOOTHER MOVEMENT AND REDUCED WEAR. THE AIR VENT VALVE EMPLOYS IMPORTED BIMETALLIC STRIPS FOR ENHANCED SAFETY RELIABILITY. STEM: 440B STEEL ({}HRC54)| SEAT: 1CR17NI2 CONTROLLED HARDNESS DIFFERENTIAL BETWEEN COMPONENTS OPTIMIZES SEAL INTEGRITY AND EXTENDS SERVICE LIFE.A BOTTOM-MOUNTED FILTER AT THE CONDENSATE INLET COLLECTS SEDIMENT ENTER-ING THE FLOW PATH.ITS SELF-CLEANING DESIGN RESISTS CLOGGING FROM DEBRIS AND ENSURES CHAMBER CLEANLINESS-ENABLING RELIABLE OPERATION IN HIGH-CON-TAMINANT ENVIRONMENTS.

WORKING PRINCIPLE: THIS LEVER FLOAT TRAP COMBINES A FLOAT-LEVER MECHANISM WITH THERMOSTATIC ELEMENTS. DURING STARTUP, AIR IS AUTOMATICALLY DISCHARGED THROUGH THE THERMOSTATIC AIR VENT. AS COLD CONDENSATE ENTERS, THE RISING LIQUID LEVEL LIFTS THE FLOAT TO OPEN THE VALVE VIA THE LEVER MECHANISM FOR RAPID DRAIN-AGE. WHEN STEAM ENTERS AND TEMPERATURE RISES, THE BIMETALLIC ELEMENT IN THE AIR VENT EXPANDS TO CLOSE THE VENT. THE TRAP THEN OPERATES NORMALLY-THE FLOAT MOVES WITH CONDENSATE LEVEL TO DISCHARGE WATER WHILE BLOCKING STEAM.

Working Conditions
Carbon Steel
Valve Body Design Conditions		PN50
Maximum Allowable Pressure	PMA	32Bar@400℃
Maximum Allowable Temperature	TMA	400℃@32Bar
Stainless Steel
Valve Body Design Conditions		PN50
Maximum Allowable Pressure	PMA	32Bar@260℃
Maximum Allowable Temperature	TMA	500℃@26Bar

FEATURES:

HARDENED ALLOY STEEL DISC & SEAT FOR HIGH WEAR RESISTANCE

INTEGRATED BIMETALLIC THERMOSTATIC AIR VENT WITH IN-SERVICE MAINTENANCE CAPABILITY

INTERNAL EROSION-RESISTANT BAFFLE PROTECTS VALVE FLOW CHANNELS

INLET IMPACT BAFFLE FOR WATER HAMMER PROTECTION

COST-EFFECTIVE DUCTILE IRON CONSTRUCTION FOR LOW-PRESSURE APPLICATIONS
