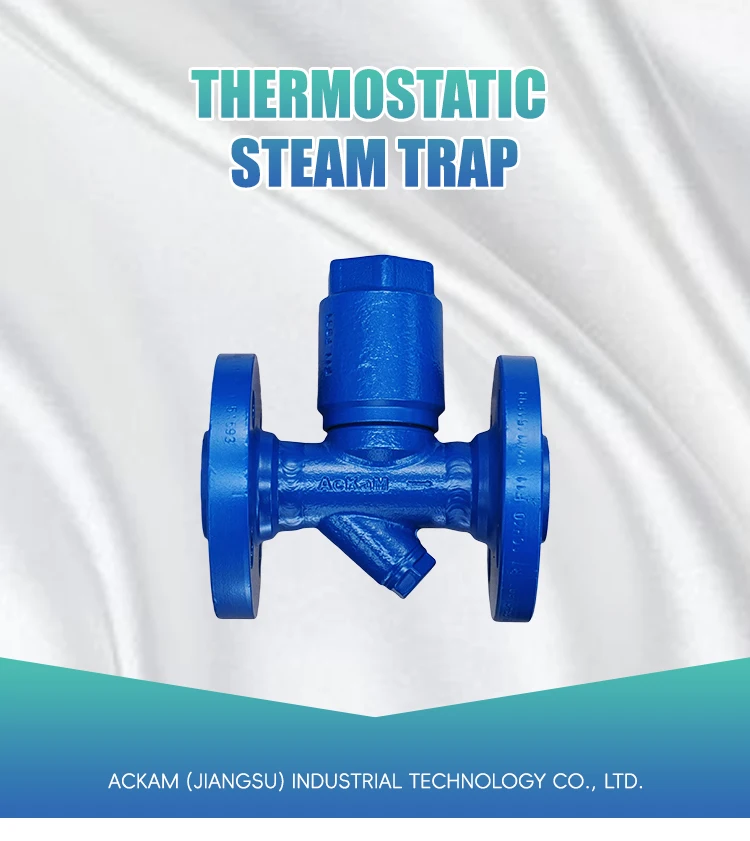

Good Sealing Steam Safety Valve Easy to Disassemble Not Easy to Deform Thermostatic Steam Traps

Good Sealing Steam Safety Valve Easy to Disassemble Not Easy to Deform Thermostatic Steam Traps - Advanced Steam Management Solution

Introduction
The Good Sealing Steam Safety Valve represents a significant advancement in thermostatic steam trap technology, combining superior sealing capabilities with user-friendly maintenance features. This innovative steam management solution addresses the critical needs of industrial processes where reliable steam control and energy efficiency are paramount. Our thermostatic steam traps are engineered to deliver consistent performance while offering unprecedented ease of maintenance and durability.

Product Overview
The thermostatic steam trap system incorporates advanced sealing technology that ensures optimal steam retention and condensate discharge. Our engineering team has developed this steam safety valve with a focus on practical functionality, making it remarkably easy to disassemble for routine maintenance while maintaining structural integrity. The robust construction prevents deformation even under challenging operating conditions, providing reliable service throughout its extended operational life.

Advanced Features & Benefits
The innovative design of our steam safety valve incorporates multiple layers of sealing technology that work in harmony to prevent steam leakage. This sophisticated sealing mechanism adapts to varying pressure conditions, ensuring consistent performance across different operating environments. The easy-to-disassemble feature significantly reduces maintenance time and costs, allowing for quick inspection and cleaning without specialized tools.

The thermostatic steam trap's resistance to deformation stems from carefully selected materials and precision engineering. This structural stability ensures that the valve maintains its sealing properties even after numerous maintenance cycles. The system's thermal responsiveness allows for efficient condensate discharge while preventing live steam loss, contributing to overall energy efficiency.

Industrial Applications & Use Cases
These thermostatic steam traps excel in diverse industrial settings, from process manufacturing to chemical production facilities. The robust construction makes them particularly suitable for high-pressure steam systems where reliability is crucial. Their consistent performance in variable temperature environments makes them ideal for facilities operating continuous production cycles.

The steam safety valve's adaptability allows it to function effectively in both main steam lines and secondary processing equipment. Its reliable operation supports critical processes in pharmaceutical manufacturing, food processing, and textile production, where precise steam control directly impacts product quality.

Quality Assurance & Compliance Standards
Our commitment to quality is evident in every aspect of the steam trap's production. Each unit undergoes comprehensive testing procedures to verify sealing integrity and operational reliability. The manufacturing process adheres to international quality management standards, ensuring consistent product performance and safety compliance.

Customization & Engineering Support
Understanding that different industries have unique requirements, we offer customization options for our thermostatic steam traps. Our engineering team collaborates with clients to optimize the valve design for specific applications and operating conditions. From material selection to connection configurations, we can tailor solutions to match exact operational needs.

Installation & Maintenance Guidance
Professional installation support ensures optimal performance from day one. Our technical team provides comprehensive guidance on proper installation procedures and maintenance protocols. The easy-to-disassemble design simplifies regular maintenance tasks, while detailed documentation helps maintenance teams perform service efficiently.

Sustainable Performance & Energy Efficiency
The superior sealing capabilities of these steam traps contribute significantly to energy conservation efforts. By preventing steam loss and ensuring efficient condensate removal, they help reduce overall energy consumption in steam systems. The durable construction and resistance to deformation mean fewer replacement requirements, supporting sustainable operational practices.

Partnership & Support Services
We pride ourselves on building long-term partnerships with our clients. Our support extends beyond product delivery to include comprehensive after-sales service and technical consultation. Our team of steam system specialists remains available to assist with optimization strategies and troubleshooting support throughout the product's lifecycle.

Contact & Consultation
Experience the advanced capabilities of our thermostatic steam traps by engaging with our technical team. Our specialists are ready to discuss your specific steam system requirements and demonstrate how our solutions can enhance your operational efficiency. Reach out today to explore customized solutions that align with your industrial steam management needs.

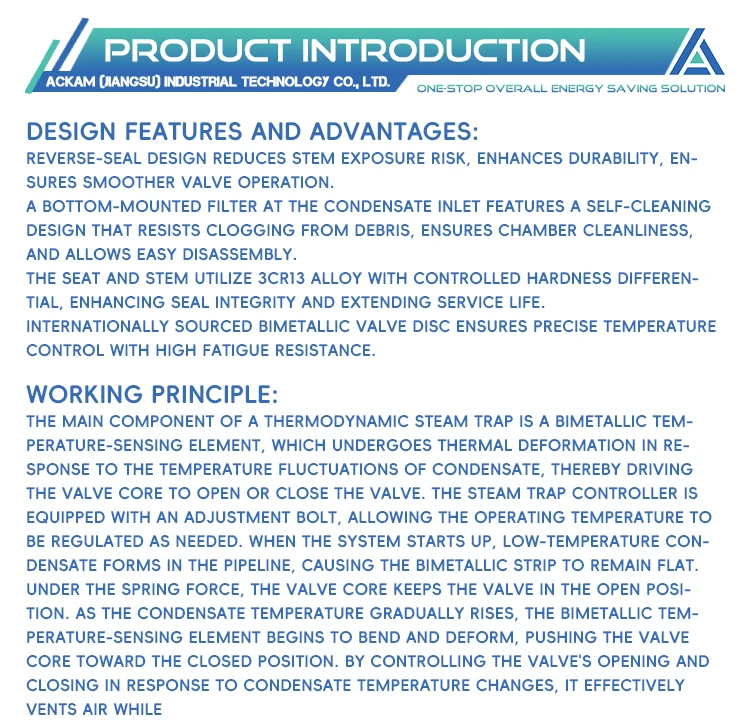

DESIGN FEATURES AND ADVANTAGES: REVERSE-SEAL DESIGN REDUCES STEM EXPOSURE RISK, ENHANCES DURABILITY, EN-SURES SMOOTHER VALVE OPERATION. A BOTTOM-MOUNTED FILTER AT THE CONDENSATE INLET FEATURES A SELF-CLEANING DESIGN THAT RESISTS CLOGGING FROM DEBRIS, ENSURES CHAMBER CLEANLINESS, AND ALLOWS EASY DISASSEMBLY. THE SEAT AND STEM UTILIZE 3CR13 ALLOY WITH CONTROLLED HARDNESS DIFFEREN-TIAL, ENHANCING SEAL INTEGRITY AND EXTENDING SERVICE LIFE. INTERNATIONALLY SOURCED BIMETALLIC VALVE DISC ENSURES PRECISE TEMPERATURE CONTROL WITH HIGH FATIGUE RESISTANCE.

WORKING PRINCIPLE: THE MAIN COMPONENT OF A THERMODYNAMIC STEAM TRAP IS A BIMETALLIC TEM-PERATURE-SENSING ELEMENT, WHICH UNDERGOES THERMAL DEFORMATION IN RE-SPONSE TO THE TEMPERATURE FLUCTUATIONS OF CONDENSATE, THEREBY DRIVING THE VALVE CORE TO OPEN OR CLOSE THE VALVE. THE STEAM TRAP CONTROLLER IS EQUIPPED WITH AN ADJUSTMENT BOLT, ALLOWING THE OPERATING TEMPERATURE TO BE REGULATED AS NEEDED. WHEN THE SYSTEM STARTS UP, LOW-TEMPERATURE CON-DENSATE FORMS IN THE PIPELINE, CAUSING THE BIMETALLIC STRIP TO REMAIN FLAT.UNDER THE SPRING FORCE, THE VALVE CORE KEEPS THE VALVE IN THE OPEN POSI- TION. AS THE CONDENSATE TEMPERATURE GRADUALLY RISES, THE BIMETALLIC TEM-PERATURE-SENSING ELEMENT BEGINS TO BEND AND DEFORM, PUSHING THE VALVE CORE TOWARD THE CLOSED POSITION.BY CONTROLLING THE VALVE'S OPENING AND CLOSING IN RESPONSE TO CONDENSATE TEMPERATURE CHANGES, IT EFFECTIVELY VENTS AIR WHILE

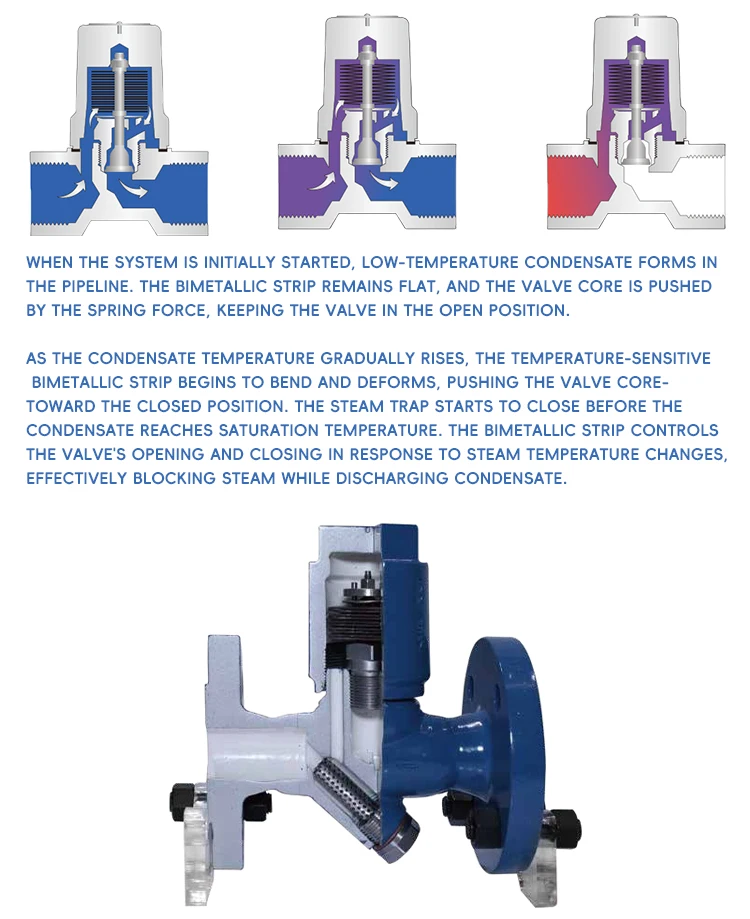

WHEN THE SYSTEM IS INITIALLY STARTED,LOW-TEMPERATURE CONDENSATE FORMS IN THE PIPELINE. THE BIMETALLIC STRIP REMAINS FLAT, AND THE VALVE CORE IS PUSHED BY THE SPRING FORCE, KEEPING THE VALVE IN THE OPEN POSITION.AS THE CONDENSATE TEMPERATURE GRADUALLY RISES, THE TEMPERATURE-SENSITIVE BIMETALLIC STRIP BEGINS TO BEND AND DEFORMS, PUSHING THE VALVE CORE-TOWARD THE CLOSED POSITION. THE STEAM TRAP STARTS TO CLOSE BEFORE THE CONDENSATE REACHES SATURATION TEMPERATURE. THE BIMETALLIC STRIP CONTROLS THE VALVE'S OPENING AND CLOSING IN RESPONSE TO STEAM TEMPERATURE CHANGES, EFFECTIVELY BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

CHARACTERISTIC:

EXTERNALLY MOUNTED FILTER, FACILITATING EASY DISASSEMBLY AND CLEANING; AN OPTIONAL BLOWDOWN VALVE CAN BE INSTALLED TO PROTECT THE STEAM TRAP FROM CONTAMINATION.

CHECK FUNCTION AVAILABLE.

BUILT-IN ANTI-CORROSION, WATER HAMMER-RESISTANT BIMETALLIC CONTROLLER THAT IS ALSO FREEZE-RESISTANT.

AUTOMATICALLY VENTS AIR AND NON-CONDENSABLE GASES, ACCELERATING EQUIP- MENT WARM-UP.

QUICK RESPONSE WITH NO THERMAL INERTIA FROM METALLIC COMPONENTS.

DISCHARGES CONDENSATE BELOW SATURATION TEMPERATURE, REDUCING THE AMOUNT OF SECONDARY STEAM.

Dimensions and weights (approximate) in mm and kg
Size and Weight			Connection Method
				Flange Connection					Thread
mm			15	20	25	15	20	25
Caliber	Inch	1/2	3/4	1	1/2	3/4	1
Size（mm）	L	150	150	160	128	131	140
		B	108					108
		C	54					54
Approximate weight	（kg）	3.2	3.7	4.2	1.7	1.7	1.6

Size and Weight			Connection Method
				Flange Connection					Thread
mm			15	20	25	15	20	25
Caliber	Inch	1/2	3/4	1	1/2	3/4	1
Size（mm）	L	70	78	162	80	80	80
		B	108					108
		C	54					54
Approximate weight	（kg）	1.7	1.7			2.2	2.3	2.4
(Structural length and flange can be customized according to customer requirements)
