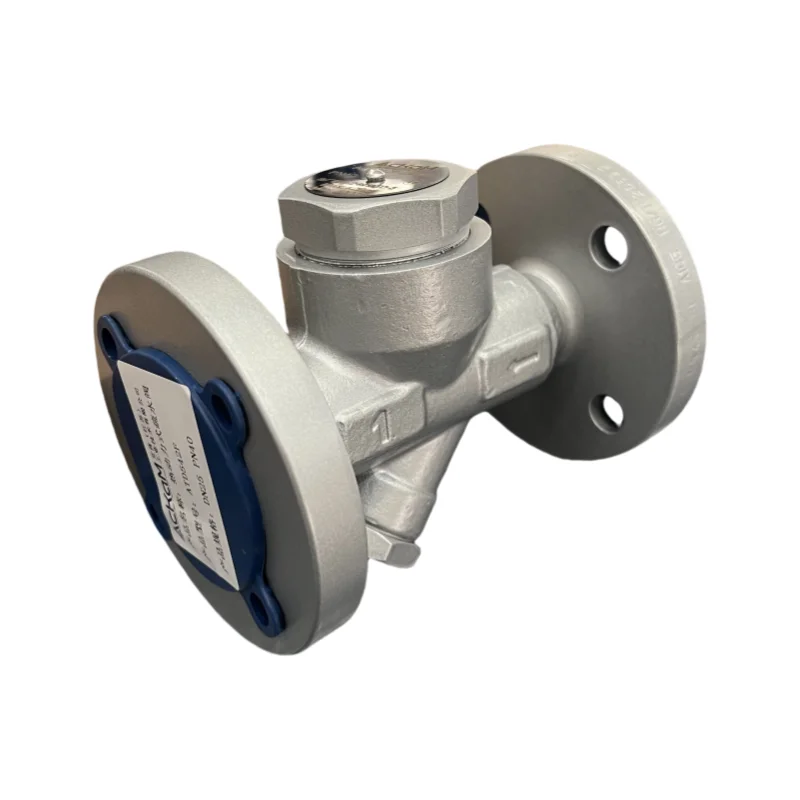

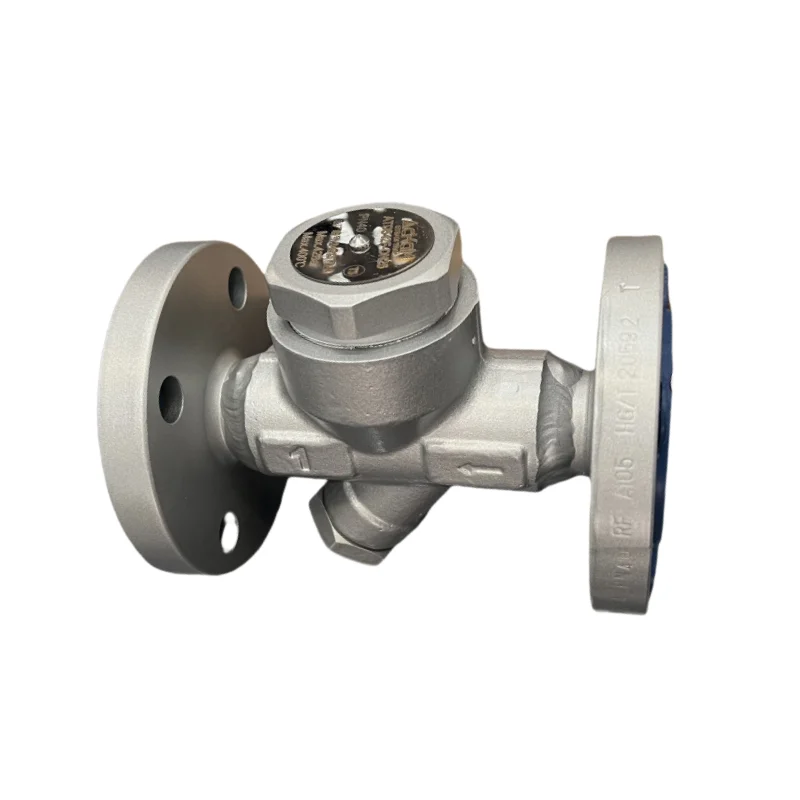

DN25 Manual Cast Steel Thermodynamic Steam Trap Valve for General Application Balance Pressure Steam Trap

DN25 Manual Cast Steel Thermodynamic Steam Trap Valve for General Application Balance Pressure Steam Trap - Advanced Steam System Efficiency Solution

Introduction
The DN25 Manual Cast Steel Thermodynamic Steam Trap Valve represents a significant advancement in steam system management technology. As an essential component for industrial steam applications, this thermodynamic steam trap combines robust construction with precise operation to deliver optimal condensate removal while preventing live steam loss. Engineered with the demands of modern industrial processes in mind, this balance pressure steam trap offers reliable performance across diverse operating conditions.

Product Overview
Our thermodynamic steam trap valve showcases the perfect balance between innovative design and practical functionality. The cast steel construction ensures exceptional durability while maintaining cost-effectiveness for general applications. The manual operation feature provides operators with direct control over the condensate discharge process, enabling more efficient system management and maintenance procedures.

Superior Construction and Design
The valve body is crafted from premium-grade cast steel, offering superior resistance to wear, corrosion, and high-pressure conditions. The thermodynamic operating principle ensures consistent performance even under varying load conditions, making it an ideal choice for both intermittent and continuous operation scenarios.

Features & Benefits
The DN25 Manual Cast Steel Thermodynamic Steam Trap incorporates advanced engineering features that set it apart in the market. The balanced pressure design ensures stable operation across varying system conditions, reducing the risk of steam loss while maintaining optimal condensate removal rates. The manual override capability provides operators with additional control when needed, particularly during startup or maintenance procedures.

The trap's thermodynamic operation principle utilizes the difference in dynamic forces between steam and condensate to achieve efficient separation. This results in improved energy efficiency and reduced maintenance requirements compared to traditional steam trap designs. The robust cast steel construction ensures extended service life even in demanding industrial environments, while the streamlined internal geometry minimizes wear and reduces the risk of blockages.

Performance Advantages
The integration of advanced sealing technology ensures minimal steam loss during operation, contributing to overall system efficiency. The valve's response to varying load conditions is remarkably swift, preventing waterlogging while maintaining steam quality in the system. This balanced approach to steam trap operation translates to more stable process temperatures and improved product quality in end-use applications.

Applications & Use Cases
This thermodynamic steam trap valve finds extensive application across various industrial sectors. In process manufacturing, it effectively manages condensate removal from steam lines, heat exchangers, and process equipment. The food and beverage industry benefits from its reliable operation in sterilization and cooking processes, while textile manufacturers rely on its consistent performance for pressing and drying operations.

Industry-Specific Solutions
Chemical processing plants utilize these steam traps in reaction vessel heating systems and distillation processes. In pharmaceutical manufacturing, the trap's precise operation helps maintain critical process temperatures. The power generation sector benefits from improved steam system efficiency in various auxiliary steam applications.

Quality Control & Compliance
Each DN25 Manual Cast Steel Thermodynamic Steam Trap undergoes rigorous testing and quality control procedures throughout the manufacturing process. Our production facilities maintain strict adherence to international quality standards, ensuring consistent product performance and reliability.

Customization & Branding Options
Understanding that different applications may require specific modifications, we offer customization options to meet unique operational requirements. Our engineering team works closely with clients to develop tailored solutions that align with their specific steam system needs.

Packaging & Logistics Support
Our comprehensive packaging solutions ensure safe delivery of the steam traps to any global destination. Each unit receives appropriate protection against shipping damage, complete with clear identification and handling instructions.

Why Choose Us
Our expertise in thermodynamic steam trap technology spans many years, during which we've built a reputation for excellence in both product quality and customer support. We maintain a dedicated technical support team ready to assist with selection, installation, and maintenance guidance.

Installation & Maintenance Support
Professional installation guidance and ongoing maintenance support ensure optimal performance throughout the steam trap's service life. Our technical documentation provides comprehensive information for proper installation, operation, and troubleshooting.

Inquiry & Contact Guidance
To explore how the DN25 Manual Cast Steel Thermodynamic Steam Trap can enhance your steam system efficiency, connect with our technical specialists today. We'll provide detailed specifications, discuss your specific application requirements, and develop a solution tailored to your needs. Let our expertise guide you toward optimal steam system performance.

DESIGN FEATURES AND ADVANTAGES: THE ATD542 SERIES THERMODYNAMIC STEAM TRAP FEATURES A CARBON STEEL VALVE BODY AND STAINLESS STEEL 3CR13 MATERIAL FOR THE DISC AND SEAT, WHICH UNDER-GO SPECIAL HEAT TREATMENT FOR WEAR RESISTANCE AND HIGH-TEMPERATURE EN-DURANCE. IT AUTOMATICALLY DISCHARGES CONDENSATE, AIR, AND OTHER NON-CON-DENSABLE GASES WHILE PREVENTING STEAM LEAKAGE. SUITABLE FOR SMALL-SCALE DRAINAGE IN STEAM PIPELINE NETWORKS AND EQUIPMENT.

WORKING PRINCIPLE: THE THERMODYNAMIC STEAM TRAP CONTAINS A MOVABLE DISC. WHEN STEAM AND CONDENSATE PASS THROUGH THE DRAINAGE HOLE AT THE LOWER END OF THE DISC,THE RAPID FLOW AND FLASH EVAPORATION OF THE CONDENSATE CREATE A PRESSURE DIFFERENCE ABOVE AND BELOW THE ACTUATING DISC.THIS INITIATES THE OPENING AND CLOSING OF THE DISC, THEREBY ACHIEVING THE PURPOSE OF BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

DURING STARTUP, THE INLET PRESSURE ACTS ON THE BOTTOM SIDE OF THE DISC, LIFT-ING IT TO IMMEDIATELY DISCHARGE AIR AND COLDER CONDENSATE.

WHEN HOT CONDENSATE (SLIGHTLY BELOW STEAM TEMPERATURE) FLOWS THROUGH THE STEAM TRAP, THE PRESSURE DROP GENERATES FLASH STEAM. THE HIGH-SPEED FLASH .STEAM CREATES A LOW-PRESSURE ZONE BENEATH THE DISC, PRESSING IT AGAINST BOTH THE INNER AND OUTER SEAT RINGS.SIMUL TANEOUSLY, THE ACCUMU-LATED FLASH STEAM ABOVE THE DISC ALSO FORCES IT AGAINST THE INNER AND OUTER SEAT RINGS.

AS THE TOP COVER DISSIPATES HEAT, THE FLASH STEAM ABOVE THE DISC CONDENS-ES,CAUSING PRESSURE TO DROP. THE DISC THEN LIFTS AGAIN TO DISCHARGE CONDENSATE. THIS WORKING CYCLE REPEATS CONTINUOUSLY

Model	Caliber	A	B	C	PMO	Weight
ATD542/ATD542H	1/2”	80	47	63	42	1.08
		3/4”	90	48	64	42	1.28
		1”	97	57	65	42	1.84
ATD542F/ATD542HF	DN15	150	47	63	42	2.08
		DN20	150	58	64	42	2.74
		DN25	160	57	65	42	3.76
