Good Anti-Fouling Properties Stable and Sensitive Steam Trap Valve Compact Structure Ball Float Steam Traps

Good Anti-Fouling Properties Stable and Sensitive Steam Trap Valve Compact Structure Ball Float Steam Traps - Advanced Steam Management Solution

Introduction
In modern industrial processes, efficient steam management is crucial for operational success. Our ball float steam traps represent the pinnacle of steam system technology, combining exceptional anti-fouling capabilities with reliable performance. These innovative steam trap valves deliver consistent operation while maintaining a compact footprint, making them ideal for facilities where space optimization is essential.

Product Overview
The advanced ball float steam trap valve system incorporates cutting-edge design principles to ensure maximum efficiency in steam systems. By utilizing precision engineering and high-quality materials, these steam traps effectively manage condensate removal while preventing live steam loss. The compact structure of our ball float steam traps allows for seamless integration into existing steam systems, providing a sophisticated solution for various industrial applications.

Advanced Design Features
Our steam trap valve's innovative design incorporates specialized anti-fouling properties that significantly reduce maintenance requirements. The ball float mechanism operates with remarkable sensitivity, responding quickly to changing conditions while maintaining stable performance. The compact structure optimizes space utilization without compromising on functionality or reliability.

Features & Benefits
The exceptional anti-fouling properties of our steam trap valves represent a significant advancement in steam system management. This feature substantially reduces maintenance intervals and extends operational life, resulting in improved cost efficiency for facilities. The stable and sensitive operation ensures consistent performance across varying load conditions, while the compact structure facilitates installation in space-constrained environments.

Performance Advantages
Our ball float steam traps excel in maintaining optimal steam system efficiency through precise condensate handling. The innovative design prevents steam loss while ensuring rapid condensate discharge, contributing to overall energy savings. The robust construction and carefully selected materials enhance durability and reliability, making these steam traps a long-term investment in system performance.

Applications & Use Cases
These advanced steam trap valves find extensive application across diverse industrial sectors. From chemical processing facilities to food manufacturing plants, their reliable performance makes them indispensable in steam-dependent operations. The compact structure and anti-fouling properties make them particularly valuable in industries where space is limited and maintenance accessibility is challenging.

Industry-Specific Solutions
Manufacturing facilities benefit from the stable operation and sensitive response of our steam trap valves in maintaining precise process temperatures. The anti-fouling design proves especially valuable in environments with challenging condensate conditions, while the compact structure allows for efficient installation in complex piping systems.

Quality Control & Compliance
Each ball float steam trap undergoes rigorous quality testing to ensure consistent performance and reliability. Our manufacturing processes adhere to international standards, providing customers with confidence in product quality and safety. Regular quality audits and continuous improvement initiatives maintain our high standards of excellence.

Customization & Branding Options
Understanding that different applications require specific solutions, we offer customization options to meet unique operational requirements. Our engineering team works closely with clients to develop tailored solutions that address specific challenges while maintaining the core benefits of our steam trap technology.

Packaging & Logistics Support
Our comprehensive packaging solutions ensure safe delivery of steam trap valves to any global destination. The robust packaging design protects the precision components during transportation while optimizing shipping efficiency. Our logistics team provides full support for international shipments, ensuring smooth delivery processes.

Why Choose Us
With years of experience in steam system technology, we have established ourselves as a trusted provider of high-quality steam trap solutions. Our commitment to innovation, quality, and customer satisfaction drives continuous improvement in product design and service delivery. The combination of advanced technology, reliable performance, and comprehensive support makes us an ideal partner for steam system solutions.

Inquiry & Contact Guidance
Discover how our ball float steam traps can enhance your steam system efficiency and reduce operational costs. Our technical experts are ready to discuss your specific requirements and provide detailed information about specifications and customization options. Let us help you optimize your steam system performance with our advanced steam trap technology. Reach out to our team for professional consultation and solution development tailored to your operational needs.

DESIGN FEATURES AND ADVANTAGES: ADOPTING A FULLY BALANCED DOUBLE-SEAT DESIGN, IT O ERS LARGE DISPLACE-MENT, EXCELLENT STABILITY,AND QUICK RESPONSE. THE SELF-CENTERING FLOAT BALL (VS.DOMESTIC HINGE-TYPE) ENSURES SMOOTHER MOVEMENT AND REDUCED WEAR. THE AIR VENT VALVE EMPLOYS IMPORTED BIMETALLIC STRIPS FOR ENHANCED SAFETY RELIABILITY. STEM: 440B STEEL ({}HRC54)| SEAT: 1CR17NI2 CONTROLLED HARDNESS DIFFERENTIAL BETWEEN COMPONENTS OPTIMIZES SEAL INTEGRITY AND EXTENDS SERVICE LIFE.A BOTTOM-MOUNTED FILTER AT THE CONDENSATE INLET COLLECTS SEDIMENT ENTER-ING THE FLOW PATH.ITS SELF-CLEANING DESIGN RESISTS CLOGGING FROM DEBRIS AND ENSURES CHAMBER CLEANLINESS-ENABLING RELIABLE OPERATION IN HIGH-CON-TAMINANT ENVIRONMENTS.

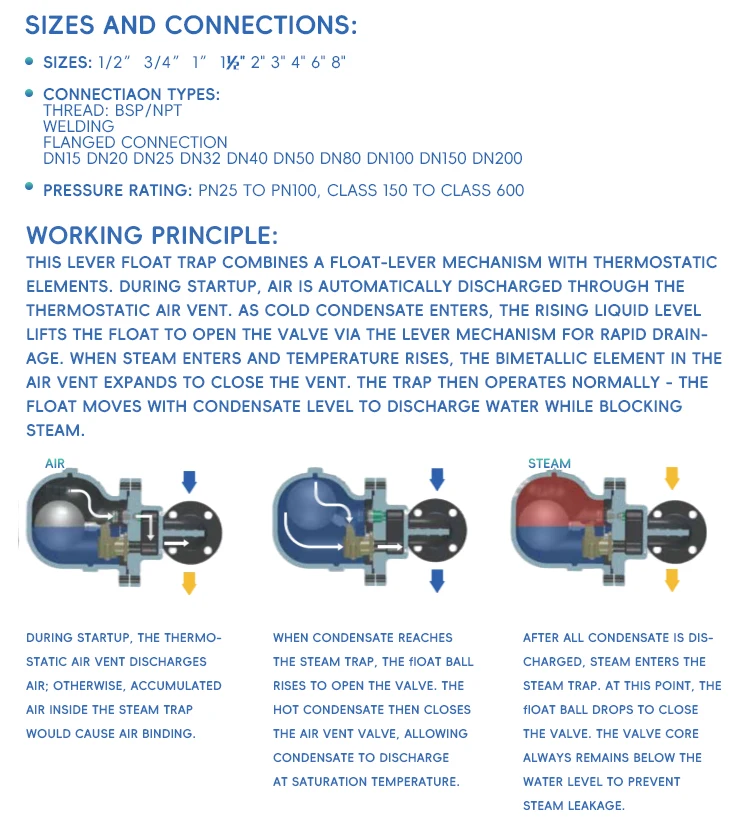

WORKING PRINCIPLE: THIS LEVER FLOAT TRAP COMBINES A FLOAT-LEVER MECHANISM WITH THERMOSTATIC ELEMENTS. DURING STARTUP, AIR IS AUTOMATICALLY DISCHARGED THROUGH THE THERMOSTATIC AIR VENT. AS COLD CONDENSATE ENTERS, THE RISING LIQUID LEVEL LIFTS THE FLOAT TO OPEN THE VALVE VIA THE LEVER MECHANISM FOR RAPID DRAIN-AGE. WHEN STEAM ENTERS AND TEMPERATURE RISES, THE BIMETALLIC ELEMENT IN THE AIR VENT EXPANDS TO CLOSE THE VENT. THE TRAP THEN OPERATES NORMALLY-THE FLOAT MOVES WITH CONDENSATE LEVEL TO DISCHARGE WATER WHILE BLOCKING STEAM.

Working Conditions
Carbon Steel
Valve Body Design Conditions		PN50
Maximum Allowable Pressure	PMA	32Bar@400℃
Maximum Allowable Temperature	TMA	400℃@32Bar
Stainless Steel
Valve Body Design Conditions		PN50
Maximum Allowable Pressure	PMA	32Bar@260℃
Maximum Allowable Temperature	TMA	500℃@26Bar

FEATURES:

HARDENED ALLOY STEEL DISC & SEAT FOR HIGH WEAR RESISTANCE

INTEGRATED BIMETALLIC THERMOSTATIC AIR VENT WITH IN-SERVICE MAINTENANCE CAPABILITY

INTERNAL EROSION-RESISTANT BAFFLE PROTECTS VALVE FLOW CHANNELS

INLET IMPACT BAFFLE FOR WATER HAMMER PROTECTION

COST-EFFECTIVE DUCTILE IRON CONSTRUCTION FOR LOW-PRESSURE APPLICATIONS
