Adjustable Bimetallic Thermostatic Steam Trap Stainless Steel & Cast Iron Manual Power General Application Valve

Adjustable Bimetallic Thermostatic Steam Trap Stainless Steel & Cast Iron Manual Power General Application Valve - Advanced Steam System Efficiency Solution

Introduction
The Adjustable Bimetallic Thermostatic Steam Trap represents a breakthrough in steam system management, combining robust construction with precise temperature control capabilities. As a critical component in industrial steam networks, this innovative valve system integrates advanced bimetallic technology with manual adjustment features to deliver optimal condensate management and steam conservation. Engineered using premium stainless steel and cast iron materials, this versatile steam trap ensures reliable performance across diverse industrial applications.

Advanced Design and Engineering Excellence
Our adjustable bimetallic thermostatic steam trap showcases sophisticated engineering principles in steam system control. The thoughtfully designed bimetallic element responds dynamically to temperature variations, while the manual adjustment capability allows operators to fine-tune performance based on specific process requirements. The fusion of stainless steel and cast iron construction provides exceptional durability while maintaining cost-effectiveness for general industrial applications.

Superior Material Construction
The strategic combination of stainless steel and cast iron in this steam trap valve creates an optimal balance of corrosion resistance and structural integrity. The stainless steel components ensure longevity in challenging environments, while the cast iron elements provide robust mechanical strength and excellent thermal properties. This careful material selection results in a steam trap that maintains consistent performance even under demanding operational conditions.

Features and Performance Benefits
The adjustable bimetallic thermostatic steam trap incorporates several innovative features that enhance its operational efficiency. The manual power adjustment mechanism enables precise control over condensate discharge rates, allowing operators to optimize system performance based on varying process demands. The bimetallic element provides reliable temperature-responsive operation, automatically adjusting to steam temperature fluctuations to prevent steam loss while ensuring efficient condensate removal.

Advanced Temperature Control
The bimetallic thermal element demonstrates exceptional sensitivity to temperature changes, providing rapid response times and accurate steam trap operation. This sophisticated temperature control mechanism helps maintain optimal steam system efficiency by preventing both condensate backing and live steam loss. The manual adjustment feature allows for fine-tuning of the operating parameters, ensuring optimal performance across different operating conditions.

Industrial Applications and Versatility
This general application valve proves invaluable across numerous industrial sectors. From chemical processing and food manufacturing to textile production and building heating systems, the adjustable bimetallic thermostatic steam trap delivers reliable performance. Its versatile design makes it particularly suitable for applications requiring precise temperature control and efficient condensate management.

Process Industry Solutions
In process industries, where steam quality and system efficiency directly impact production outcomes, this steam trap valve demonstrates exceptional reliability. The combination of manual adjustability and automatic temperature response ensures consistent steam quality while minimizing energy losses. Plant engineers appreciate the ability to optimize trap performance based on specific process requirements.

Quality Assurance and Compliance
Every adjustable bimetallic thermostatic steam trap undergoes rigorous quality control procedures throughout the manufacturing process. Our production facilities maintain strict adherence to international quality standards, ensuring consistent product performance and reliability. Quality assurance teams conduct comprehensive testing under various operating conditions to verify proper functionality and durability.

Customization Options
Understanding that different industries have unique requirements, we offer customization options for our steam trap valves. Our engineering team can collaborate with clients to modify specific design elements, ensuring the steam trap meets particular application needs. Reach out to discuss your specific requirements and explore customization possibilities.

Installation and Maintenance Support
To ensure optimal performance and longevity of the adjustable bimetallic thermostatic steam trap, we provide comprehensive installation guidance and maintenance support. Our technical team can assist with proper sizing, installation recommendations, and maintenance schedules. This support helps maximize the operational life and efficiency of your steam system.

Why Choose Our Steam Trap Solution
Our adjustable bimetallic thermostatic steam trap stands out for its exceptional build quality, precise control capabilities, and versatile application potential. The combination of premium materials, advanced engineering, and comprehensive support services creates a superior steam system solution. Our commitment to product excellence and customer satisfaction ensures reliable performance and long-term value for your steam system investment.

Contact and Technical Support
For detailed technical specifications, customization options, and expert application guidance, we invite you to connect with our specialized steam system consultants. Our team stands ready to provide comprehensive information and support to help you optimize your steam system efficiency. Reach out today to explore how our adjustable bimetallic thermostatic steam trap can enhance your industrial processes.

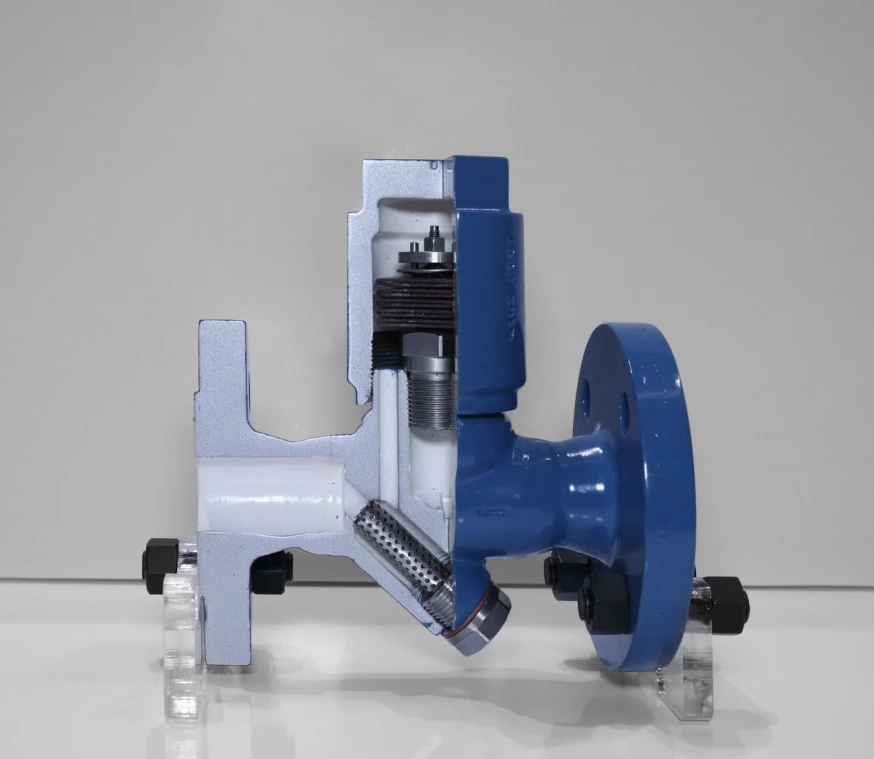

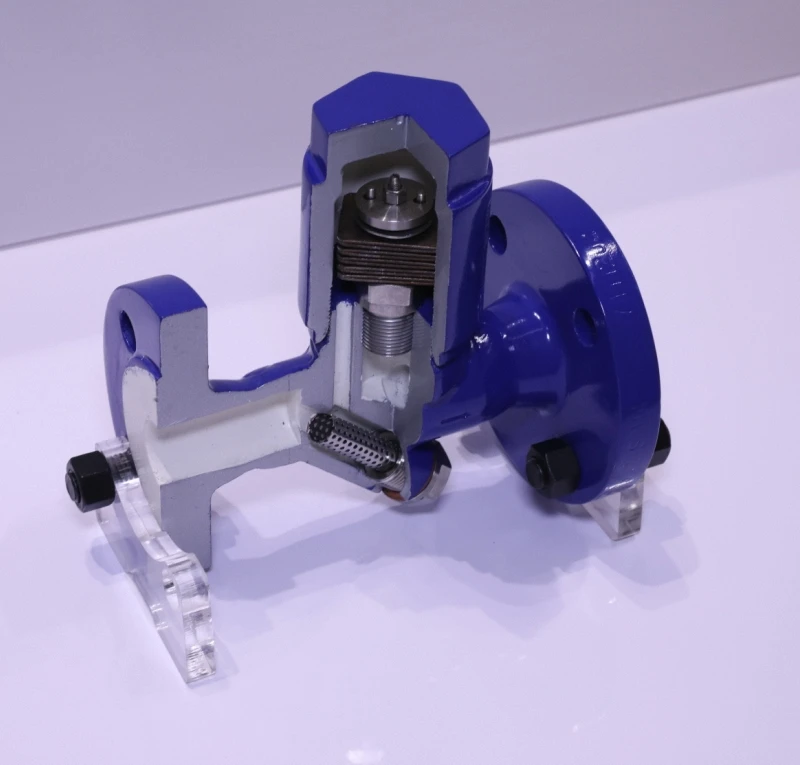

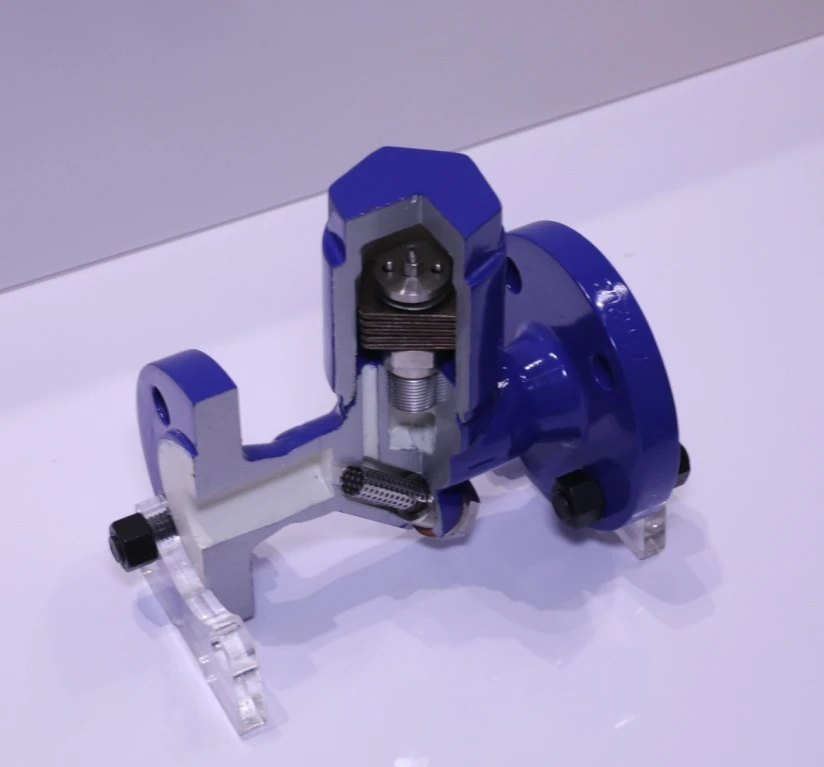

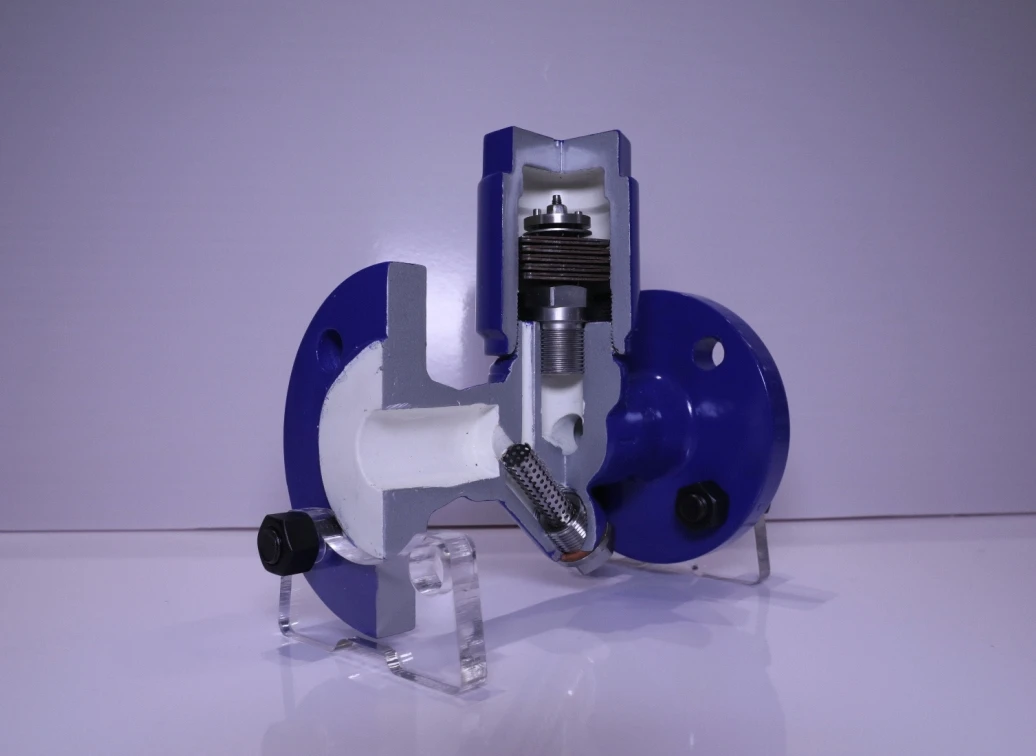

DESIGN FEATURES AND ADVANTAGES: REVERSE-SEAL DESIGN REDUCES STEM EXPOSURE RISK, ENHANCES DURABILITY, EN-SURES SMOOTHER VALVE OPERATION. A BOTTOM-MOUNTED FILTER AT THE CONDENSATE INLET FEATURES A SELF-CLEANING DESIGN THAT RESISTS CLOGGING FROM DEBRIS, ENSURES CHAMBER CLEANLINESS, AND ALLOWS EASY DISASSEMBLY. THE SEAT AND STEM UTILIZE 3CR13 ALLOY WITH CONTROLLED HARDNESS DIFFEREN-TIAL, ENHANCING SEAL INTEGRITY AND EXTENDING SERVICE LIFE. INTERNATIONALLY SOURCED BIMETALLIC VALVE DISC ENSURES PRECISE TEMPERATURE CONTROL WITH HIGH FATIGUE RESISTANCE.

WORKING PRINCIPLE: THE MAIN COMPONENT OF A THERMODYNAMIC STEAM TRAP IS A BIMETALLIC TEM-PERATURE-SENSING ELEMENT, WHICH UNDERGOES THERMAL DEFORMATION IN RE-SPONSE TO THE TEMPERATURE FLUCTUATIONS OF CONDENSATE, THEREBY DRIVING THE VALVE CORE TO OPEN OR CLOSE THE VALVE. THE STEAM TRAP CONTROLLER IS EQUIPPED WITH AN ADJUSTMENT BOLT, ALLOWING THE OPERATING TEMPERATURE TO BE REGULATED AS NEEDED. WHEN THE SYSTEM STARTS UP, LOW-TEMPERATURE CON-DENSATE FORMS IN THE PIPELINE, CAUSING THE BIMETALLIC STRIP TO REMAIN FLAT.UNDER THE SPRING FORCE, THE VALVE CORE KEEPS THE VALVE IN THE OPEN POSI- TION. AS THE CONDENSATE TEMPERATURE GRADUALLY RISES, THE BIMETALLIC TEM-PERATURE-SENSING ELEMENT BEGINS TO BEND AND DEFORM, PUSHING THE VALVE CORE TOWARD THE CLOSED POSITION.BY CONTROLLING THE VALVE'S OPENING AND CLOSING IN RESPONSE TO CONDENSATE TEMPERATURE CHANGES, IT EFFECTIVELY VENTS AIR WHILE

WHEN THE SYSTEM IS INITIALLY STARTED,LOW-TEMPERATURE CONDENSATE FORMS IN THE PIPELINE. THE BIMETALLIC STRIP REMAINS FLAT, AND THE VALVE CORE IS PUSHED BY THE SPRING FORCE, KEEPING THE VALVE IN THE OPEN POSITION.AS THE CONDENSATE TEMPERATURE GRADUALLY RISES, THE TEMPERATURE-SENSITIVE BIMETALLIC STRIP BEGINS TO BEND AND DEFORMS, PUSHING THE VALVE CORE-TOWARD THE CLOSED POSITION. THE STEAM TRAP STARTS TO CLOSE BEFORE THE CONDENSATE REACHES SATURATION TEMPERATURE. THE BIMETALLIC STRIP CONTROLS THE VALVE'S OPENING AND CLOSING IN RESPONSE TO STEAM TEMPERATURE CHANGES, EFFECTIVELY BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

CHARACTERISTIC:

EXTERNALLY MOUNTED FILTER, FACILITATING EASY DISASSEMBLY AND CLEANING; AN OPTIONAL BLOWDOWN VALVE CAN BE INSTALLED TO PROTECT THE STEAM TRAP FROM CONTAMINATION.

CHECK FUNCTION AVAILABLE.

BUILT-IN ANTI-CORROSION, WATER HAMMER-RESISTANT BIMETALLIC CONTROLLER THAT IS ALSO FREEZE-RESISTANT.

AUTOMATICALLY VENTS AIR AND NON-CONDENSABLE GASES, ACCELERATING EQUIP- MENT WARM-UP.

QUICK RESPONSE WITH NO THERMAL INERTIA FROM METALLIC COMPONENTS.

DISCHARGES CONDENSATE BELOW SATURATION TEMPERATURE, REDUCING THE AMOUNT OF SECONDARY STEAM.

Dimensions and weights (approximate) in mm and kg
Size and Weight			Connection Method
				Flange Connection					Thread
mm			15	20	25	15	20	25
Caliber	Inch	1/2	3/4	1	1/2	3/4	1
Size（mm）	L	150	150	160	128	131	140
		B	108					108
		C	54					54
Approximate weight	（kg）	3.2	3.7	4.2	1.7	1.7	1.6

Size and Weight			Connection Method
				Flange Connection					Thread
mm			15	20	25	15	20	25
Caliber	Inch	1/2	3/4	1	1/2	3/4	1
Size（mm）	L	70	78	162	80	80	80
		B	108					108
		C	54					54
Approximate weight	（kg）	1.7	1.7			2.2	2.3	2.4
(Structural length and flange can be customized according to customer requirements)
