Sealing Prevents Backflow of Media Check Valve Wear-Resistant Easy to Disassemble Wafer Check Valve

Sealing Prevents Backflow of Media Check Valve Wear-Resistant Easy to Disassemble Wafer Check Valve - Advanced Flow Control Solution

Introduction
The Sealing Prevents Backflow of Media Check Valve represents a significant advancement in flow control technology, combining superior sealing performance with easy maintenance features. This wear-resistant wafer check valve delivers reliable backflow prevention while offering straightforward disassembly for maintenance operations. Engineered to meet the demanding requirements of modern industrial applications, this valve solution provides exceptional value for facilities seeking to optimize their fluid control systems.

Product Overview
Our wafer check valve employs innovative sealing technology to effectively prevent media backflow while maintaining system integrity. The wear-resistant design ensures extended operational life even in challenging environments. The easy-to-disassemble configuration allows for quick maintenance and inspection, reducing downtime and operational costs. Each component is precision-engineered to work in harmony, delivering consistent performance across various industrial applications.

Advanced Features & Benefits
The superior sealing mechanism of our wafer check valve incorporates advanced materials that resist wear and degradation over time. This robust construction translates into fewer maintenance requirements and enhanced operational reliability. The innovative design allows for smooth flow characteristics, minimizing pressure drop and energy consumption in your system.

The easy disassembly feature sets this check valve apart from conventional options. Maintenance personnel can quickly access internal components without specialized tools, significantly reducing maintenance time and associated costs. This accessibility doesn't compromise the valve's sealing integrity, as the design includes precise alignment mechanisms that ensure proper reassembly every time.

Industrial Applications & Use Cases
This versatile wafer check valve finds extensive application across numerous industries where reliable backflow prevention is crucial. Process plants benefit from its reliable sealing properties and easy maintenance features, while water treatment facilities appreciate its wear-resistant characteristics. The valve's compact wafer design makes it particularly suitable for installations where space is at a premium.

Manufacturing facilities rely on these valves for their critical process lines, where preventing reverse flow is essential for both safety and efficiency. The robust construction proves particularly valuable in applications involving challenging media, where conventional valves might face premature wear or failure.

Quality Control & Compliance Standards
Each wafer check valve undergoes rigorous quality control procedures throughout the manufacturing process. Our quality management system ensures consistent product performance and reliability. The valves are manufactured in compliance with relevant industry standards, and our facility maintains necessary certifications to serve global markets.

Customization Capabilities
Understanding that different applications require specific solutions, we offer customization options for our wafer check valves. Our engineering team can adapt various aspects of the valve design to meet particular operational requirements. From material selection to special coating options, we can tailor solutions to match your specific application needs.

Installation & Technical Support
Our commitment to customer success extends beyond product delivery. We provide comprehensive technical documentation and installation guidance to ensure optimal valve performance. Our technical support team stands ready to assist with installation questions and operational considerations. Contact our specialists for detailed specifications and installation requirements specific to your application.

Packaging & Logistics Solutions
Each valve receives careful packaging attention to ensure safe transport and arrival in perfect condition. Our packaging methods protect critical components while facilitating easy handling and storage. We coordinate with reliable logistics partners to ensure timely delivery to global destinations, with full tracking capability throughout the shipping process.

Why Choose Our Wafer Check Valve
The combination of superior sealing technology, wear-resistant construction, and easy maintenance features makes our wafer check valve an excellent choice for demanding applications. Our years of experience in valve manufacturing, coupled with continuous innovation in design and materials, result in products that consistently exceed performance expectations.

The easy-to-disassemble feature provides significant long-term value by reducing maintenance costs and system downtime. Our comprehensive support services ensure you receive maximum benefit from your investment in our valve technology.

Contact & Inquiry Information
We invite you to explore how our wafer check valve solutions can benefit your operations. Our technical specialists are ready to discuss your specific requirements and provide detailed information about performance capabilities and customization options. Reach out to begin a conversation about optimizing your flow control systems with our advanced valve technology.

Simply submit your inquiry through our website or contact our technical sales team directly to receive prompt assistance with your valve selection process. Let us help you find the perfect flow control solution for your application needs.

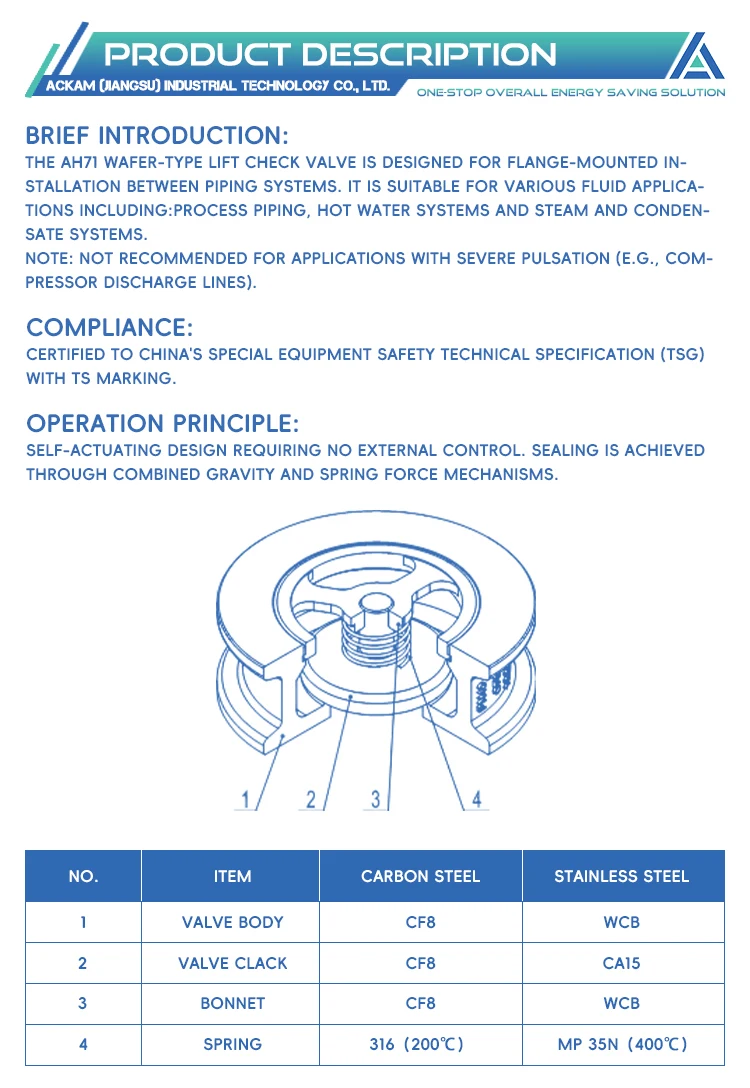

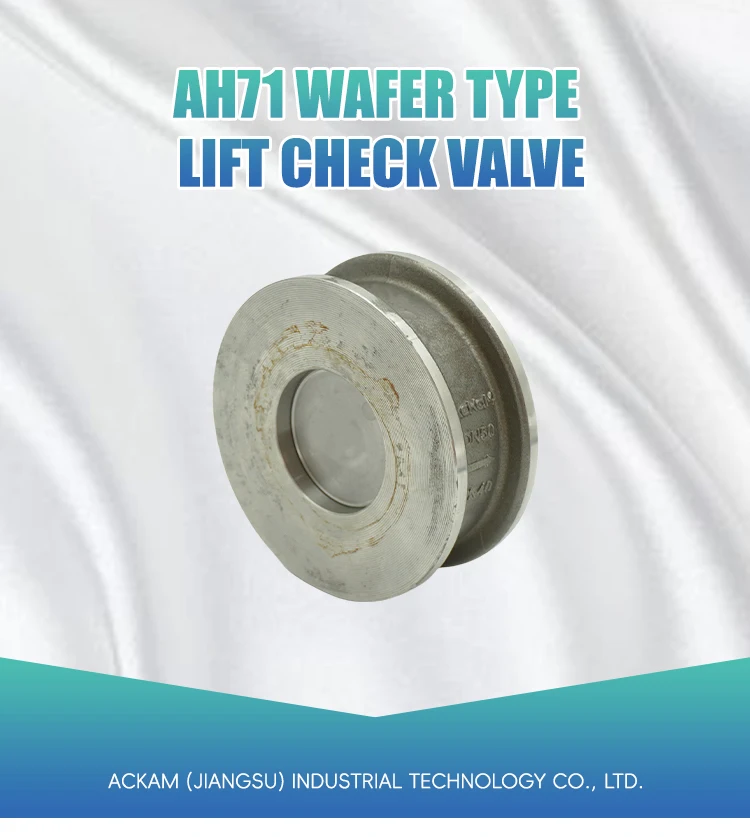

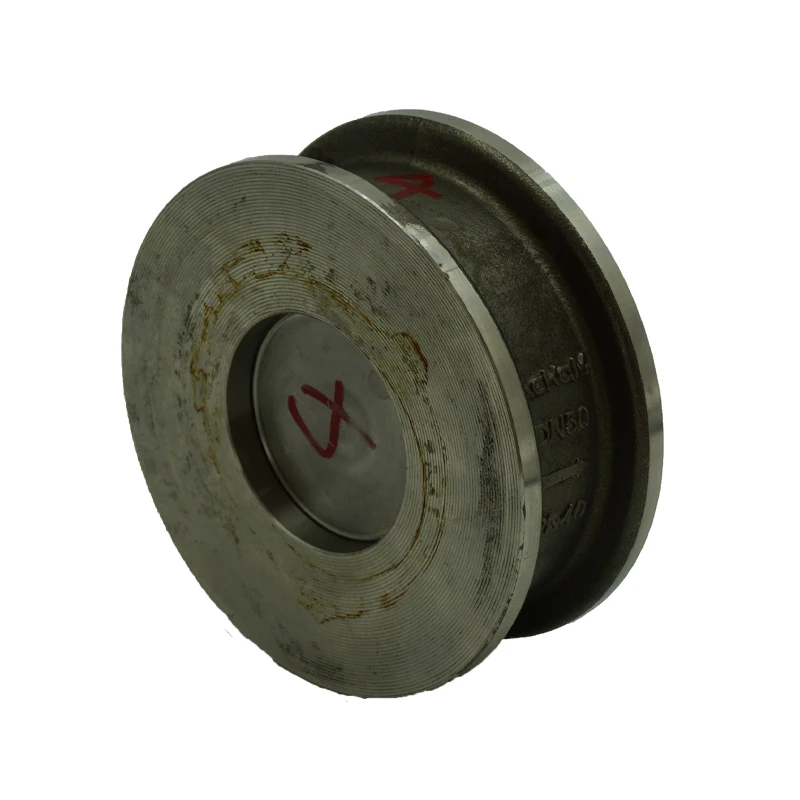

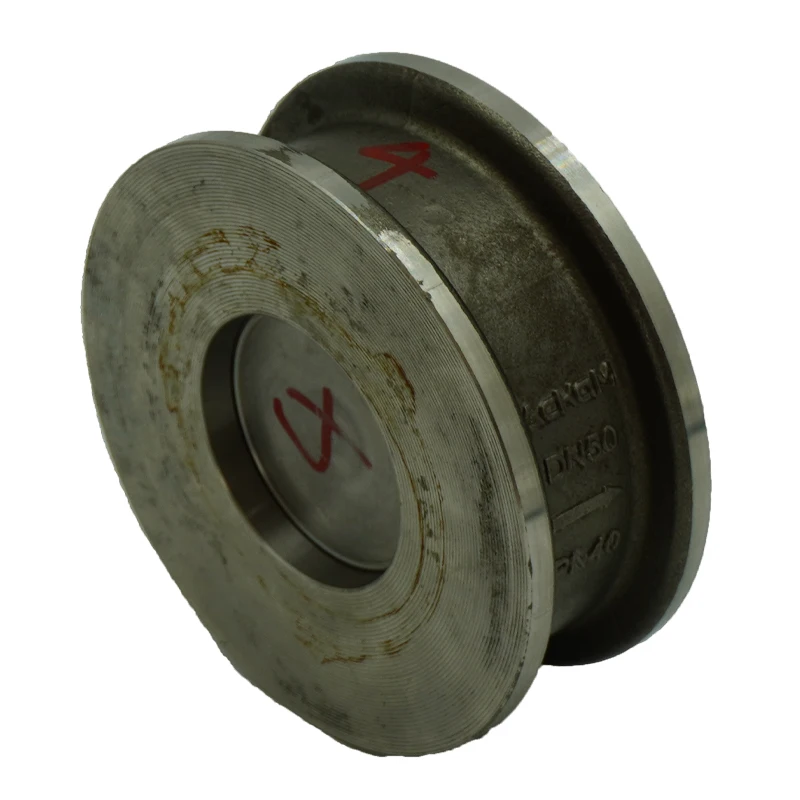

BRIEF INTRODUCTION: THE AH71 WAFER-TYPE LIFT CHECK VALVE IS DESIGNED FOR FLANGE-MOUNTED IN-STALLATION BETWEEN PIPING SYSTEMS. IT IS SUITABLE FOR VARIOUS FLUID APPLICA-TIONS INCLUDING:PROCESS PIPING, HOT WATER SYSTEMS AND STEAM AND CONDEN-SATE SYSTEMS.

NOTE:

NOT RECOMMENDED FOR APPLICATIONS WITH SEVERE PULSATION (E.G.,COM-PRESSOR DISCHARGE LINES).

COMPLIANCE: CERTIFIED TO CHINA'S SPECIAL EQUIPMENT SAFETY TECHNICAL SPECIFICATION(TSG)WITH TS MARKING.

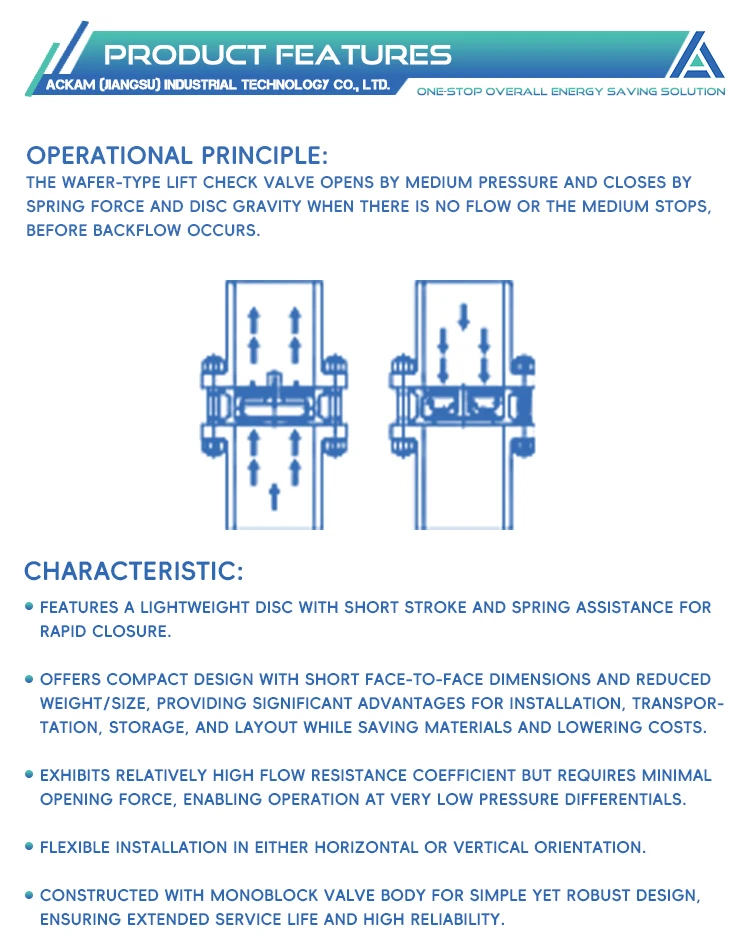

OPERATION PRINCIPLE: SELF-ACTUATING DESIGN REQUIRING NO EXTERNAL CONTROL.SEALING IS ACHIEVEDTHROUGH COMBINED GRAVITY AND SPRING FORCE MECHANISMS.

CHARACTERISTIC:FEATURES A LIGHTWEIGHT DISC WITH SHORT STROKE AND SPRING ASSISTANCE FOR RAPID CLOSURE. OFFERS COMPACT DESIGN WITH SHORT FACE-TO-FACE DIMENSIONS AND REDUCED WEIGHT/SIZE,PROVIDING SIGNIFICANT ADVANTAGES FOR INSTALLATION, TRANSPOR-TATION,STORAGE, AND LAYOUT WHILE SAVING MATERIALS AND LOWERING COSTS.EXHIBITS RELATIVELY HIGH FLOW RESISTANCE COEFFICIENT BUT REQUIRES MINIMAL OPENING FORCE, ENABLING OPERATION AT VERY LOW PRESSURE DIFFERENTIALS.FLEXIBLE INSTALLATION IN EITHER HORIZONTAL OR VERTICAL ORIENTATION.CONSTRUCTED WITH MONOBLOCK VALVE BODY FOR SIMPLE YET ROBUST DESIGN,ENSURING EXTENDED SERVICE LIFE AND HIGH RELIABILITY.

Size/Weight(Approximate) mm/kg
PN16/ 25/40	DN	A	B	C	D	E	weight
		15	16	52	15	52	27	0.17
		20	19	62	19	62	36	0.26
		25	22	72	24	72	42	0.39
		32	26	83	31	83	50	0.64
		40	31.5	93	38	93	60	0.86
		50	40	108	48	108	76	1.31
		65	46	128	62	128	90	2.02
		80	50	142	76	142	105	2.74
		100	60	168	98.5	168	130	4.08
ANSI 150	15	25	46	15	46	24	0.22
		20	31.5	56	19	56	30	0.34
		25	35.5	65	24	65	36	0.48
		32	40	74	31	74	43	0.75
		40	45	84	38	84	56	1.06
		50	56	103	48	103	68	1.72
		65	63	122	62	122	75	2.80
		80	71	135	76	135	105	3.00
		100	80	173	98.5	173	130	4.98
ANSI 300	15	25	52	15	52	24	0.24
		20	31.5	65	19	65	30	0.39
		25	35.5	72	24	72	36	0.53
		32	40	81	31	81	43	0.80
		40	45	94	38	94	56	1.20
		50	56	110	48	110	68	1.81
		65	63	128	62	128	75	3.00
		80	71	148	76	148	105	3.56
		100	80	179	98.5	179	130	5.80
