Non Return Valve Swing Type: Complete Guide to Features, Benefits and Applications

The exceptional sealing performance of the non return valve swing type sets it apart from other backflow prevention solutions in the market. The valve's sealing mechanism relies on the precise engineering of the disc and seat interface, which creates a reliable barrier against reverse flow under various pressure conditions. When the valve closes, the disc swings into position against the valve seat, forming a tight seal that prevents even minimal backflow that could compromise system integrity or cause contamination issues. The sealing effectiveness is enhanced by the weight of the disc itself, which provides additional sealing force through gravitational assistance, particularly in horizontal installations. Modern swing check valves incorporate advanced seat materials and surface treatments that ensure consistent sealing performance throughout the valve's operational life. The seat design often features resilient materials such as EPDM or Viton elastomers that conform to the disc surface, creating an effective seal even when minor wear occurs over time. For applications requiring metal-to-metal sealing, precision-machined surfaces provide reliable sealing without the need for soft seat materials that might degrade under extreme temperature or chemical exposure conditions. The sealing performance directly translates to significant cost savings for facility operators by preventing product loss, contamination, and equipment damage that can result from backflow incidents. Inadequate backflow prevention can lead to costly product waste, environmental compliance issues, and potential safety hazards that far exceed the initial investment in quality swing check valves. The reliable sealing performance of the non return valve swing type provides peace of mind for operators in critical applications such as potable water systems, chemical processing, and pharmaceutical manufacturing where contamination prevention is paramount. Additionally, the excellent sealing characteristics help maintain system pressure integrity, which is essential for optimal performance of downstream equipment and processes. The consistent sealing performance reduces the need for frequent valve replacement or system repairs, contributing to improved operational efficiency and reduced maintenance costs over the valve's service life.

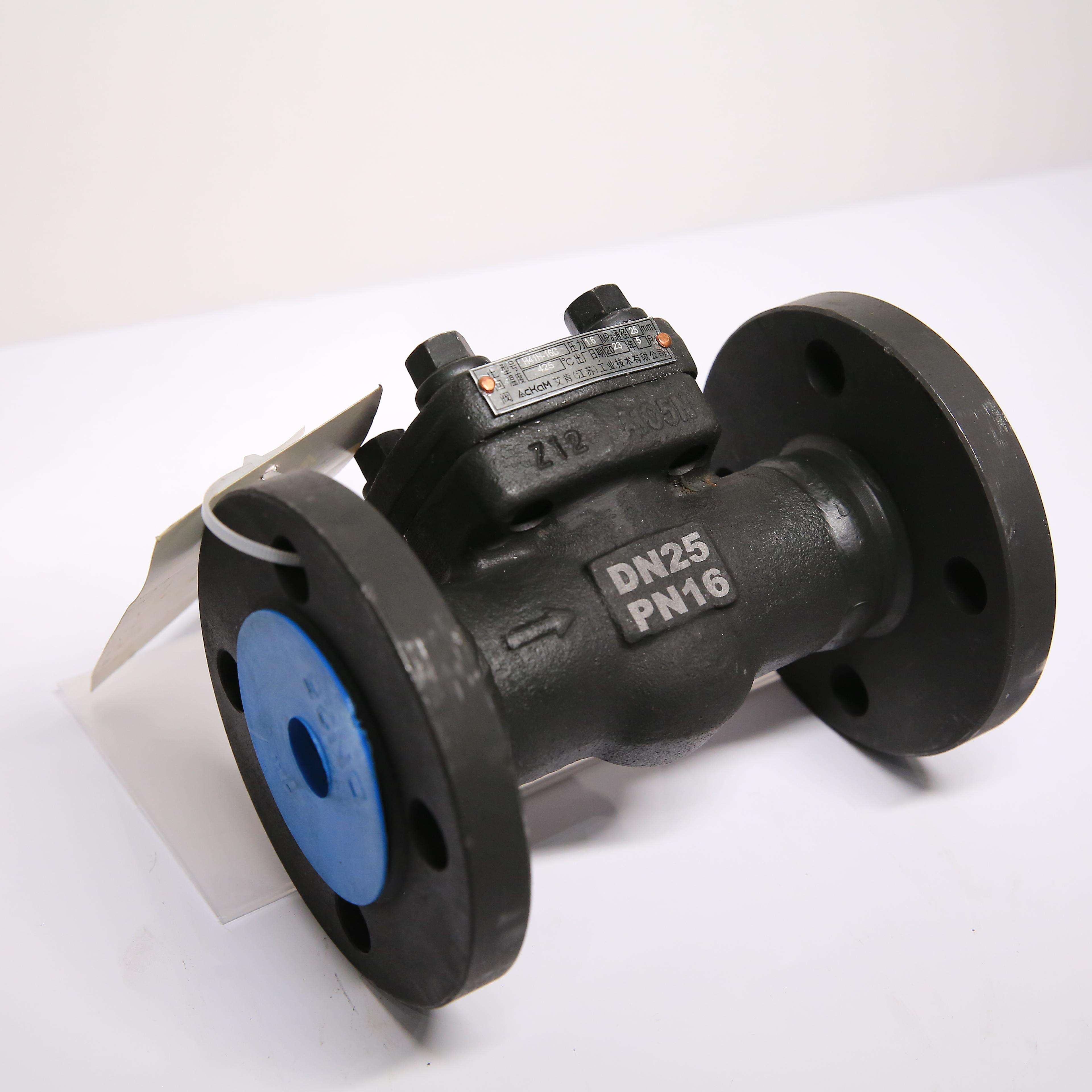

The non return valve swing type features an ingeniously simple design that minimizes maintenance requirements while maximizing operational reliability, making it an ideal choice for applications where continuous operation is critical. The fundamental simplicity of the swing check valve mechanism, consisting primarily of a hinged disc that responds to flow conditions, eliminates the complexity associated with spring-loaded or pilot-operated check valves. This straightforward design philosophy results in fewer potential failure points and reduces the likelihood of operational issues that could disrupt system performance. The maintenance advantages begin with the valve's self-cleaning action during normal operation. As the disc swings open and closed with flow variations, it naturally clears debris and sediment that might otherwise accumulate and interfere with proper valve function. This self-cleaning characteristic is particularly beneficial in applications involving fluids that may contain particulates or suspended solids that could cause other valve types to malfunction or require frequent cleaning interventions. When maintenance is required, the accessible design of swing check valves facilitates inspection and service procedures without requiring complete valve removal from the pipeline in many installations. The bolted bonnet construction allows maintenance personnel to access internal components for inspection, cleaning, or replacement while leaving the valve body in place, significantly reducing maintenance time and associated system downtime. The operational simplicity extends to the valve's response characteristics, which are predictable and consistent under varying flow conditions. Unlike complex valve systems that may require calibration or adjustment, the non return valve swing type operates based on fundamental fluid dynamics principles that remain constant throughout its service life. This predictable behavior allows operators to anticipate valve performance and plan maintenance activities more effectively. The durability of the simple mechanical design translates to extended service intervals between maintenance activities. With proper material selection for the specific application, swing check valves can operate reliably for many years without requiring significant attention beyond periodic inspection. This reliability factor is particularly valuable in remote installations or critical applications where maintenance access may be limited or where system downtime must be minimized.

The remarkable versatility of the non return valve swing type in terms of installation options and system compatibility makes it an exceptional choice for diverse industrial applications and retrofit projects. The valve's adaptable design accommodates various pipeline orientations, connection types, and system configurations, providing engineers and facility managers with flexible solutions for backflow prevention requirements. The installation versatility begins with the valve's ability to function effectively in both horizontal and vertical pipeline orientations, although horizontal installation typically provides optimal performance characteristics. In horizontal installations, gravity assists the disc closing action, while vertical installations can be accommodated with appropriate consideration for flow direction and disc weight factors. This flexibility allows the non return valve swing type to be integrated into complex piping systems where space constraints or system layout requirements dictate specific installation orientations. The comprehensive range of connection options available for swing check valves ensures compatibility with virtually any pipeline system configuration. Flanged connections provide robust, leak-proof joints suitable for high-pressure applications and facilitate easy removal for maintenance activities. Threaded connections offer cost-effective solutions for smaller diameter applications and systems where flanged connections may be impractical. Welded end connections provide permanent installation options for critical applications where joint integrity is paramount. The size range availability of the non return valve swing type spans from small residential applications to large industrial installations, with valve sizes typically ranging from half-inch to several feet in diameter. This extensive size range ensures that appropriate swing check valve solutions are available for applications ranging from individual equipment protection to main pipeline installations in major industrial facilities. The material compatibility features of swing check valves enable their use across diverse fluid handling applications. Standard materials include cast iron for general water service, carbon steel for steam and oil applications, and stainless steel for corrosive or sanitary applications. Specialized alloy options are available for extreme service conditions involving high temperatures, aggressive chemicals, or other challenging operating environments. The pressure and temperature ratings of swing check valves can be matched to virtually any system requirement, from low-pressure HVAC applications to high-pressure industrial processes. This compatibility ensures that the non return valve swing type can provide reliable backflow prevention across the full spectrum of industrial applications without compromising safety or performance standards. The retrofit compatibility of swing check valves makes them ideal for system upgrades or replacements in existing installations, as their standard dimensions and connection methods typically allow direct substitution for other valve types without requiring extensive piping modifications.
